Mazda MAZDA 6 WAGON GY 2002-06 Mazda Automatic Transmission Case & Main Control System

Mazda parts catalog

Parts > MAZDA 6 WAGON > 2002-06 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Case & Main Control System(4wd)

Search by part number:

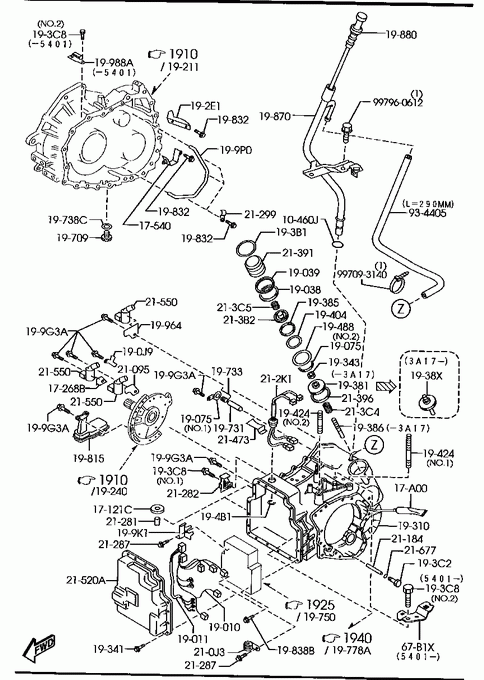

Automatic Transmission Case & Main Control System(4wd)

RING,'O'

Part Number	Qty.	Specifications	Price
9954101201	1		€ 2,06

» 17121C

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
BU8017121	2	- 021015 GY1* -112997**

» 17268B

BRACKET

Part Number	Qty.	Specifications	Price
FP0121792	2

» 17540

PASS,OIL

Part Number	Qty.	Specifications	Price
FP01192E2	1

» 17A00

SEALANT,FLUID

Part Number	Qty.	Specifications	Price
BW0119002	1

» 19010

HARNNESS,SOLENOID

Part Number	Qty.	Specifications	Price
FP0119010	1		€ 15,31

» 19011

CORD

Part Number	Qty.	Specifications	Price
FP011901X	1		€ 82,38

» 19038

RING,'O'

Part Number	Qty.	Specifications	Price
FP0119038	1		€ 5,62

» 19039

RING,'O'

Part Number	Qty.	Specifications	Price
FP0119039	1

» 19075

SPACER

Part Number	Qty.	Specifications	Price
FP0119GP2	1	ILLUST. NO.1 - 030506 GY1* -134093**
FP0119GP2A	1	ILLUST. NO.1 030506 - GY1134093-*
FP0119GP3	1	ILLUST. NO.2

» 190J9

BRACKET

Part Number	Qty.	Specifications	Price
FP01190J9	1

» 192E1

PLATE,BAFFLE

Part Number	Qty.	Specifications	Price
FP01192E1	1

» 19310

CASE,T/MISSION

Part Number	Qty.	Specifications	Price
FP0119420	1

» 19341

BOLT,ANCHOR END

Part Number	Qty.	Specifications	Price
FP0119341	20

» 19343

NUT

Part Number	Qty.	Specifications	Price
BV7119343	1

» 19381

PISTON,BAND SERVO

Part Number	Qty.	Specifications	Price
FP0119381	1	A (FP01-19-38X) - 031017 GY1* -155725**

» 19385

SEAL,PISTON

Part Number	Qty.	Specifications	Price
BV1119385	1		€ 4,21

» 19386

STEM,PISTON

Part Number	Qty.	Specifications	Price
FP0119386	1	A (FP01-19-38X) - 031017 GY1* -155725**

» 1938X

PISTON,SERVO

Part Number	Qty.	Specifications	Price
FP011938X	1	031017 - GY1155725-*

» 193B1

RING,SNAP

Part Number	Qty.	Specifications	Price
FP01193B3	1		€ 1,77

» 193C2

PLUG

Part Number	Qty.	Specifications	Price
FP01195A2	1

» 193C8

BOLT,BAFFLE PLATE

Part Number	Qty.	Specifications	Price
FP01193C8	1	ILLUST. NO.1
FP20193C8	2	AN (FP20-19-3C8A) ILLUST. NO.2 - 031017 GY1* -155725**
FP20193C8A	2	A (FP20-19-3C8B) ILLUST. NO.2 031017 - GY1155725-*

» 19404

RING,SNAP-PISTON STEM UP

Part Number	Qty.	Specifications	Price
FP0119404	1

» 19424

BOLT,STUD

Part Number	Qty.	Specifications	Price
FP0119424	1	ILLUST. NO.1
FP0319424	1	ILLUST. NO.2

» 19488

RING,SNAP

Part Number	Qty.	Specifications	Price
FP0119309	1

» 194B1

RING,SNAP

Part Number	Qty.	Specifications	Price
FX01194B3	1		€ 0,86

» 19709

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
FP0119709	1

» 19731

SHAFT,PARKING PAWL

Part Number	Qty.	Specifications	Price
FP0121472	1	- 030506 GY1* -134093**
FP0121472A	1	030506 - GY1134093-*

» 19733

SPRING,PAWL RETURN

Part Number	Qty.	Specifications	Price
FP0121474	1

» 19738C

GASKET,TUBE-EXT.

Part Number	Qty.	Specifications	Price
FP0119738	1

» 19815

STRAINER,OIL

Part Number	Qty.	Specifications	Price
FP0121500	1		€ 60,30

» 19832

BOLT,CONTROL VALVE

Part Number	Qty.	Specifications	Price
FP0119832	7

» 19838B

BOLT

Part Number	Qty.	Specifications	Price
FP0121475	1

» 19870

TUBE,OIL LEVEL

Part Number	Qty.	Specifications	Price
FP2019870A	1

» 19880

GAUGE,OIL LEVEL

Part Number	Qty.	Specifications	Price
FP2019880A	1		€ 17,28

» 19964

BRACKET

Part Number	Qty.	Specifications	Price
FP0119199	1

» 19988A

BRACKET,COUPLER

Part Number	Qty.	Specifications	Price
FP2019988	1	A (GR4H-67-B1X)

» 199G3A

BOLT,HEX.FLANGE-C/V BODY

Part Number	Qty.	Specifications	Price
FP01199G3	7

» 199K1

BRACKET

Part Number	Qty.	Specifications	Price
FP01192E3	1

» 199P0

PIPE,OIL

Part Number	Qty.	Specifications	Price
FP01199W1	1

» 21095

BRACKET

Part Number	Qty.	Specifications	Price
FP0121095	1

» 210J3

CLIP,HARNESS

Part Number	Qty.	Specifications	Price
FP01210J3	1

» 21184

PIPE,OIL

Part Number	Qty.	Specifications	Price
FP0121181	1

» 21281

CLIP

Part Number	Qty.	Specifications	Price
FP0121281	2	- 021015 GY1* -112997**

» 21282

CLIP

Part Number	Qty.	Specifications	Price
FP0121282	1

» 21287

BOLT,CONTROL VALVE CASE

Part Number	Qty.	Specifications	Price
FP0121287	10

» 21299

CLIP

Part Number	Qty.	Specifications	Price
FP0121299	3

» 212K1

CONNECTOR,SOLENOID VALVE

Part Number	Qty.	Specifications	Price
FP10212K1A	1	AN (FP10-21-2K1B) - 020901 GY1* -108980**
FP10212K1B	1	020901 - GY1108980-*	€ 79,14

» 21391

RETAINER,SERVO

Part Number	Qty.	Specifications	Price
FP0121391	1

» 21396

SEAL,LATHE CUT

Part Number	Qty.	Specifications	Price
FP0321396	1		€ 4,55

» 213B2

PISTON,ACCUMULATOR

Part Number	Qty.	Specifications	Price
FP01213B2	1

» 213C4

SPRING,SERVO

Part Number	Qty.	Specifications	Price
FP01213C4	1

» 213C5

SPRING,SERVO

Part Number	Qty.	Specifications	Price
FP01213C5	1

» 21473

POLE,PARKING

Part Number	Qty.	Specifications	Price
FP0121473	1

» 21520A

COVER,CONTROL-VALVE BODY

Part Number	Qty.	Specifications	Price
FP0121520	1	021015 - GY1112997-*

» 21550

GENERATOR,PULSE

Part Number	Qty.	Specifications	Price
FP0121550	3		€ 50,98

» 21677

RING,'O'

Part Number	Qty.	Specifications	Price
FP0121677	1

» 934405

HOSE

Part Number	Qty.	Specifications	Price
9934405150	1	L=1.5M CUT IT TO USE	€ 113,89

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093140	1		€ 3,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960612	1		€ 0,69

Automatic Transmission Case & Main Control System(4wd)
