Mazda MAZDA 6 WAGON GY 2002-06 Mazda Automatic Transmission Torque Converter, Oil Pump & Pipings 01/02 02/02

Mazda parts catalog

Parts > MAZDA 6 WAGON > 2002-06 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Torque Converter, Oil Pump & Pipings(4wd)

Search by part number:

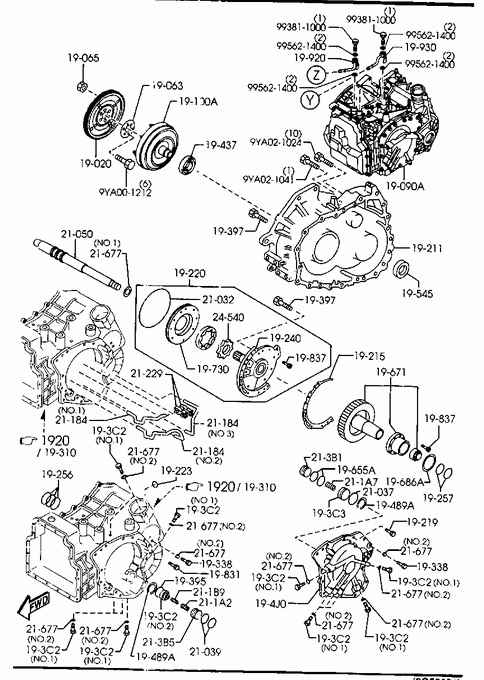

Automatic Transmission Torque Converter, Oil Pump & Pipings(4wd)

01/02
02/02

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FNE219020A	1	AN (FNE2-19-020B)	€ 87,43

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
FNE119063	1		€ 1,29

» 19065

NUT

Part Number	Qty.	Specifications	Price
FU5119065	4		€ 1,35

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
FP2019090E	1	AN (FP20-19-090F) - 020901 GY1* -108980**
FP2019090F	1	AN (FP20-19-090G) 020901 - 030201 GY1108980-124085*	€ 7989,04
FP2119090	1	AN (FP21-19-090A) 030201 - GY1124085-*

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
FP2019100	1		€ 681,09

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
FP2019210	1	AN (FP20-19-210A) - 021211 GY1* -118932**
FP2019210A	1	021211 - GY1118932-*

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
FP0119221	1		€ 5,75

» 19219

BOLT

Part Number	Qty.	Specifications	Price
FP0119219	14

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
FP2019220	1	AN (FP20-19-220A) - 021021 GY1* -113597**
FP2019220A	1	021021 - 050401 GY1113597-212776*

» 19223

SEAL,OIL

Part Number	Qty.	Specifications	Price
FP0119223	2

» 19240

COVER,OIL PUMP

Part Number	Qty.	Specifications	Price
FP2019240	1		€ 348,03

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
FP0119256	3		€ 4,28

» 19257

RING,SEAL

Part Number	Qty.	Specifications	Price
FP0119257	2		€ 9,06

» 19338

BOLT

Part Number	Qty.	Specifications	Price
FP0119338	4

» 19395

RING,'O'

Part Number	Qty.	Specifications	Price
FP0119395	1		€ 5,11

» 19397

BOLT

Part Number	Qty.	Specifications	Price
FP0119397	29

» 193C2

PLUG

Part Number	Qty.	Specifications	Price
FP01193C2	16	ILLUST. NO.1
FP03193C2	1	ILLUST. NO.2

» 193C3

PLUG

Part Number	Qty.	Specifications	Price
FP01193C4	1

» 19437

SEAL,MANUAL SHAFT LEVER

Part Number	Qty.	Specifications	Price
FP0119437	1		€ 6,81

» 19489A

RING,SNAP

Part Number	Qty.	Specifications	Price
FP0119489	2

» 194J0

COVER,END

Part Number	Qty.	Specifications	Price
FP01194J0	1		€ 352,76

» 19545

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
FP0119545	1

» 19655A

RING,SEAL

Part Number	Qty.	Specifications	Price
FP0119701	2		€ 5,44

» 19671

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FP011967Y	1

» 19686A

BEARING,NEEDLE THRUST

Part Number	Qty.	Specifications	Price
FP0119686	1

» 19730

HOUSING,OIL PUMP

Part Number	Qty.	Specifications	Price
FP0119730	1	AN (FP01-19-730A) - 021021 GY1* -113597**
FP0119730A	1	021021 - GY1113597-*	€ 217,37

» 19831

BOLT,CONTROL VALVE

Part Number	Qty.	Specifications	Price
FP0119831	1

» 19837

BOLT,OIL PAN

Part Number	Qty.	Specifications	Price
FP0119838	16

» 19920

PIPE,OIL

Part Number	Qty.	Specifications	Price
FP2019920A	1	AN (FP20-19-920B) - 030101 GY1* -121232**
FP2019920B	1	030101 - GY1121232-*

» 19930

PIPE,OIL

Part Number	Qty.	Specifications	Price
FP2019930A	1	AN (FP20-19-930B) - 030101 GY1* -121232**
FP2019930B	1	030101 - GY1121232-*

» 21032

RING,'O'-UP.ACCUM 2ND PIS

Part Number	Qty.	Specifications	Price
BW0121032	1		€ 6,44

» 21037

RING,'O'

Part Number	Qty.	Specifications	Price
FP0121037	1		€ 3,73

» 21039

RING,'O'

Part Number	Qty.	Specifications	Price
FP0121039	2		€ 4,69

» 21050

SHAFT,INPUT

Part Number	Qty.	Specifications	Price
FP2021050	1

» 21184

PIPE,OIL

Part Number	Qty.	Specifications	Price
FP0121184	1	ILLUST. NO.1
FP0321181	1	ILLUST. NO.2
FP0321184	1	ILLUST. NO.3

» 211A2

SPRING,VALVE

Part Number	Qty.	Specifications	Price
FP03211A2	1

» 211A7

SPRING,VALVE

Part Number	Qty.	Specifications	Price
FP03211A7	1

» 211B9

SPRING,VALVE

Part Number	Qty.	Specifications	Price
FP01211B9	1

» 21229

CLIP

Part Number	Qty.	Specifications	Price
FP0121229	2		€ 2,18

» 213B1

PISTON,ACCUMULATOR

Part Number	Qty.	Specifications	Price
FP01213B1	1

» 213B5

PISTON,ACCUMULATOR

Part Number	Qty.	Specifications	Price
FP01213B5	1

» 21677

RING,'O'

Part Number	Qty.	Specifications	Price
BV0121677	1	ILLUST. NO.1	€ 2,17
FP0121677	16	ILLUST. NO.2

» 24540

ROTOR

Part Number	Qty.	Specifications	Price
FP01197C1	1	T=13.27-13.28MM	€ 29,74
FP01197C2	1	T=13.28-13.29MM	€ 29,74
FP01197C3	1	T=13.29-13.30MM	€ 29,74

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA001212	1		€ 2,90

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021024	1		€ 2,11

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021041	1		€ 2,05

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993811000	1		€ 2,97

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621400	1		€ 3,08

Automatic Transmission Torque Converter, Oil Pump & Pipings(4wd)
