Air Conditioner 01/03 (GASOLINE) 02/03 (DIESEL) 03/03

Air Conditioner |

Mazda parts catalog

Parts > MAZDA 5 > 2005-02 > Body Interior Trim > Air Conditioner

Search by part number:

Air Conditioner
01/03 (GASOLINE)

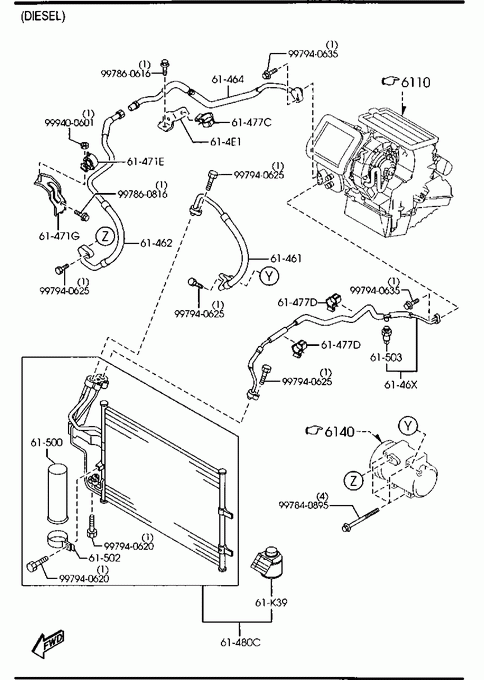

02/03 (DIESEL)
03/03

» 61461 HOSE,FLEXIBLE-HIGH

Part Number Qty. Specifications Price
CC29614G0B 1 GASOLINE
€ 102,46
CC3061461 1 DIESEL
€ 87,19

» 61462 HOSE,FLEXIBLE-LOW

Part Number Qty. Specifications Price
CC2961462A 1 GASOLINE
€ 79,15
CC3061462 1 DIESEL
€ 111,92

» 61464 PIPE NO.2,COOLER

Part Number Qty. Specifications Price
CC3061465 1 DIESEL
€ 50,62

» 6146X PIPE,COOLER

Part Number Qty. Specifications Price
CC296146X 1 GASOLINE
€ 114,77
CC306146XA 1 DIESEL
€ 130,02

» 61471E CLIP

Part Number Qty. Specifications Price
C2356146YA 1 AN (C235-61-46YB)
- 060201
CR19** -137163
C2356146YB 1 060201 -
CR19**137163-

» 61471G BRACKET,PIPE

Part Number Qty. Specifications Price
CC3061471 1 DIESEL

» 61477C CLIP

Part Number Qty. Specifications Price
B25F61477 1 GASOLINE
€ 1,35
S48C61477 1 DIESEL

» 61477D CLIP

Part Number Qty. Specifications Price
C23561477 2

» 61480C CONDENSER & OIL SET

Part Number Qty. Specifications Price
BPYK6148Z 1 AN (BPYK-61-48ZA)
- 060901
CR19** -170548 € 323,52
BPYK6148ZA 1 060901 -
CR19**170548- € 316,95

» 614E1 BRACKET,COOLER PIPE

Part Number Qty. Specifications Price
C235614E1 1 AN (C235-61-4E1A)
GASOLINE
- 060201
CR19** -137163
C235614E1A 1 GASOLINE
060201 -
CR19**137163-
CC30614E1 1 DIESEL

» 61500 TANK,LIQUID

Part Number Qty. Specifications Price
BP4K61501 1 AN (BP4K-61-501A)
- 060901
CR19** -170548 € 56,39
BP4K61501A 1 060901 -
CR19**170548- € 50,64

» 61502 BRACKET,TANK

Part Number Qty. Specifications Price
BP4K61502 1
€ 9,78

» 61503 SWITCH,PRESSURE

Part Number Qty. Specifications Price
B01A61503 1
€ 102,51

» 61K39 OIL,COMPRESSOR

Part Number Qty. Specifications Price
C00361K39 1 40CC
€ 45,46

» 90780 BOLT

Part Number Qty. Specifications Price
997840895 1
€ 2,61

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400601 1
€ 1,28

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860616 1
€ 1,54

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860816 1
€ 1,73

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940620 1
€ 3,14

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940625 1
€ 1,03

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940635 1
€ 2,24

Part Number	Qty.	Specifications	Price
CC29614G0B	1	GASOLINE	€ 102,46
CC3061461	1	DIESEL	€ 87,19

Part Number	Qty.	Specifications	Price
C2356146YA	1	AN (C235-61-46YB) - 060201 CR19 -137163**
C2356146YB	1	060201 - CR19137163-**

Part Number	Qty.	Specifications	Price
BPYK6148Z	1	AN (BPYK-61-48ZA) - 060901 CR19 -170548**	€ 323,52
BPYK6148ZA	1	060901 - CR19170548-**	€ 316,95

Part Number	Qty.	Specifications	Price
C235614E1	1	AN (C235-61-4E1A) GASOLINE - 060201 CR19 -137163**
C235614E1A	1	GASOLINE 060201 - CR19137163-**
CC30614E1	1	DIESEL

Part Number	Qty.	Specifications	Price
BP4K61501	1	AN (BP4K-61-501A) - 060901 CR19 -170548**	€ 56,39
BP4K61501A	1	060901 - CR19170548-**	€ 50,64
