Mazda MAZDA 5 CR 2005-02 Mazda Heater 01/04 ((GASOLINE)>(MT)) 02/04 ((GASOLINE)>(AT)) 03/04 (DIESEL) 04/04

Mazda parts catalog

Parts > MAZDA 5 > 2005-02 > Body Interior Trim > Heater

Search by part number:

Heater

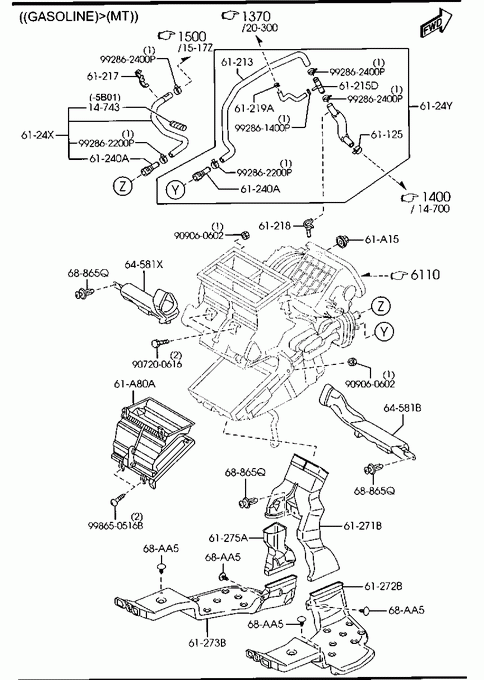

01/04 ((GASOLINE)>(MT))
02/04 ((GASOLINE)>(AT))
03/04 (DIESEL)
04/04

PROTECTOR

Part Number	Qty.	Specifications	Price
R22614736	1	GASOLINE - 051101 CR19 -126467**

» 61125

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B32T61242	1	(GASOLINE>MANUAL TRANSMISSION)	€ 4,59

» 61213

HOSE NO.3,WATER

Part Number	Qty.	Specifications	Price
BP4T61213	1	(GASOLINE>MANUAL TRANSMISSION)

» 61215D

PIPE,JOINT

Part Number	Qty.	Specifications	Price
C23561225	1	GASOLINE

» 61217

CLIP,HOSE

Part Number	Qty.	Specifications	Price
BP4S61217	1	GASOLINE

» 61218

CLIP,HOSE

Part Number	Qty.	Specifications	Price
BP4S61218A	1	GASOLINE 050801 - CR19115116-**
C23561218	1	A (BP4S-61-218A) GASOLINE - 050801 CR19 -115116**

» 61219A

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
BP0D61242	1	GASOLINE	€ 2,52

» 61240A

CONNECTOR,WATER HOSE

Part Number	Qty.	Specifications	Price
B45561240A	2	GASOLINE - 070801 CR19 -226909**	€ 11,74
D65161240	2	GASOLINE 070801 - CR19226909-**

» 6124X

HOSE,WATER

Part Number	Qty.	Specifications	Price
CC296124XA	1	A (CC29-61-24XB) GASOLINE - 051101 CR19 -126467**	€ 25,65
CC296124XB	1	AN (CC29-61-24XC) GASOLINE 051101 - 070801 CR19126467-226909**	€ 22,01
CC296124XC	1	GASOLINE 070801 - CR19226909-**
CC806124XA	1	W/O FUEL FIRED HEATER DIESEL

» 6124Y

HOSE,WATER

Part Number	Qty.	Specifications	Price
CC296124YA	1	AN (CC29-61-24YB) (GASOLINE>MANUAL TRANSMISSION) - 070801 CR19 -226909**	€ 68,75
CC296124YB	1	(GASOLINE>MANUAL TRANSMISSION) 070801 - CR19226909-**
CC306124YA	1	W/FUEL FIRED HEATER DIESEL	€ 10,84
CC396124Y	1	AN (CC39-61-24YA) (GASOLINE>AUTOMATIC TRANSMISSION) - 070801 CR19 -226909**
CC396124YA	1	(GASOLINE>AUTOMATIC TRANSMISSION) 070801 - CR19226909-**
CC806124YA	1	W/O FUEL FIRED HEATER DIESEL

» 61271B

DUCT NO.1,REAR

Part Number	Qty.	Specifications	Price
CC2961271A	1	A (CC29-61-271B) - 050419 CR19 -105964**
CC2961271B	1	050419 - CR19105964-**

» 61272B

DUCT NO.2,REAR

Part Number	Qty.	Specifications	Price
C23561272	1		€ 22,01

» 61273B

DUCT NO.3,REAR

Part Number	Qty.	Specifications	Price
C23561273	1		€ 15,94

» 61275A

DUCT,REAR HEATER

Part Number	Qty.	Specifications	Price
C23561275	1

» 61A15

NUT

Part Number	Qty.	Specifications	Price
BP4K61205	1		€ 2,18

» 61A80A

CASE,HEATER UNIT

Part Number	Qty.	Specifications	Price
BP4K6113YD	1	GASOLINE	€ 27,61
CC346113Y	1	AN (CC34-61-13YA) DIESEL - 051201 CR19 -130124**	€ 36,17
CC346113YA	1	DIESEL 051201 - CR19130124-**	€ 37,63

» 64581B

DUCT(R),HEATER SIDE

Part Number	Qty.	Specifications	Price
BP4K61157A	1	AN (BP4K-61-157B) - 050601 CR19 -108879**	€ 17,57
BP4K61157B	1	050601 - CR19108879-**

» 64581X

DUCT(L),HEATER SIDE

Part Number	Qty.	Specifications	Price
CC2961158	1	AN (CC29-61-158A) - 050601 CR19 -108879**
CC2961158A	1	AN (CC29-61-158B) 050601 - 051102 CR19108879-126753**
CC2961158B	1	051102 - CR19126753-**

» 68865Q

FASTENER

Part Number	Qty.	Specifications	Price
GJ2168885B	3

» 68AA5

FASTENER,DOOR TRIM

Part Number	Qty.	Specifications	Price
A00268AA5	4		€ 1,14

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200616	1		€ 1,13

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909060602	1		€ 0,48

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516B	1		€ 0,52

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992861400P	1		€ 2,44

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862200P	1		€ 2,73

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862400P	1		€ 2,42
