Mazda MAZDA 5 CR 2005-02 Mazda Floor Attachment 01/03 (GASOLINE) 02/03 (DIESEL) 03/03

Mazda parts catalog

Parts > MAZDA 5 > 2005-02 > Body Exterior Trim > Floor Attachment

Search by part number:

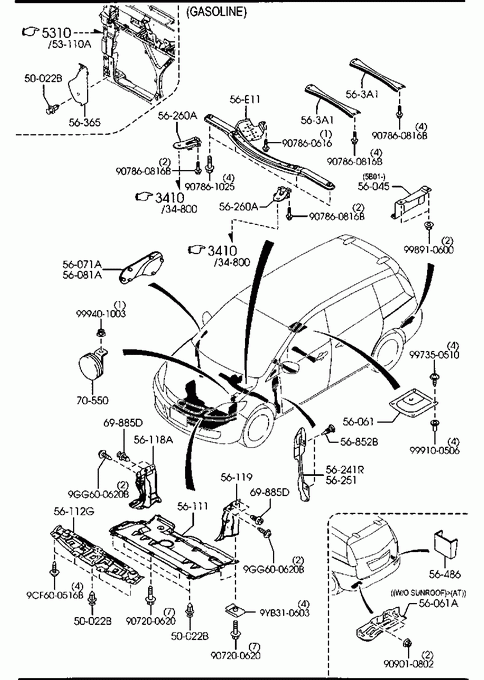

Floor Attachment

01/03 (GASOLINE)
02/03 (DIESEL)
03/03

FASTENER

Part Number	Qty.	Specifications	Price
GD7A50EA1	6	DIESEL	€ 1,32

» 56045

BRACKET

Part Number	Qty.	Specifications	Price
C23556D20	1	AN (C235-56-D20A) 051101 - 060101 CR19126467-133846**
CC4356D20A	1	060101 - CR19133846-**	€ 6,43

» 56061

COVER,SERVICE HOLE

Part Number	Qty.	Specifications	Price
C23556070	1

» 56061A

COVER,HOLE

Part Number	Qty.	Specifications	Price
C23556061	1	AUTOMATIC TRANSMISSION

» 56071A

COVER(R),PACKAGE

Part Number	Qty.	Specifications	Price
C23556076	1

» 56081A

COVER(L),PACKAGE

Part Number	Qty.	Specifications	Price
C23556077	1

» 56111

COVER,UNDER

Part Number	Qty.	Specifications	Price
BP4K56111L	1	AN (BP4K-56-111M) GASOLINE - 070101 CR19 -195524**	€ 119,40
BP4K56111M	1	GASOLINE 070101 - CR19195524-**	€ 119,40
CC3056110	1	AN (CC30-56-110A) DIESEL - 070101 CR19 -195524**	€ 219,24
CC3056110A	1	DIESEL 070101 - CR19195524-**	€ 219,24

» 56112G

COVER'B',UNDER

Part Number	Qty.	Specifications	Price
C23556112	1		€ 14,78

» 56118A

SHIELD(R),SPLASH

Part Number	Qty.	Specifications	Price
BP4K56114D	1		€ 11,12

» 56119

SHIELD(L),SPLASH

Part Number	Qty.	Specifications	Price
BP4K56115F	1		€ 10,84

» 56241R

PLATE(R),SEAL-F.FENDER

Part Number	Qty.	Specifications	Price
C23556391	1		€ 11,89

» 56251

PLATE(L),SEAL-F.FENDER

Part Number	Qty.	Specifications	Price
C23556396	1		€ 11,89

» 56260A

BRACKET

Part Number	Qty.	Specifications	Price
BP4K56H21A	2	- 050601 CR19 -108879**	€ 24,46
C23756H21	2	050601 - CR19108879-**	€ 6,10

» 56365

PLATE(R),SEAL

Part Number	Qty.	Specifications	Price
C23556251	1		€ 9,18

» 563A1

MEMBER'A',TUNNEL

Part Number	Qty.	Specifications	Price
C235563A1	2		€ 13,44

» 56486

INSULATOR

Part Number	Qty.	Specifications	Price
C23556486	2

» 56852B

FASTENER

Part Number	Qty.	Specifications	Price
GE4T56399	4		€ 0,96

» 56E11

MEMBER,CROSS

Part Number	Qty.	Specifications	Price
C23556E10B	1	AN (C235-56-E10C) GASOLINE - 051101 CR19 -126467**	€ 74,95
C23556E10C	1	AN (C235-56-E10D) GASOLINE 051101 - 060808 CR19126467-167871**	€ 76,45
C23556E10D	1	C (C235-56-E10E) GASOLINE 060808 - 070801 CR19167871-226909**	€ 61,57
C23556E10E	1	GASOLINE 070801 - CR19226909-**

» 69885D

FASTENER

Part Number	Qty.	Specifications	Price
NA0156145	2	W/SIDE SPOILER	€ 1,90

» 70550

WEIGT,DEAD

Part Number	Qty.	Specifications	Price
CC2970550	1	5-SPEED

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200620	1		€ 1,40

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860616	1		€ 2,41

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860816B	1		€ 1,53

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907861025	1		€ 2,81

» 90901

NUT

Part Number	Qty.	Specifications	Price
998910600	1		€ 1,79

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB310603	1		€ 4,37

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909010802	1		€ 2,18

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401003	1		€ 2,18

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997350510	1		€ 0,62

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9GG600620B	1		€ 0,62

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100506	1		€ 2,12
