Mazda MAZDA 5 CR 2005-02 Mazda Rear Bumper 01/02 (MT) 02/02 (AT)

Mazda parts catalog

Parts > MAZDA 5 > 2005-02 > Body Exterior Trim > Rear Bumper

Search by part number:

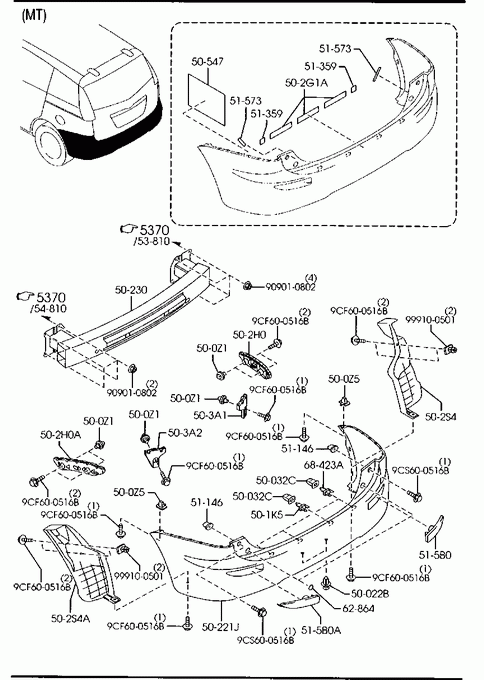

Rear Bumper

01/02 (MT)
02/02 (AT)

FASTENER

Part Number	Qty.	Specifications	Price
GD7A50EA1	2		€ 1,32

» 50032C

GROMMET

Part Number	Qty.	Specifications	Price
C23550ES1	4		€ 1,74

» 500Z1

RIVET,BLIND-NO. PLATE

Part Number	Qty.	Specifications	Price
GJ6A500Z1	6		€ 1,34

» 500Z5

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
BP4K500Z5	2	060622 - CR19158318-**	€ 0,92
GJ6A500Z5	2	- 060622 CR19 -158318**	€ 0,98

» 501K5

PIN,LOCATOR

Part Number	Qty.	Specifications	Price
GK2A501K5A	1		€ 2,11

» 50221J

BUMPER,REAR

Part Number	Qty.	Specifications	Price
CC2950221C	1	W/O SIDE SPOILER - 050301 CR19 -100392**
CC2950221D	1	W/O SIDE SPOILER 050301 - 070601 CR19100392-219146**
CC2950221E	1	W/O SIDE SPOILER 070601 - CR19219146-**
CC6450221C	1	W/SIDE SPOILER - 050301 CR19 -100392**
CC6450221D	1	W/SIDE SPOILER 050301 - 070601 CR19100392-219146**
CC6450221E	1	W/SIDE SPOILER 070601 - CR19219146-**

» 50230

REINF,BUMPER-REAR

Part Number	Qty.	Specifications	Price
CC2950260A	1	A (CC29-50-260B) MANUAL TRANSMISSION - 050901 CR19 -118561**	€ 88,13
CC2950260B	1	MANUAL TRANSMISSION 050901 - CR19118561-**	€ 88,13

» 502G1A

RUBBER,SEAL

Part Number	Qty.	Specifications	Price
C235502G1	3		€ 5,21

» 502H0

RETAINER(R),REAR BUMPER

Part Number	Qty.	Specifications	Price
C235502H1A	1		€ 9,01

» 502H0A

RETAINER(L),REAR BUMPER

Part Number	Qty.	Specifications	Price
C235502J1A	1		€ 9,01

» 502S4

SHIELD(R),SPLASH-R.BUMPER

Part Number	Qty.	Specifications	Price
C23550341A	1	W/O SIDE SPOILER W/O RR.MUD FLAP	€ 8,76
CC2950341A	1	W/O SIDE SPOILER W/RR.MUD FLAP

» 502S4A

SHIELD(L),SPLASH-R.BUMPER

Part Number	Qty.	Specifications	Price
C23550351A	1	W/O SIDE SPOILER W/O RR.MUD FLAP	€ 8,76
CC2950351A	1	W/O SIDE SPOILER W/RR.MUD FLAP

» 503A1

BRACKET(R),REAR BUMPER

Part Number	Qty.	Specifications	Price
C23550321A	1		€ 4,58

» 503A2

BRACKET(L),REAR BUMPER

Part Number	Qty.	Specifications	Price
C23550331A	1		€ 4,58

» 50547

INSULATOR

Part Number	Qty.	Specifications	Price
CC3050CH1	1	DIESEL - 060717 CR19 -163569**	€ 14,81
CC3050CH1A	1	AN (CC30-50-CH1) DIESEL 060717 - CR19163569-**

» 51146

GROMMET,SCREW-R.COMB

Part Number	Qty.	Specifications	Price
B01W51142B	2		€ 1,69

» 51359

RUBBER,SEAL

Part Number	Qty.	Specifications	Price
C236502G1	2		€ 3,60

» 51573

RUBBER,SEAL

Part Number	Qty.	Specifications	Price
C237502G1	2		€ 3,25

» 515B0

REFLECTOR(R),REFLEX-SIDE

Part Number	Qty.	Specifications	Price
D350515L0C	1		€ 17,80

» 515B0A

REFLECTOR(L),REFLEX-SIDE

Part Number	Qty.	Specifications	Price
D350515M0C	1		€ 17,80

» 62864

TAPE,PROTECTOR-STOPPER

Part Number	Qty.	Specifications	Price
G04362864A	2		€ 2,44

» 68423A

PIN,LOCATOR

Part Number	Qty.	Specifications	Price
GK2E501K5A	3		€ 1,90

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909010802	1		€ 2,18

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9CS600516B	1		€ 0,73

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501	1		€ 1,33
