Mazda MAZDA 5 CR 2005-02 Mazda Fuel Tank 01/02 02/02

Mazda parts catalog

Parts > MAZDA 5 > 2005-02 > Chassis Piping & Fuel Tank > Fuel Tank(gasoline)

Search by part number:

Fuel Tank(gasoline)

01/02
02/02

PRESSURE RG.,FUEL

Part Number	Qty.	Specifications	Price
LFB613280	1

» 13350

PUMP,FUEL

Part Number	Qty.	Specifications	Price
LFB61335ZB	1		€ 282,24

» 13350A

PUMP,FUEL-SUB

Part Number	Qty.	Specifications	Price
LFB713350	1

» 1335X

PUMP&GAGE,FUEL

Part Number	Qty.	Specifications	Price
LFB61335XB	1		€ 309,96

» 13970

CANISTER

Part Number	Qty.	Specifications	Price
LFB61396Z	1		€ 115,44

» 13ZE0

BODY,FUEL FILTER

Part Number	Qty.	Specifications	Price
LFB613ZE0	1		€ 89,10

» 13ZE1

FILTER,FUEL PUMP

Part Number	Qty.	Specifications	Price
LFB613ZE1	1		€ 17,27

» 42110

TANK,FUEL

Part Number	Qty.	Specifications	Price
C23542110C	1	AN (C235-42-110D) - 050301 CR19 -100392**	€ 413,93
CC2942110	1	AN (CC29-42-110A) 050301 - 061101 CR19100392-182545**	€ 395,69
CC2942110A	1	061101 - CR19182545-**

» 42161

PLATE,SET

Part Number	Qty.	Specifications	Price
GN3A42161	1	AN (GN3A-42-161A) - 061001 CR19 -176159**	€ 12,27
GN3A42161A	1	061001 - CR19176159-**	€ 14,01

» 42165

RING,'O'

Part Number	Qty.	Specifications	Price
BP4K42252	1		€ 4,26

» 42185

GASKET

Part Number	Qty.	Specifications	Price
C23542166	1		€ 9,77

» 42210

PIPE,FILLER

Part Number	Qty.	Specifications	Price
BP4L42210A	1	- 050501 CR19 -107862**	€ 97,67
C23542210	1	050501 - CR19107862-**	€ 80,59

» 42240

COVER,DUST

Part Number	Qty.	Specifications	Price
B32H42241C	1		€ 23,03

» 42240A

HOSE,JOINT

Part Number	Qty.	Specifications	Price
C23542231A	1

» 42250

CAP,FILLER

Part Number	Qty.	Specifications	Price
BJ3E42250	1		€ 40,09

» 42260J

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
C23542232A	1

» 42280

VALVE,NON RETURN

Part Number	Qty.	Specifications	Price
D35042270	1		€ 6,15

» 42462

GASKET,CAP

Part Number	Qty.	Specifications	Price
GJ6A42252A	1		€ 4,01

» 42563

HOSE,FUEL

Part Number	Qty.	Specifications	Price
C23542563A	1

» 42564

HOSE NO.4,BREATHER

Part Number	Qty.	Specifications	Price
C23542564A	1

» 42565A

HOSE,FUEL

Part Number	Qty.	Specifications	Price
C23542565A	1

» 42590A

CHAMBER,EVAPO.-TANK BRKT

Part Number	Qty.	Specifications	Price
BL0942590A	1		€ 8,28

» 42762

PAD,FUEL FILLER PIPE

Part Number	Qty.	Specifications	Price
BP4K42762	1	125X50X2	€ 5,27

» 42825

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
TC4042239	2		€ 3,03

» 60960A

GAUGE,FUEL TANK

Part Number	Qty.	Specifications	Price
C23660960	1		€ 48,53

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330408	1		€ 0,55

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9GGC00616	1		€ 0,94

» 90901

NUT

Part Number	Qty.	Specifications	Price
998910600	1		€ 1,79

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831200	1		€ 0,82

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831900	1		€ 1,88

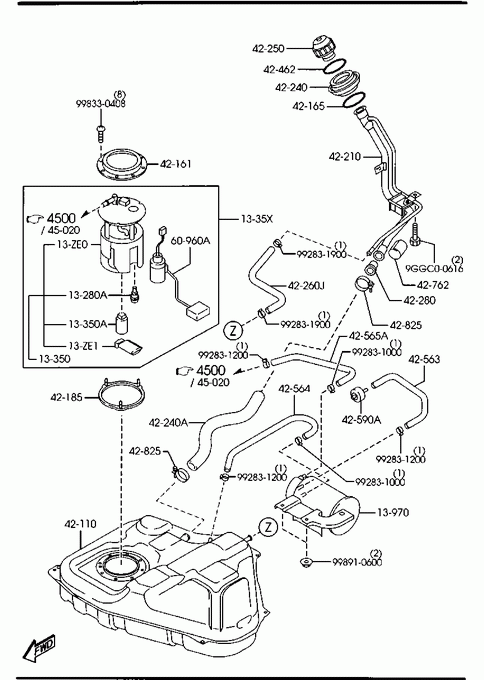

Fuel Tank(gasoline)
