Mazda MAZDA 5 CR 2005-02 Mazda Automatic Transmission Governor, Low & Reverse Piston

Mazda parts catalog

Parts > MAZDA 5 > 2005-02 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Governor, Low & Reverse Piston

Search by part number:

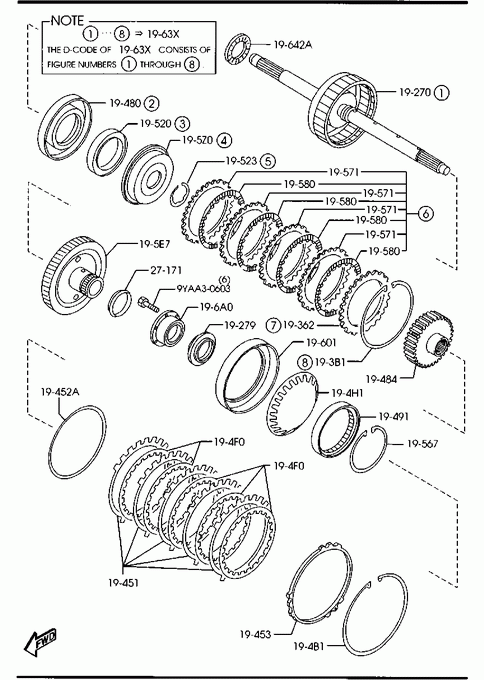

Automatic Transmission Governor, Low & Reverse Piston

» 19270

SHAFT,TURBINE

Part Number	Qty.	Specifications	Price
FN1119270F	1		€ 97,04

» 19279

NUT,LOCK

Part Number	Qty.	Specifications	Price
FN0219279	1		€ 7,79

» 19362

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
FN1119362A	1	MICRO TEKUNO	€ 12,14

» 193B1

RING,SNAP

Part Number	Qty.	Specifications	Price
FN11193B1	1	T=1.4MM	€ 2,77
FN11193B2	1	T=1.6MM	€ 2,77
FN11193B3	1	T=1.8MM	€ 2,77
FN11193B4	1	T=2.0MM	€ 2,77
FN11193B5	1	T=2.2MM	€ 2,77
FN11193B6	1	T=1.2MM	€ 2,35

» 19451

PLATE,DRIVEN

Part Number	Qty.	Specifications	Price
FN2119451	5

» 19452A

PLATE,DISH

Part Number	Qty.	Specifications	Price
FN1119452	1		€ 13,62

» 19453

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
FN1119453	1		€ 30,13

» 19480

PISTON,CLUTCH

Part Number	Qty.	Specifications	Price
FN01195P0C	1		€ 25,73

» 19484

HUB,FORWARD CLUTCH

Part Number	Qty.	Specifications	Price
FN11194M1A	1	SELECTIVE USE	€ 18,22
FN13194M0	1	AN (FN13-19-4M0A) SELECTIVE USE - 060201 CR19 -137163**
FN13194M0A	1	SELECTIVE USE 060201 - CR19137163-**
FN14194M0	1	SELECTIVE USE 060201 - CR19137163-**

» 19491

RACE,INNER

Part Number	Qty.	Specifications	Price
FN1119491	1		€ 21,41

» 194B1

RING,SNAP

Part Number	Qty.	Specifications	Price
FN11194B1A	1	T=2.0MM	€ 3,43
FN11194B2A	1	T=2.2MM	€ 3,43
FN11194B3A	1	T=2.4MM	€ 3,43
FN11194B4A	1	T=2.6MM	€ 3,43
FN11194B5A	1	T=2.8MM	€ 3,50
FN11194B6A	1	T=3.0MM	€ 3,50
FN11194B7A	1	T=1.8MM	€ 3,36

» 194F0

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FN01194F0	5

» 194H1

SPRING,RETURN-LOW & REV

Part Number	Qty.	Specifications	Price
FN01194H1A	1		€ 12,81

» 19520

RETAINER,SPRING-CLU.ONE W

Part Number	Qty.	Specifications	Price
FN1119520	1		€ 11,35

» 19523

RING,SNAP

Part Number	Qty.	Specifications	Price
FN1119523A	1		€ 1,50

» 19567

RING,SNAP

Part Number	Qty.	Specifications	Price
FN1119631	1	T=1.0MM	€ 1,14

» 19571

PLATE,DRIVEN-FRONT

Part Number	Qty.	Specifications	Price
FN2119571	4

» 19580

FLANGE

Part Number	Qty.	Specifications	Price
FNK119580	4

» 195E7

GEAR,PRIMARY

Part Number	Qty.	Specifications	Price
FN11195E7F	1

» 195Z0

PLATE,SEAL FORWARD

Part Number	Qty.	Specifications	Price
FN11195Z0	1		€ 25,05

» 19601

PISTON,LOW & REVERSE

Part Number	Qty.	Specifications	Price
FN1119438	1	A (FN11-19-438A) - 050901 CR19 -118561**
FN1119438A	1	050901 - CR19118561-**	€ 47,49

» 1963X

CLUTCH,FORWARD

Part Number	Qty.	Specifications	Price
FN111963XJ	1		€ 226,89

» 19642A

WASHER,THRUST

Part Number	Qty.	Specifications	Price
FN01195F2	1		€ 6,35

» 196A0

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FN12196A0C	1	NSK SUPPLIER IN SELECTION
FS50196A0	1	HANWHA SUPPLIER IN SELECTION 050927 - CR19122018-**

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
FN11196A3C	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YAA30603	1		€ 1,56
