Mazda MAZDA 3 BK 2006-03 Mazda Pillar Trims

Mazda parts catalog

Parts > MAZDA 3 > 2006-03 > Body Interior Trim > Pillar Trims(5-door)

Search by part number:

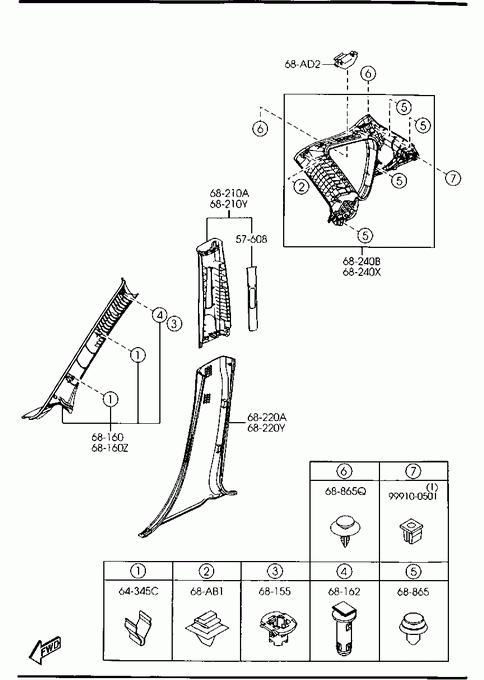

Pillar Trims(5-door)

COVER,ADJUST-SHOULDER

Part Number	Qty.	Specifications	Price
BP4K57969	2	- 070101 BK1* -586430**
BP4K57969A	2	070101 - BK1586430-*

» 64345C

SPRING,UPPER PLATE

Part Number	Qty.	Specifications	Price
LB8264345	4		€ 1,41

» 68155

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
GJ6A68155A	2		€ 2,05

» 68160

TRIM(R),'A'PILLAR

Part Number	Qty.	Specifications	Price
BP4K68160D	1	W/CURTAIN AIR BAG
BP4L68160E	1	W/O CURTAIN AIR BAG

» 68160Z

TRIM(L),'A'PILLAR

Part Number	Qty.	Specifications	Price
BP4K68170D	1	W/CURTAIN AIR BAG
BP4L68170E	1	W/O CURTAIN AIR BAG

» 68162

CLIP,TRIM

Part Number	Qty.	Specifications	Price
GJ6A68162	2		€ 4,05

» 68210A

TRIM(R),'B'PILLAR-UPPER

Part Number	Qty.	Specifications	Price
BP4K68190C	1	W/CURTAIN AIR BAG - 070101 BK1* -586430**
BP4K68190D	1	W/CURTAIN AIR BAG 070101 - 070401 BK1586430-616737*
BP4K68190E	1	W/CURTAIN AIR BAG 070401 - BK1616737-*
BP4L68190	1	W/O CURTAIN AIR BAG - 070101 BK1* -586430**
BP4L68190A	1	W/O CURTAIN AIR BAG 070101 - 070401 BK1586430-616737*
BP4L68190B	1	W/O CURTAIN AIR BAG 070401 - BK1616737-*

» 68210Y

TRIM(L),'B'PILLAR-UPPER

Part Number	Qty.	Specifications	Price
BP4K68210C	1	W/CURTAIN AIR BAG - 070101 BK1* -586430**
BP4K68210D	1	W/CURTAIN AIR BAG 070101 - 070401 BK1586430-616737*
BP4K68210E	1	W/CURTAIN AIR BAG 070401 - BK1616737-*
BP4L68210	1	W/O CURTAIN AIR BAG - 070101 BK1* -586430**
BP4L68210A	1	W/O CURTAIN AIR BAG 070101 - 070401 BK1586430-616737*
BP4L68210B	1	W/O CURTAIN AIR BAG 070401 - BK1616737-*

» 68220A

TRIM(R),'B'PILLAR-LOWER

Part Number	Qty.	Specifications	Price
BP4K68220E	1	- 060601 BK1* -517146**
BP4K68220F	1	060601 - BK1517146-*

» 68220Y

TRIM(L),'B'PILLAR-LOWER

Part Number	Qty.	Specifications	Price
BP4K68230E	1	- 060601 BK1* -517146**
BP4K68230F	1	060601 - BK1517146-*

» 68240B

TRIM(R),'C'PILLAR

Part Number	Qty.	Specifications	Price
BP4K68250D	1	W/CURTAIN AIR BAG
BP4L68250D	1	W/O CURTAIN AIR BAG

» 68240X

TRIM(L),'C'PILLAR

Part Number	Qty.	Specifications	Price
BP4K68260E	1	W/CURTAIN AIR BAG
BP4L68260E	1	W/O CURTAIN AIR BAG

» 68865

FASTENER

Part Number	Qty.	Specifications	Price
GE4T68865A	8		€ 1,21

» 68865Q

FASTENER

Part Number	Qty.	Specifications	Price
GJ2168885B	4

» 68AB1

FASTENER

Part Number	Qty.	Specifications	Price
B01A68AB1	2		€ 1,37

» 68AD2

CLIP

Part Number	Qty.	Specifications	Price
BP4K68AD2	2		€ 1,92

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501	1		€ 1,33

Pillar Trims(5-door)
