Heater 01/03 (1300) (1600) 02/03 (2000) 03/03 (2300)

Heater |

Mazda parts catalog

Parts > MAZDA 3 > 2006-03 > Body Interior Trim > Heater

Search by part number:

Heater(gasoline)(5-door)

01/03 (1300) (1600)
02/03 (2000)

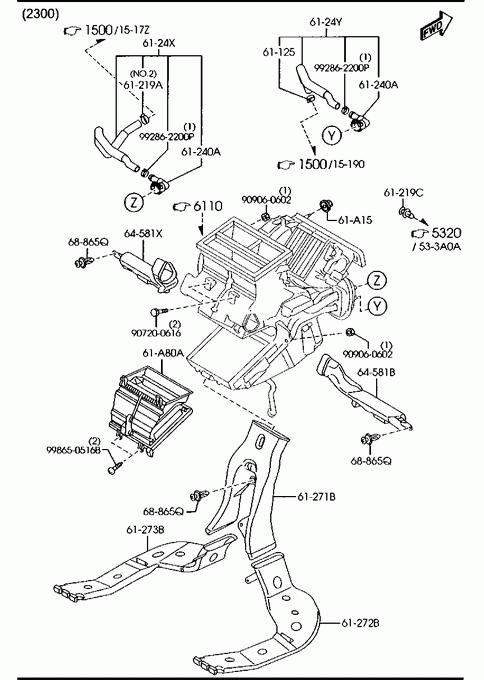

03/03 (2300)

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B32T61242	2	(2000>MANUAL TRANSMISSION)	€ 4,59

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
BP0D61242	1	ILLUST. NO.1 2000	€ 2,52
BP4K61242	2	ILLUST. NO.2 1300 1600	€ 4,22

CLIP,HOSE

Part Number	Qty.	Specifications	Price
C23561219	1	- 061219 BK1* -582200**

CONNECTOR,WATER HOSE

Part Number	Qty.	Specifications	Price
B37F61240	2	2300
B45561240A	2	1300 1600 2000 - 070801 BK1* -659123**	€ 11,74
D65161240	2	1300 1600 2000 070801 - BK1659123-*

HOSE,WATER

Part Number	Qty.	Specifications	Price
BA6R6124XA	1	2300

HOSE,WATER

Part Number	Qty.	Specifications	Price
BA6R6124YA	1	2300
BR5V6124Y	1	AN (BR5V-61-24YA) (2000>MANUAL TRANSMISSION) - 070801 BK1* -659123**	€ 57,13
BR5V6124YA	1	(2000>MANUAL TRANSMISSION) 070801 - BK1659123-*

DUCT NO.1,REAR

Part Number	Qty.	Specifications	Price
BP4K61271B	1	AN (BP4K-61-271C) - 070115 BK1* -588701**	€ 16,78
BP4K61271C	1	070115 - BK1588701-*

DUCT NO.2,REAR

Part Number	Qty.	Specifications	Price
BP4K61272C	1	AN (BP4K-61-272D) W/4-SPEAKER W/6-SPEAKER - 070108 BK1* -586430**	€ 18,17
BP4K61272E	1	W/4-SPEAKER W/6-SPEAKER 070108 - BK1586430-*	€ 18,17
BR8W61272B	1	AN (BR8W-61-272C) W/7-SPEAKER ECE - 070201 BK1* -595714**
BR8W61272D	1	W/7-SPEAKER ECE 070201 - BK1595714-*

DUCT NO.3,REAR

Part Number	Qty.	Specifications	Price
BP4K61273C	1	AN (BP4K-61-273D) W/4-SPEAKER W/6-SPEAKER - 070108 BK1* -586430**	€ 18,17
BP4K61273E	1	W/4-SPEAKER W/6-SPEAKER 070108 - BK1586430-*
BR8W61273B	1	AN (BR8W-61-273C) W/7-SPEAKER ECE - 070201 BK1* -595714**
BR8W61273D	1	W/7-SPEAKER ECE 070201 - BK1595714-*

NUT

Part Number	Qty.	Specifications	Price
BP4K61205	1		€ 2,18

CASE,HEATER UNIT

Part Number	Qty.	Specifications	Price
BP4K6113YD	1	1300 1600 2000	€ 27,61
CC346113YA	1	2300	€ 37,63

DUCT(R),HEATER SIDE

Part Number	Qty.	Specifications	Price
BP4K61157B	1

DUCT(L),HEATER SIDE

Part Number	Qty.	Specifications	Price
BP4K61158B	1

FASTENER

Part Number	Qty.	Specifications	Price
GJ2168885B	3

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200616	1		€ 1,13

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909060602	1		€ 0,48

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516B	1		€ 0,52

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862200P	1		€ 2,73
