- Parts > MAZDA 3 > 2006-03 > Diesel-engine Supplement > Cooling System(diesel)(1600cc)
- Search by part number:
-

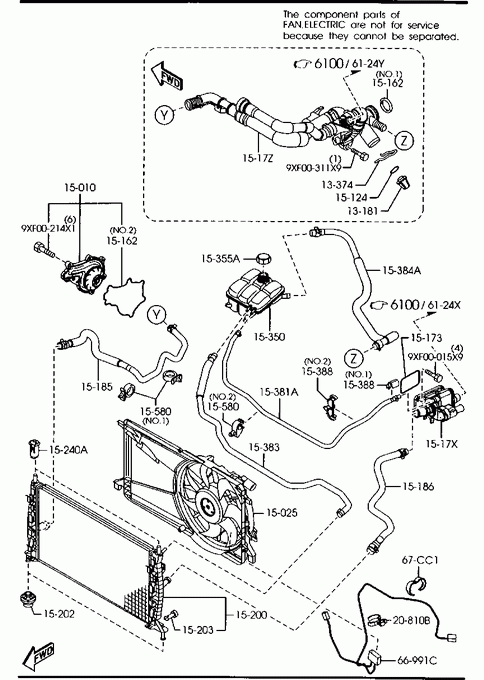

Cooling System(diesel)(1600cc)
-
» 13181 CONNECTOR,BOLT Part Number Qty. Specifications Price Y40113181 1 HI-POWER € 19,91 » 13374 RETAINER Part Number Qty. Specifications Price Y40113540 1 € 1,54 » 15010 PUMP,WATER Part Number Qty. Specifications Price Y60115010B 1 € 85,15 » 15025 FAN,ELECTRIC Part Number Qty. Specifications Price Z60215025D 1 AN (Z602-15-025E)
- 060421
BK1*** -505518€ 214,42 Z60215025E 1 A (Z602-15-025F)
060421 - 070123
BK1***505518-591773Z60215025F 1 070123 -
BK1***591773-» 15124 GASKET Part Number Qty. Specifications Price Y60115163 1 HI-POWER € 1,05 » 15162 GASKET Part Number Qty. Specifications Price Y60115162 1 ILLUST. NO.1
HI-POWER€ 1,21 Y60215162 1 ILLUST. NO.2 » 15173 GASKET,THERMOSTAT COVER Part Number Qty. Specifications Price Y60115176 1 HI-POWER € 2,58 » 1517X THERMOSTAT & COVER Part Number Qty. Specifications Price Y6021517X 1 € 48,39 » 1517Z OUTLET,WATER Part Number Qty. Specifications Price Y6011517Z 1 € 67,41 » 15185 HOSE,WATER Part Number Qty. Specifications Price Y60115185D 1 - 061101
BK1*** -564979€ 35,79 Y60115185E 1 061101 -
BK1***564979-» 15186 HOSE,WATER Part Number Qty. Specifications Price Y60115186F 1 € 22,82 » 15200 RADIATOR Part Number Qty. Specifications Price Y60115200E 1 € 273,38 » 15202 RUBBER,MOUNT Part Number Qty. Specifications Price Y60115202B 2 W/A.C. € 8,89 Y60215202A 2 W/O A.C. » 15203 COCK,DRAIN-RADIATOR PIPE Part Number Qty. Specifications Price Z60215203 1 » 15240A BRACKET,RADIATOR UP. Part Number Qty. Specifications Price Z60115240F 2 € 7,93 » 15350 TANK,SUB-RADIATOR Part Number Qty. Specifications Price Y60115350C 1 € 32,08 » 15355A CAP,SUB TANK Part Number Qty. Specifications Price LF5015205A 1 € 25,59 » 15381A HOSE,SUB TANK Part Number Qty. Specifications Price Y60115381D 1 € 42,72 » 15383 HOSE,SUB TANK Part Number Qty. Specifications Price Z60115383E 1 € 29,67 » 15384A HOSE,SUB TANK Part Number Qty. Specifications Price Y60115384C 1 € 31,15 » 15388 CLIP,HOSE Part Number Qty. Specifications Price R2P715388 1 ILLUST. NO.2 Y60115387 1 ILLUST. NO.1 » 15580 CLIP,WATER HOSE Part Number Qty. Specifications Price Y60115581A 2 ILLUST. NO.1 € 3,98 Z60115581A 1 ILLUST. NO.2 € 1,26 » 20810B CLIP Part Number Qty. Specifications Price LF2120811 2 € 1,53 » 66991C CONDENSER Part Number Qty. Specifications Price LF5066991A 1 € 19,05 » 67CC1 CLIP,HARNESS Part Number Qty. Specifications Price B01W67CC1 1 € 1,10 » 99601 BOLT Part Number Qty. Specifications Price 9XF00015X9 1 € 1,32 » 99601 BOLT Part Number Qty. Specifications Price 9XF00214X1 1 € 0,74 » 99601 BOLT Part Number Qty. Specifications Price 9XF00311X9 1 € 0,55
