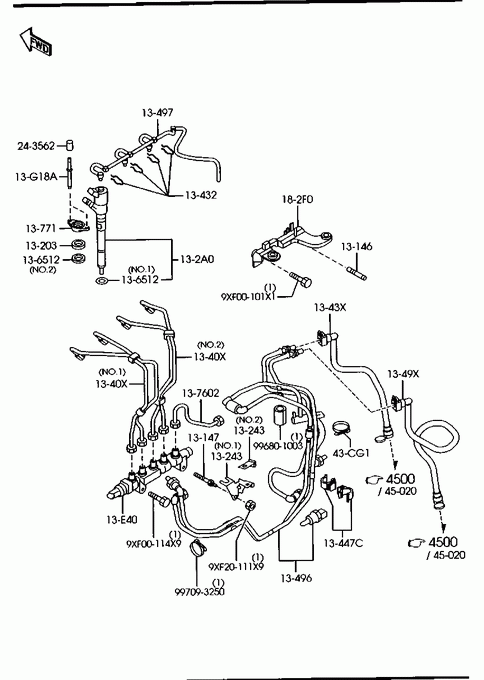

Fuel System(diesel)(1600cc)

01/02
02/02

STUD,SURGE TANK

Part Number	Qty.	Specifications	Price
Y60113146	1	HI-POWER	€ 0,69

» 13147

STUD

Part Number	Qty.	Specifications	Price
Y60113147	1		€ 1,96

» 13203

SEAL,RUBBER

Part Number	Qty.	Specifications	Price
Y60113203	4	HI-POWER	€ 3,94
Y60513203	4	LO-POWER

» 13243

CLIP

Part Number	Qty.	Specifications	Price
Y60113243	1	ILLUST. NO.1 HI-POWER
Y60213243	1	ILLUST. NO.2	€ 1,21
Y60513243	1	A (Y605-13-243A) ILLUST. NO.1 LO-POWER - 070801 BK1* -659123**
Y60513243A	1	ILLUST. NO.1 LO-POWER 070801 - BK1659123-*

» 132A0

INJECTOR

Part Number	Qty.	Specifications	Price
Y60513H50A	4	A (Y605-13-H50B) LO-POWER - 070301 BK1* -605425**
Y60513H50B	4	LO-POWER 070301 - BK1605425-*
Y60613H50	4	HI-POWER	€ 512,13

» 1340X

LINE,FUEL

Part Number	Qty.	Specifications	Price
Y6011340XB	1	A (Y601-13-40XC) ILLUST. NO.1 HI-POWER - 070301 BK1* -605425**	€ 39,26
Y6011340XC	1	ILLUST. NO.1 HI-POWER 070301 - BK1605425-*	€ 25,06
Y6031340X	1	A (Y603-13-40XA) ILLUST. NO.2 - 070301 BK1* -605425**	€ 39,26
Y6031340XA	1	ILLUST. NO.2 070301 - BK1605425-*	€ 25,06

» 13432

HOSE,FUEL

Part Number	Qty.	Specifications	Price
Y60113432	4

» 1343X

HOSE,FUEL RETURN

Part Number	Qty.	Specifications	Price
Y6011343XA	1		€ 67,39

» 13447C

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
Y60113447	1

» 13496

HOSE,FUEL

Part Number	Qty.	Specifications	Price
Y6011349YB	1		€ 152,14

» 13497

HOSE,FUEL

Part Number	Qty.	Specifications	Price
Y60113497B	1	AN (Y601-13-497C) HI-POWER - 060401 BK1* -502447**	€ 28,75
Y60113497C	1	A (Y601-13-497D) HI-POWER 060401 - 070301 BK1502447-605425*	€ 22,57
Y60113497D	1	HI-POWER 070301 - BK1605425-*	€ 24,04
Y60513497	1	LO-POWER

» 1349X

HOSE,FUEL

Part Number	Qty.	Specifications	Price
Y6011349XB	1		€ 61,17

» 136512

WASHER,NOZZLE

Part Number	Qty.	Specifications	Price
Y60113H51	4	ILLUST. NO.1	€ 1,31
Y60213H51	4	ILLUST. NO.2	€ 2,30

» 137602

PIPE,FUEL INJECTION

Part Number	Qty.	Specifications	Price
Y60113G60	1	HI-POWER	€ 18,93
Y60513G60	1	A (Y605-13-G60A) LO-POWER - 070301 BK1* -605425**	€ 13,83
Y60513G60A	1	A (Y605-13-G60B) LO-POWER 070301 - 070801 BK1605425-659123*
Y60513G60B	1	LO-POWER 070801 - BK1659123-*

» 13771

CLIP,INJECTION PIPE

Part Number	Qty.	Specifications	Price
Y60113G15	4	A (Y601-13-G15A) HI-POWER - 070301 BK1* -605425**	€ 3,26
Y60113G15A	4	AN (Y601-13-G15B) HI-POWER 070301 - 070801 BK1605425-659123*
Y60113G15B	4	HI-POWER 070801 - BK1659123-*
Y60513G15	4	LO-POWER	€ 3,40

» 13E40

JOINT,HOSE-INJECTION

Part Number	Qty.	Specifications	Price
Y60113GC0A	1	A (Y601-13-GC0B) - 060901 BK1* -547059**	€ 114,01
Y60113GC0B	1	060901 - BK1547059-*	€ 116,29

» 13G18A

BOLT

Part Number	Qty.	Specifications	Price
Y60113G18	8		€ 0,87

» 182F0

BRACKET,DISTRIBUTOR

Part Number	Qty.	Specifications	Price
Y601182F0A	1	- 060601 BK1* -517146**
Y601182F0B	1	060601 - BK1517146-*

» 243562

NUT,SCREW CAP

Part Number	Qty.	Specifications	Price
Y60113TV8	8	A (Y601-13-TV8A) - 070801 BK1* -659123**	€ 0,48
Y60113TV8A	8	070801 - BK1659123-*	€ 0,48

» 43CG1

BAND

Part Number	Qty.	Specifications	Price
B60343CG1	1		€ 2,75

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996801003	1

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
9XF20111X9	1		€ 0,73

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9XF00101X1	1

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9XF00114X9	1

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093250	1		€ 2,76
