Turbo Charger 01/02 (LO-POWER) 02/02 (HI-POWER)

Turbo Charger |

Mazda parts catalog

Parts > MAZDA 3 > 2006-03 > Diesel-engine Supplement > Turbo Charger

Search by part number:

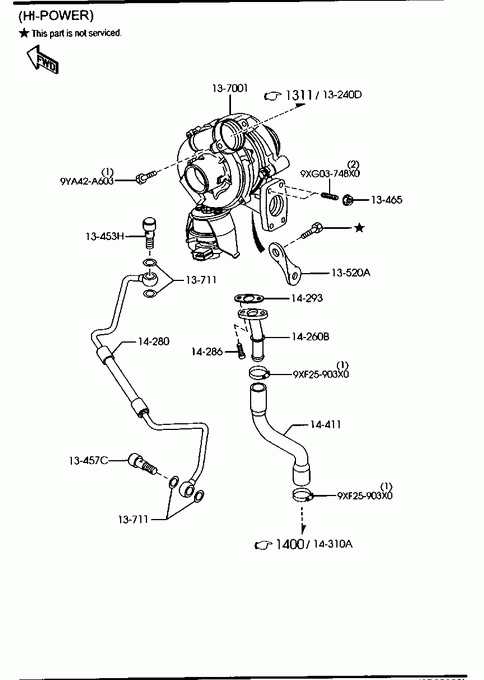

Turbo Charger(diesel)(1600cc)

01/02 (LO-POWER)
02/02 (HI-POWER)

BOLT

Part Number	Qty.	Specifications	Price
Y40113707A	1

BOLT

Part Number	Qty.	Specifications	Price
Y40113708C	1	- 070301 BK1* -605425**
Y60313707	1	070301 - BK1605425-*	€ 1,72

NUT,EXHAUST MANIFOLD

Part Number	Qty.	Specifications	Price
Y60113465	4		€ 1,44

BRACKET,TURBO

Part Number	Qty.	Specifications	Price
Y60113521	1	HI-POWER	€ 2,98

TURBOCHARGER

Part Number	Qty.	Specifications	Price
Y60113700C	1	A (Y601-13-700D) HI-POWER - 060401 BK1* -502447**	€ 625,52
Y60113700D	1	A (Y601-13-700E) HI-POWER 060401 - 070301 BK1502447-605425*	€ 601,65
Y60113700F	1	A (Y601-13-700G) HI-POWER 070301 - 070801 BK1605425-659123*	€ 633,32
Y60113700G	1	HI-POWER 070801 - BK1659123-*	€ 633,32
Y60513700	1	A (Y605-13-700A) LO-POWER - 060601 BK1* -517146**
Y60513700A	1	A (Y605-13-700B) LO-POWER 060601 - 070501 BK1517146-623801*
Y60513700B	1	LO-POWER 070501 - BK1623801-*

GASKET,TURBOCHARGER

Part Number	Qty.	Specifications	Price
Y60113710	4		€ 1,26

PIPE,OIL OUTLET

Part Number	Qty.	Specifications	Price
Y60114260	1	A (Y601-14-260A) - 070801 BK1* -659123**	€ 11,58
Y60114260A	1	070801 - BK1659123-*

PIPE,OIL

Part Number	Qty.	Specifications	Price
Y60114270	1	A (Y601-14-270A) HI-POWER - 060601 BK1* -517146**	€ 54,90
Y60114270A	1	A (Y601-14-270B) HI-POWER 060601 - 070501 BK1517146-623801*	€ 64,23
Y60114270B	1	HI-POWER 070501 - BK1623801-*

BOLT

Part Number	Qty.	Specifications	Price
Y60114275	2

GASKET,OIL PIPE

Part Number	Qty.	Specifications	Price
Y60114293	1	A (Y602-14-293)	€ 3,15

HOSE,OIL

Part Number	Qty.	Specifications	Price
Y60114294B	1	A (Y601-14-294C) HI-POWER - 070501 BK1* -623801**	€ 16,91
Y60114294C	1	HI-POWER 070501 - BK1623801-*

STUD

Part Number	Qty.	Specifications	Price
9XG03748X0	1		€ 2,12

CLIP

Part Number	Qty.	Specifications	Price
9XF25903X0	1		€ 0,43

BOLT

Part Number	Qty.	Specifications	Price
9YA42A603	1
