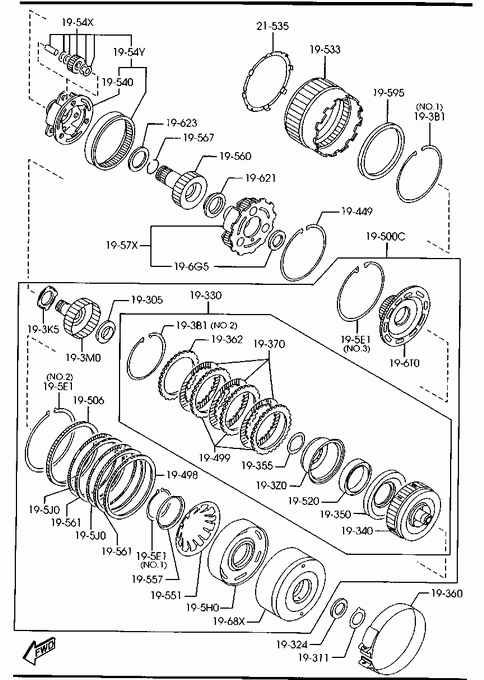

Automatic Transmission Clutches & Planetary Gears
-
» 19305 BEARING,NEEDLE Part Number Qty. Specifications Price FN1119305 1 € 10,58 » 19311 RACE,BEARING Part Number Qty. Specifications Price FN1119311A 1 T=1.8MM FN1119312A 1 T=2.0MM FN1119313A 1 T=2.2MM € 9,27 FN1119314A 1 T=2.4MM € 9,27 FN1119315A 1 T=2.6MM » 19324 BEARING,NEEDLE Part Number Qty. Specifications Price FN1119324A 1 € 5,65 » 19330 CLUTCH,3RD & 4TH Part Number Qty. Specifications Price FN1119330E 1 1600 € 130,33 FNE119330 1 2000 € 153,40 » 19340 DRUM,3RD & 4TH CLUTCH Part Number Qty. Specifications Price FN1119340D 1 A (FN11-19-340E)
- 070918€ 43,69 FN1119340E 1 070918 - » 19350 PISTON,3RD & 4TH CLUTCH Part Number Qty. Specifications Price FN0119350B 1 € 19,05 » 19355 RING,SNAP Part Number Qty. Specifications Price FN1119355 1 € 2,40 » 19360 BAND,BRAKE Part Number Qty. Specifications Price FN1121310 1 A (FN21-21-310)
- 070510
BK1*** -625516€ 34,37 FN2121310 1 070510 -
BK1***625516-» 19362 PLATE,RETAINING Part Number Qty. Specifications Price FN1119362A 1 MICRO TEKUNO € 12,14 » 19370 PLATE,DRIVE Part Number Qty. Specifications Price FN1119370 3 1600 € 4,76 FNE119370 3 2000 € 5,91 » 193B1 RING,SNAP Part Number Qty. Specifications Price FN11193B1 1 T=1.4MM
ILLUST. NO.1€ 2,77 FN11193B2 1 T=1.6MM
ILLUST. NO.2€ 2,77 FN11193B3 1 T=1.8MM
ILLUST. NO.2€ 2,77 FN11193B4 1 T=2.0MM
ILLUST. NO.2€ 2,77 FN11193B5 1 T=2.2MM
ILLUST. NO.2€ 2,77 FN11193B6 1 T=1.2MM
ILLUST. NO.2€ 2,35 » 193K5 BEARING,NEEDLE THRUST Part Number Qty. Specifications Price FN11193K5 1 € 9,91 » 193M0 HUB,CLUCH-3/4 Part Number Qty. Specifications Price FN11193M0C 1 A (FN11-19-3M0D) » 193Z0 PLATE,SEAL-3/4 Part Number Qty. Specifications Price FN11193Z0 1 € 22,64 » 19449 RING,SNAP Part Number Qty. Specifications Price FN1119308 1 € 1,07 » 19498 PLATE,DISHED Part Number Qty. Specifications Price FN1119544 1 € 17,17 » 19499 PLATE,DRIVEN Part Number Qty. Specifications Price FNB119334 3 1600 € 9,19 FNE11933Y 3 2000 € 7,81 » 19500C CLUTCH Part Number Qty. Specifications Price FN1119500K 1 A (FN11-19-500L)
1600€ 374,83 FNE119500A 1 A (FNE1-19-500B)
2000€ 581,93 » 19506 PLATE,RETAINING Part Number Qty. Specifications Price FN11195K2 1 € 26,57 » 19520 RETAINER,SPRING-CLU.ONE W Part Number Qty. Specifications Price FN1119520 1 € 11,35 » 19533 GEAR,INTERNAL Part Number Qty. Specifications Price FN1119533B 1 € 75,21 » 19540 CARRIER,FRONT Part Number Qty. Specifications Price FN1119540C 1 » 1954X GEAR,PLANETARY Part Number Qty. Specifications Price FN111954XC 1 » 1954Y CARRIER & RING Part Number Qty. Specifications Price FN111954YC 1 » 19551 SPRING,PISTON RETAINER Part Number Qty. Specifications Price FN1119551 1 € 11,38 » 19557 STOPPER,REV. RETURN SPRING Part Number Qty. Specifications Price FN1119557A 1 € 3,94 » 19560 GEAR,SUN Part Number Qty. Specifications Price FN1119560A 1 A (FN11-19-560B) € 36,17 » 19561 PLATE,DRIVEN-REV.PISTON Part Number Qty. Specifications Price FN2119561 2 € 4,95 » 19567 RING,SNAP Part Number Qty. Specifications Price FN0119567 1 T=1.9MM € 0,38 » 1957X CARRIER,PLANETARY Part Number Qty. Specifications Price FN111957XA 1 » 19595 CLUTCH,ONE WAY Part Number Qty. Specifications Price FN11194G0 1 - 070301
BK1*** -605425FN12194G0 1 070301 -
BK1***605425-» 195E1 RING,SNAP Part Number Qty. Specifications Price FN1119411 1 T=1.0MM
ILLUST. NO.1€ 2,23 FN11195E1 1 T=1.4MM
ILLUST. NO.2€ 2,21 FN11195E2 1 T=1.6MM
ILLUST. NO.3€ 2,25 FN11195E3 1 T=1.8MM
ILLUST. NO.2€ 2,25 FN11195E4 1 T=2.0MM
ILLUST. NO.2€ 2,21 FN11195E5 1 T=2.2MM
ILLUST. NO.2€ 2,25 FN11195E6 1 T=1.2MM
ILLUST. NO.2€ 2,21 » 195H0 PISTON,REVERSE Part Number Qty. Specifications Price FN11195H0A 1 € 30,57 » 195J0 PLATE,DRIVE Part Number Qty. Specifications Price FN01195J0 2 € 10,13 » 19621 BEARING,NEEDLE Part Number Qty. Specifications Price FN1119304 1 € 12,27 » 19623 BEARING,NEEDLE Part Number Qty. Specifications Price FN1119307 1 € 9,30 » 1968X DRUM,BRAKE-2/4 Part Number Qty. Specifications Price FN111968XB 1 A (FN11-19-68XC) € 80,85 » 196G5 BEARING,NEEDLE ROLLER Part Number Qty. Specifications Price FN11196G5A 1 » 196T0 GEAR,SUN Part Number Qty. Specifications Price FN11196T0C 1 A (FN11-19-6T0D) » 21535 RETAINER,ONE WAY CLUTCH Part Number Qty. Specifications Price FN01194G8 1 € 6,92
