Mazda MAZDA 3 BK 2006-03 Mazda Valve System

Mazda parts catalog

Parts > MAZDA 3 > 2006-03 > Gasoline-engine 4-cylinder Transmission > Valve System(gasoline)(1300cc & 1600cc)

Search by part number:

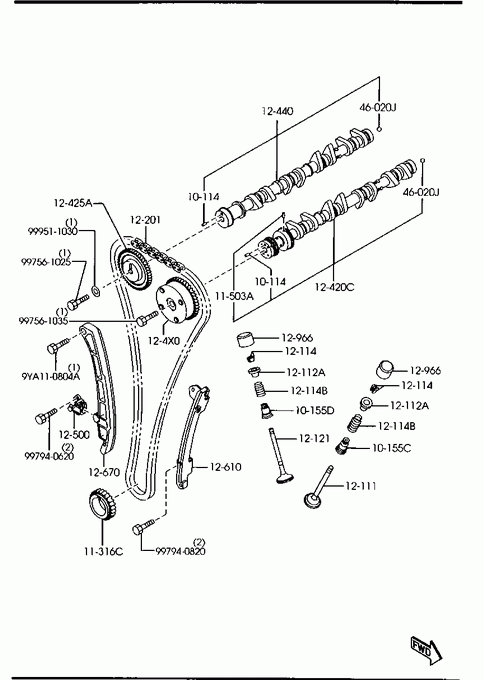

Valve System(gasoline)(1300cc & 1600cc)

PIN,SET-CAMSHAFT

Part Number	Qty.	Specifications	Price
F80110114	2		€ 2,75

» 10155C

SEAL,INLET VALVE

Part Number	Qty.	Specifications	Price
L80710155	8		€ 4,22

» 10155D

SEAL,EXHAUST VALVE

Part Number	Qty.	Specifications	Price
LF01101F5	8		€ 4,85

» 11316C

GEAR,TIMING

Part Number	Qty.	Specifications	Price
ZJ0111316	1		€ 20,20

» 11503A

PIN,KNOCK

Part Number	Qty.	Specifications	Price
J50111219	1		€ 1,42

» 12111

VALVE,INLET

Part Number	Qty.	Specifications	Price
ZJ0112111A	8	1300	€ 14,54
ZY0112111A	8	1600	€ 10,86

» 12112A

SEAT,VALVE SPG-UP.

Part Number	Qty.	Specifications	Price
LF0112113	16		€ 2,59

» 12114

COTTER,VALVE

Part Number	Qty.	Specifications	Price
LF0112114	32	AN (LF02-12-114)	€ 1,13

» 12114B

SPRING,VALVE

Part Number	Qty.	Specifications	Price
ZJ0112125	16

» 12121

VALVE,EXHAUST

Part Number	Qty.	Specifications	Price
ZJ0112121B	8	1300	€ 15,12
ZY0112121B	8	1600	€ 15,12

» 12201

CHAIN,TIMING

Part Number	Qty.	Specifications	Price
ZJ0112201	1		€ 43,74

» 12420C

CAMSHAFT,INTAKE

Part Number	Qty.	Specifications	Price
ZJ0112420B	1	1300
ZY0112420B	1	1600 - 070417 BK1* -620892**	€ 179,64
ZY0112420C	1	1600 070417 - BK1620892-*

» 12425A

PULLEY,CAMSHAFT

Part Number	Qty.	Specifications	Price
ZJ0112425	1		€ 38,67

» 12440

CAMSHAFT,EXHAUST

Part Number	Qty.	Specifications	Price
ZJ2012440	1	1300 - 070417 BK1* -620892**
ZJ2012440A	1	1300 070417 - BK1620892-*
ZY0112440B	1	1600 - 070417 BK1* -620892**	€ 179,64
ZY0112440C	1	1600 070417 - BK1620892-*

» 124X0

ACTR,VARIABLE V. TIMING

Part Number	Qty.	Specifications	Price
ZJ01124X0	1	AN (ZJ01-12-4X0A) - 070118 BK1* -590012**	€ 271,52
ZJ01124X0A	1	070118 - 070614 BK1590012-640723*
ZJ40124X0	1	070614 - BK1640723-*

» 12500

ADJUSTER,CHAIN

Part Number	Qty.	Specifications	Price
ZJ0112500B	1		€ 50,64

» 12610

GUIDE,CHAIN

Part Number	Qty.	Specifications	Price
ZJ0112610	1		€ 22,40

» 12670

LEVER,CHAIN

Part Number	Qty.	Specifications	Price
ZY0812670A	1		€ 20,53

» 12966

DISC,ADJUSTING

Part Number	Qty.	Specifications	Price
ZJ0212546	16	T=2.980MM - 070417 BK1* -620892**	€ 6,46
ZJ0212547	16	T=2.995MM - 070417 BK1* -620892**	€ 6,46
ZJ0212548	16	T=3.010MM - 070417 BK1* -620892**	€ 6,46
ZJ0212549	16	T=3.025MM - 070417 BK1* -620892**	€ 9,18
ZJ0212551	16	T=3.040MM - 070417 BK1* -620892**	€ 6,46
ZJ0212552	16	T=3.055MM - 070417 BK1* -620892**	€ 9,18
ZJ0212553	16	T=3.070MM - 070417 BK1* -620892**	€ 6,46
ZJ0212554	16	T=3.085MM - 070417 BK1* -620892**	€ 9,18
ZJ0212555	16	T=3.100MM - 070417 BK1* -620892**	€ 6,46
ZJ0212556	16	T=3.115MM - 070417 BK1* -620892**	€ 9,18
ZJ0212557	16	T=3.130MM - 070417 BK1* -620892**	€ 9,18
ZJ0212558	16	T=3.145MM - 070417 BK1* -620892**	€ 9,18
ZJ0212559	16	T=3.160MM - 070417 BK1* -620892**	€ 9,18
ZJ0212561	16	T=3.175MM - 070417 BK1* -620892**	€ 9,18
ZJ0212562	16	T=3.190MM - 070417 BK1* -620892**	€ 9,18
ZJ0212563	16	T=3.205MM - 070417 BK1* -620892**	€ 6,46
ZJ0212564	16	T=3.220MM - 070417 BK1* -620892**	€ 9,18
ZJ0212565	16	T=3.235MM - 070417 BK1* -620892**	€ 9,18
ZJ0212566	16	T=3.250MM - 070417 BK1* -620892**	€ 9,18
ZJ0212567	16	T=3.265MM - 070417 BK1* -620892**	€ 9,18
ZJ0212568	16	T=3.280MM - 070417 BK1* -620892**	€ 9,18
ZJ0212569	16	T=3.295MM - 070417 BK1* -620892**	€ 9,18
ZJ0212571	16	T=3.310MM - 070417 BK1* -620892**	€ 9,18
ZJ0212572	16	T=3.325MM - 070417 BK1* -620892**	€ 9,18
ZJ0212573	16	T=3.340MM - 070417 BK1* -620892**	€ 9,18
ZJ0212574	16	T=3.355MM - 070417 BK1* -620892**	€ 9,18
ZJ0212575	16	T=3.370MM - 070417 BK1* -620892**	€ 9,18
ZJ3812546	16	T=2.980MM 070417 - BK1620892-*
ZJ3812547	16	T=2.995MM 070417 - BK1620892-*
ZJ3812548	16	T=3.010MM 070417 - BK1620892-*
ZJ3812549	16	T=3.025MM 070417 - BK1620892-*
ZJ3812551	16	T=3.040MM 070417 - BK1620892-*
ZJ3812552	16	T=3.055MM 070417 - BK1620892-*
ZJ3812553	16	T=3.070MM 070417 - BK1620892-*
ZJ3812554	16	T=3.085MM 070417 - BK1620892-*
ZJ3812555	16	T=3.100MM 070417 - BK1620892-*
ZJ3812556	16	T=3.115MM 070417 - BK1620892-*
ZJ3812557	16	T=3.130MM 070417 - BK1620892-*
ZJ3812558	16	T=3.145MM 070417 - BK1620892-*
ZJ3812559	16	T=3.160MM 070417 - BK1620892-*
ZJ3812561	16	T=3.175MM 070417 - BK1620892-*
ZJ3812562	16	T=3.190MM 070417 - BK1620892-*
ZJ3812563	16	T=3.205MM 070417 - BK1620892-*
ZJ3812564	16	T=3.220MM 070417 - BK1620892-*
ZJ3812565	16	T=3.235MM 070417 - BK1620892-*
ZJ3812566	16	T=3.250MM 070417 - BK1620892-*
ZJ3812567	16	T=3.265MM 070417 - BK1620892-*
ZJ3812568	16	T=3.280MM 070417 - BK1620892-*
ZJ3812569	16	T=3.295MM 070417 - BK1620892-*
ZJ3812571	16	T=3.310MM 070417 - BK1620892-*
ZJ3812572	16	T=3.325MM 070417 - BK1620892-*
ZJ3812573	16	T=3.340MM 070417 - BK1620892-*
ZJ3812574	16	T=3.355MM 070417 - BK1620892-*
ZJ3812575	16	T=3.370MM 070417 - BK1620892-*
ZJY112541	16	T=2.855MM - 070417 BK1* -620892**	€ 21,44
ZJY112542	16	T=2.880MM - 070417 BK1* -620892**	€ 21,44
ZJY112543	16	T=2.905MM - 070417 BK1* -620892**	€ 21,44
ZJY112544	16	T=2.930MM - 070417 BK1* -620892**	€ 21,44
ZJY112545	16	T=2.955MM - 070417 BK1* -620892**	€ 11,93
ZJY112576	16	T=3.395MM - 070417 BK1* -620892**
ZJY112577	16	T=3.420MM - 070417 BK1* -620892**	€ 21,99
ZJY112578	16	T=3.445MM - 070417 BK1* -620892**	€ 21,99
ZJY112579	16	T=3.470MM - 070417 BK1* -620892**	€ 21,99
ZJY112581	16	T=3.495MM - 070417 BK1* -620892**	€ 21,99
ZJY212541	16	T=2.855MM 070417 - BK1620892-*
ZJY212542	16	T=2.880MM 070417 - BK1620892-*	€ 9,35
ZJY212543	16	T=2.905MM 070417 - BK1620892-*
ZJY212544	16	T=2.930MM 070417 - BK1620892-*	€ 9,35
ZJY212545	16	T=2.955MM 070417 - BK1620892-*	€ 11,93
ZJY212576	16	T=3.395MM 070417 - BK1620892-*
ZJY212577	16	T=3.420MM 070417 - BK1620892-*
ZJY212578	16	T=3.445MM 070417 - BK1620892-*
ZJY212579	16	T=3.470MM 070417 - BK1620892-*
ZJY212581	16	T=3.495MM 070417 - BK1620892-*

» 46020J

BALL,STEEL

Part Number	Qty.	Specifications	Price
996113000	2		€ 1,57

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997561035	1		€ 2,78

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999511030	1		€ 0,51

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9YA110804A	1		€ 7,01

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997561025	1		€ 2,51

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940620	1		€ 3,14

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

Valve System(gasoline)(1300cc & 1600cc)
