Mazda MAZDA 3 BK 2006-03 Mazda Cylinder Head & Cover

Mazda parts catalog

Parts > MAZDA 3 > 2006-03 > Gasoline-engine 4-cylinder Transmission > Cylinder Head & Cover(gasoline)(1300cc & 1600cc)

Search by part number:

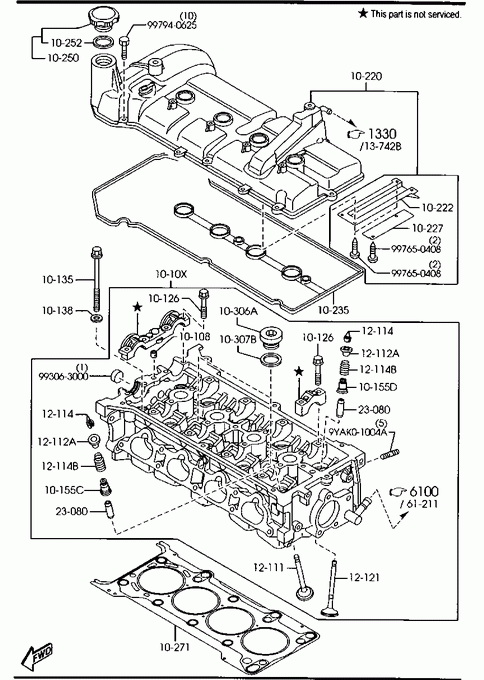

Cylinder Head & Cover(gasoline)(1300cc & 1600cc)

PIN,TUBULAR

Part Number	Qty.	Specifications	Price
ZJ0110108	1

» 1010X

HEAD,CYLINDER-SUB

Part Number	Qty.	Specifications	Price
ZJ201001X	1	AN (ZJ20-10-01XA) 1300 - 070312 BK1* -608718**	€ 1110,48
ZJ201001XA	1	AN (ZJ20-10-01XB) 1300 070312 - 070801 BK1608718-659123*
ZJ201001XB	1	1300 070801 - BK1659123-*
ZY371001X	1	AN (ZY37-10-01XA) 1600 - 070312 BK1* -608718**	€ 997,19
ZY371001XA	1	AN (ZY37-10-01XB) 1600 070312 - 070801 BK1608718-659123*
ZY371001XB	1	1600 070801 - BK1659123-*

» 10126

BOLT,CAMSHAFT CAP

Part Number	Qty.	Specifications	Price
KL0210126	20		€ 2,49

» 10135

BOLT,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
ZJ0110135	10		€ 4,73

» 10138

WASHER,PLAIN CYL. HEAD

Part Number	Qty.	Specifications	Price
ZJ0110138	10		€ 1,73

» 10155C

SEAL,INLET VALVE

Part Number	Qty.	Specifications	Price
L80710155	8		€ 4,22

» 10155D

SEAL,EXHAUST VALVE

Part Number	Qty.	Specifications	Price
LF01101F5	8		€ 4,85

» 10220

COVER,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
ZJ2010220	1		€ 109,78

» 10222

PLATE,OIL BAFFLE

Part Number	Qty.	Specifications	Price
ZJ0110222	1

» 10227

PLATE,BAFFLE

Part Number	Qty.	Specifications	Price
ZJ0110227	1

» 10235

GASKET,HEAD COVER

Part Number	Qty.	Specifications	Price
ZJ2010235	1		€ 9,61

» 10250

CAP,OIL FILLER

Part Number	Qty.	Specifications	Price
045310250A	1		€ 10,63

» 10252

GASKET

Part Number	Qty.	Specifications	Price
032410252	1		€ 2,33

» 10271

GASKET,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
ZJ0110271A	1	1300	€ 40,33
ZY0110271A	1	1600	€ 40,33

» 10306A

PLUG,BLIND

Part Number	Qty.	Specifications	Price
Z50110C05A	2		€ 8,20

» 10307B

GASKET,TOP DECK

Part Number	Qty.	Specifications	Price
Z50110307	2		€ 5,56

» 12111

VALVE,INLET

Part Number	Qty.	Specifications	Price
ZJ0112111A	8	1300	€ 14,54
ZY0112111A	8	1600	€ 10,86

» 12112A

SEAT,VALVE SPG-UP.

Part Number	Qty.	Specifications	Price
LF0112113	16		€ 2,59

» 12114

COTTER,VALVE

Part Number	Qty.	Specifications	Price
LF0112114	32	AN (LF02-12-114)	€ 1,13

» 12114B

SPRING,VALVE

Part Number	Qty.	Specifications	Price
ZJ0112125	16

» 12121

VALVE,EXHAUST

Part Number	Qty.	Specifications	Price
ZJ0112121B	8	1300	€ 15,12
ZY0112121B	8	1600	€ 15,12

» 23080

GUIDE,VALVE

Part Number	Qty.	Specifications	Price
ZJY110281	16

» 90857

STUD

Part Number	Qty.	Specifications	Price
9YAK01004A	1

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997650408	1		€ 0,58

» 99306

CAP,SEALING

Part Number	Qty.	Specifications	Price
993063000	1		€ 1,90

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940625	1		€ 1,03

Cylinder Head & Cover(gasoline)(1300cc & 1600cc)
