- Parts > MAZDA 3 > 2003-06 > Body Interior Trim > Rear Door Mechanisms(4-door)
- Search by part number:
-

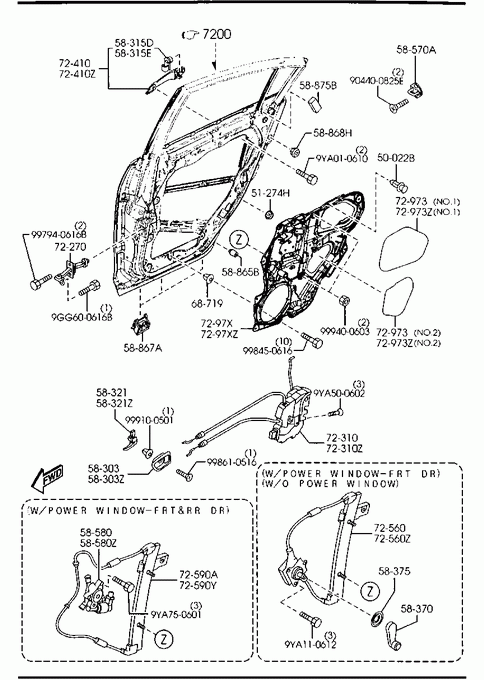

Rear Door Mechanisms(4-door)
-
» 50022B FASTENER Part Number Qty. Specifications Price GD7A50EA1 2 € 1,32 » 51274H GROMMET Part Number Qty. Specifications Price BF6751261 2 € 2,01 » 58303 COVER(R),IN.HANDLE Part Number Qty. Specifications Price D35058303A 1 » 58303Z COVER(L),IN.HANDLE Part Number Qty. Specifications Price D35059303A 1 » 58315D CLIP (R) Part Number Qty. Specifications Price GT2G59315 1 € 1,76 » 58315E CLIP (L) Part Number Qty. Specifications Price GT2G58315 1 € 1,76 » 58321 HANDLE(R),INNER Part Number Qty. Specifications Price D35058330D 1 INTERIOR COLOR D35158330C 1 SILVER
031101 -
BK1***126712-D35258330 1 SILVER
- 031101
BK1*** -126712€ 17,93 » 58321Z HANDLE(L),INNER Part Number Qty. Specifications Price D35059330D 1 INTERIOR COLOR D35159330C 1 SILVER
031101 -
BK1***126712-D35259330 1 SILVER
- 031101
BK1*** -126712€ 17,93 » 58370 HANDLE,REGULATOR Part Number Qty. Specifications Price B25D58580A 2 W/POWER WINDOW-FRT DR
W/O POWER WINDOW
- 060301
BK1*** -382442B25D58580B 2 W/POWER WINDOW-FRT DR
W/O POWER WINDOW
060301 -
BK1***382442-» 58375 ESCUTCHEON Part Number Qty. Specifications Price B00158582A 2 W/POWER WINDOW-FRT DR
W/O POWER WINDOW» 58570A STRIKER Part Number Qty. Specifications Price B25D58361A 2 ARVINMERITOR JAPAN € 9,67 » 58580 MOTOR(R),WINDOW Part Number Qty. Specifications Price GJ6A5958XC 1 AN (GJ6A-59-58XD)
W/POWER WINDOW-FRT & RR DR
- 031201
BK1*** -133399€ 29,98 GJ6A5958XD 1 AN (GJ6A-59-58XE)
W/POWER WINDOW-FRT & RR DR
031201 - 040123
BK1***133399-143255€ 29,98 GJ6A5958XF 1 W/POWER WINDOW-FRT & RR DR
040123 -
BK1***143255-€ 29,98 » 58580Z MOTOR(L),WINDOW Part Number Qty. Specifications Price G22C5858XC 1 AN (G22C-58-58XD)
W/POWER WINDOW-FRT & RR DR
- 031201
BK1*** -133399€ 44,19 G22C5858XD 1 AN (G22C-58-58XE)
W/POWER WINDOW-FRT & RR DR
031201 - 040123
BK1***133399-143255€ 44,19 G22C5858XF 1 W/POWER WINDOW-FRT & RR DR
040123 -
BK1***143255-€ 29,17 » 58865B CUSHION,RUBBER Part Number Qty. Specifications Price G06758873 2 € 2,49 » 58867A VALVE,ONE WAY-DOOR INNER Part Number Qty. Specifications Price GA2A58867A 6 € 2,55 » 58868H PLUG,HOLE Part Number Qty. Specifications Price BP4K58866 2 € 1,17 » 58875B PAD Part Number Qty. Specifications Price GJ6E58863A 2 € 2,27 » 68719 GROMMET,SCREW Part Number Qty. Specifications Price GJ6A58975 20 € 1,00 » 72270 CHECKER Part Number Qty. Specifications Price BP4K72270D 2 AN (BP4K-72-270E)
- 040301
BK1*** -152412€ 21,22 BP4K72270E 2 040301 -
BK1***152412-€ 22,07 » 72310 LOCK(R),DOOR Part Number Qty. Specifications Price BP4K72310B 1 A (BP4K-72-310C)
W/O SUPER LOCK SYS.€ 92,89 BP4P72310B 1 AN (BP4P-72-310C)
W/SUPER LOCK SYS.
- 030825
BK1*** -105095€ 123,93 BP4P72310C 1 W/SUPER LOCK SYS.
030825 -
BK1***105095-€ 128,94 » 72310Z LOCK(L),DOOR Part Number Qty. Specifications Price BP4K73310B 1 A (BP4K-73-310C)
W/O SUPER LOCK SYS.€ 92,89 BP4P73310B 1 AN (BP4P-73-310C)
W/SUPER LOCK SYS.
- 030825
BK1*** -105095€ 123,93 BP4P73310C 1 W/SUPER LOCK SYS.
030825 -
BK1***105095-€ 128,94 » 72410 HANDLE(R),OUT-R.DOOR Part Number Qty. Specifications Price BP4R58410 1 AN (BP4R-58-410A)
BLACK
- 050218
BK1*** -257909€ 38,13 BP4R58410A 1 AN (BP4R-58-410B)
BLACK
050218 - 051101
BK1***257909-337978€ 38,13 BP4R58410B 1 AN (BP4R-58-410C)
BLACK
051101 -
BK1***337978-€ 38,89 GJ6A58410D 1 BODY COLOR
- 051101
BK1*** -337978GJ6A58410F 1 BODY COLOR
051101 - 060301
BK1***337978-382442GJ6A58410G 1 BODY COLOR
060301 -
BK1***382442-» 72410Z HANDLE(L),OUT-R.DOOR Part Number Qty. Specifications Price DE6059410B 1 AN (DE60-59-410C)
BLACK
- 050218
BK1*** -257909€ 38,73 DE6059410C 1 AN (DE60-59-410D)
BLACK
050218 - 051101
BK1***257909-337978€ 39,50 DE6059410D 1 AN (DE60-59-410E)
BLACK
051101 -
BK1***337978-€ 34,00 G22C59410C 1 BODY COLOR
- 051101
BK1*** -337978G22C59410F 1 BODY COLOR
051101 - 060301
BK1***337978-382442G22C59410G 1 BODY COLOR
060301 -
BK1***382442-» 72560 REGULATOR(R),WINDOW Part Number Qty. Specifications Price BP4L72560B 1 AN (BP4L-72-560C)
W/POWER WINDOW-FRT DR
W/O POWER WINDOW
- 050401
BK1*** -273631€ 41,66 BP4L72560C 1 A (BP4L-72-560D)
W/POWER WINDOW-FRT DR
W/O POWER WINDOW
050401 -
BK1***273631-€ 25,12 » 72560Z REGULATOR(L),WINDOW Part Number Qty. Specifications Price BP4L73560B 1 AN (BP4L-73-560C)
W/POWER WINDOW-FRT DR
W/O POWER WINDOW
- 050401
BK1*** -273631€ 41,66 BP4L73560C 1 A (BP4L-73-560D)
W/POWER WINDOW-FRT DR
W/O POWER WINDOW
050401 -
BK1***273631-€ 25,12 » 72590A FRAME(R),WINDOW REG. Part Number Qty. Specifications Price BP4K72590B 1 A (BP4K-72-590C)
W/POWER WINDOW-FRT & RR DR
- 040601
BK1*** -175590€ 50,78 BP4K72590C 1 AN (BP4K-72-590D)
W/POWER WINDOW-FRT & RR DR
040601 - 050401
BK1***175590-273631€ 50,78 BP4K72590D 1 A (BP4K-72-590E)
W/POWER WINDOW-FRT & RR DR
050401 -
BK1***273631-€ 48,36 » 72590Y FRAME(L),WINDOW REG. Part Number Qty. Specifications Price BP4K73590B 1 A (BP4K-73-590C)
W/POWER WINDOW-FRT & RR DR
- 040601
BK1*** -175590€ 50,78 BP4K73590C 1 AN (BP4K-73-590D)
W/POWER WINDOW-FRT & RR DR
040601 - 050401
BK1***175590-273631€ 50,78 BP4K73590D 1 A (BP4K-73-590E)
W/POWER WINDOW-FRT & RR DR
050401 -
BK1***273631-€ 48,36 » 72973 COVER(RR,R),HOLE-DOOR IN. Part Number Qty. Specifications Price BP4K72973 1 ILLUST. NO.1 € 6,73 BP4L72973 1 ILLUST. NO.2 € 5,38 » 72973Z COVER(RR,L),HOLE-DOOR IN. Part Number Qty. Specifications Price BP4K73973 1 ILLUST. NO.1 € 6,73 BP4L73973 1 ILLUST. NO.2 € 5,38 » 7297X CARRIER(RR,R),DOOR MODULE Part Number Qty. Specifications Price BP4K7297XD 1 A (BP4K-72-97XE)
W/POWER WINDOW-FRT & RR DR
- 040819
BK1*** -196702€ 54,46 BP4K7297XE 1 AN (BP4K-72-97XF)
W/POWER WINDOW-FRT & RR DR
040819 - 051220
BK1***196702-357439€ 55,55 BP4K7297XF 1 W/POWER WINDOW-FRT & RR DR
051220 -
BK1***357439-€ 40,15 BP4L7297XD 1 A (BP4L-72-97XE)
W/POWER WINDOW-FRT DR
W/O POWER WINDOW
- 040819
BK1*** -196702€ 54,46 BP4L7297XE 1 AN (BP4L-72-97XF)
W/POWER WINDOW-FRT DR
W/O POWER WINDOW
040819 - 051220
BK1***196702-357439€ 55,55 BP4L7297XF 1 W/POWER WINDOW-FRT DR
W/O POWER WINDOW
051220 -
BK1***357439-€ 40,15 » 7297XZ CARRIER(RR,L),DOOR MODULE Part Number Qty. Specifications Price BP4K7397XD 1 A (BP4K-73-97XE)
W/POWER WINDOW-FRT & RR DR
- 040819
BK1*** -196702€ 45,13 BP4K7397XE 1 AN (BP4K-73-97XF)
W/POWER WINDOW-FRT & RR DR
040819 - 051220
BK1***196702-357439€ 45,13 BP4K7397XF 1 W/POWER WINDOW-FRT & RR DR
051220 -
BK1***357439-€ 46,03 BP4L7397XD 1 A (BP4L-73-97XE)
W/POWER WINDOW-FRT DR
W/O POWER WINDOW
- 040819
BK1*** -196702BP4L7397XE 1 AN (BP4L-73-97XF)
W/POWER WINDOW-FRT DR
W/O POWER WINDOW
040819 - 051220
BK1***196702-357439€ 45,13 BP4L7397XF 1 W/POWER WINDOW-FRT DR
W/O POWER WINDOW
051220 -
BK1***357439-€ 46,03 » 90720 SCREW Part Number Qty. Specifications Price 904400825E 1 € 0,51 » 90780 BOLT Part Number Qty. Specifications Price 9YA010610 1 € 1,53 » 90780 BOLT Part Number Qty. Specifications Price 9YA750601 1 € 1,24 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400603 1 € 2,05 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998450616 1 € 1,53 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998610516 1 € 0,58 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 9GG600616B 1 € 0,81 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 9YA500602 1 € 0,58 » 99601 BOLT Part Number Qty. Specifications Price 9YA110612 1 € 2,33 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940616B 1 € 1,15 » 99910 GROMMET,SCREW Part Number Qty. Specifications Price 999100501 1 € 1,33
