Mazda MAZDA 3 BK 2003-06 Mazda Air Conditioner 01/02 (GASOLINE) 02/02 (DIESEL)

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Interior Trim > Air Conditioner(1300cc & 1600cc)

Search by part number:

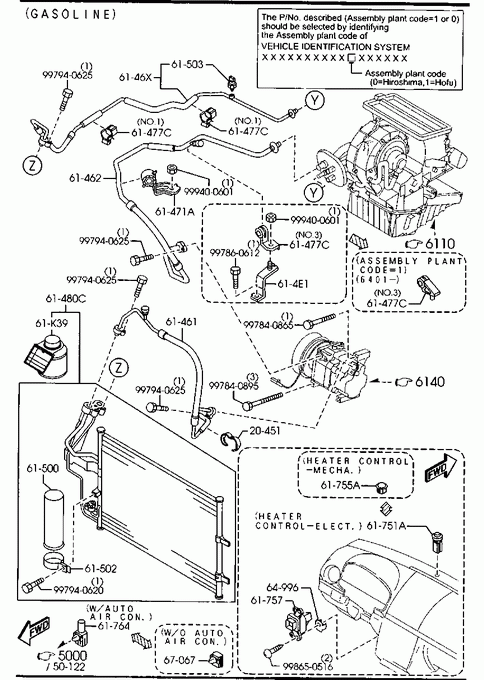

Air Conditioner(1300cc & 1600cc)

01/02 (GASOLINE)
02/02 (DIESEL)

» 20451

CLIP

Part Number	Qty.	Specifications	Price
B61220468	1	GASOLINE	€ 1,14

» 61461

HOSE,FLEXIBLE-HIGH

Part Number	Qty.	Specifications	Price
BP4K61461	1	GASOLINE	€ 78,13
BP8F61461A	1	DIESEL	€ 98,78

» 61462

HOSE,FLEXIBLE-LOW

Part Number	Qty.	Specifications	Price
BN8V61462	1	ASSEMBLY PLANT CODE=0 GASOLINE 050501 - BK1281438-*
BN9J61462A	1	(DIESEL>EURO4)	€ 62,14
BP4K61462C	1	A (BP4K-61-462D) ASSEMBLY PLANT CODE=1 GASOLINE - 060401 BK1* -386025**	€ 100,98
BP4K61462D	1	ASSEMBLY PLANT CODE=1 GASOLINE 060401 - BK1386025-*	€ 103,00
BP8F61462B	1	(DIESEL>EURO3)

» 6146X

PIPE,COOLER

Part Number	Qty.	Specifications	Price
BN8V6146X	1	ASSEMBLY PLANT CODE=0 050501 - BK1281438-*
BP4K6146X	1	ASSEMBLY PLANT CODE=1 GASOLINE	€ 118,37
BP8F6146XA	1	DIESEL	€ 165,70

» 61471A

CLIP

Part Number	Qty.	Specifications	Price
BP4K6146YA	1	GASOLINE
BP4S6146YA	1	DIESEL

» 61477C

CLIP

Part Number	Qty.	Specifications	Price
B30D61477	1	ILLUST. NO.2 DIESEL
B36R61477	1	A (B36R-61-477A) ILLUST. NO.3 ASSEMBLY PLANT CODE=1 060401 - BK1386025-*
BJ0M61477	2	ILLUST. NO.1	€ 1,35
BP4K61474A	1	ILLUST. NO.3 ASSEMBLY PLANT CODE=1 - 060401 BK1* -386025**

» 61480C

CONDENSER & OIL SET

Part Number	Qty.	Specifications	Price
BPYK6148Z	1	AN (BPYK-61-48ZA) GASOLINE	€ 323,52

» 614E1

BRACKET,COOLER PIPE

Part Number	Qty.	Specifications	Price
BP4K614E1A	1	ASSEMBLY PLANT CODE=0 - 050627 BK1* -299302**
C235614E1	1	AN (C235-61-4E1A) ASSEMBLY PLANT CODE=0 050501 - 050627 BK1281438-299302*

» 61500

TANK,LIQUID

Part Number	Qty.	Specifications	Price
BP4K61501	1	AN (BP4K-61-501A) GASOLINE	€ 56,39
BP8F615A0C	1	DIESEL	€ 257,95

» 61502

BRACKET,TANK

Part Number	Qty.	Specifications	Price
BP4K61502	1	GASOLINE	€ 9,78

» 61503

SWITCH,PRESSURE

Part Number	Qty.	Specifications	Price
B01A61503	1	GASOLINE	€ 102,51

» 61751A

SENSOR,SUN

Part Number	Qty.	Specifications	Price
GJ6E61751B	1	HEATER CONTROL-ELECT, W/AUTO AIR CON.	€ 26,45

» 61755A

COVER,SUN SENSOR

Part Number	Qty.	Specifications	Price
C00461799A	1	HEATER CONTROL-MECHA, W/O AIR CON. HEATER CONTROL-MECHA, W/MANUAL AIR CON. ECE	€ 11,92

» 61757

SENSOR,INCAR

Part Number	Qty.	Specifications	Price
BP4M61757A	1	HEATER CONTROL-ELECT, W/AUTO AIR CON.	€ 90,28

» 61764

SENSOR,AMBIENT

Part Number	Qty.	Specifications	Price
G51861764	1	HEATER CONTROL-ELECT, W/AUTO AIR CON.	€ 40,49

» 61K39

OIL,COMPRESSOR

Part Number	Qty.	Specifications	Price
C00361K39	1	40CC GASOLINE	€ 45,46

» 64996

NUT,EXPANSION

Part Number	Qty.	Specifications	Price
GJ2164996	2	HEATER CONTROL-ELECT, W/AUTO AIR CON.	€ 0,51

» 67067

COVER,CONNECTOR

Part Number	Qty.	Specifications	Price
G22C67TC2	1	HEATER CONTROL-MECHA, W/O AIR CON. HEATER CONTROL-MECHA, W/MANUAL AIR CON. (ECE>GASOLINE) 041101 - BK1221544-*	€ 3,91

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997840895	1		€ 2,61

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516	1		€ 0,51

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840865	1		€ 2,20

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940620	1		€ 3,14

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940625	1		€ 1,03

Air Conditioner(1300cc & 1600cc)
