Heater 01/03 ((GASOLINE)>(1300&1600)),((GASOLINE)>(2000)>(MT)) 02/03 ((GASOLINE)>(2000)>(AT)) 03/03 (DIESEL)

Heater |

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Interior Trim > Heater

Search by part number:

Heater

01/03 ((GASOLINE)>(1300&1600)),((GASOLINE)>(2000)>(MT))

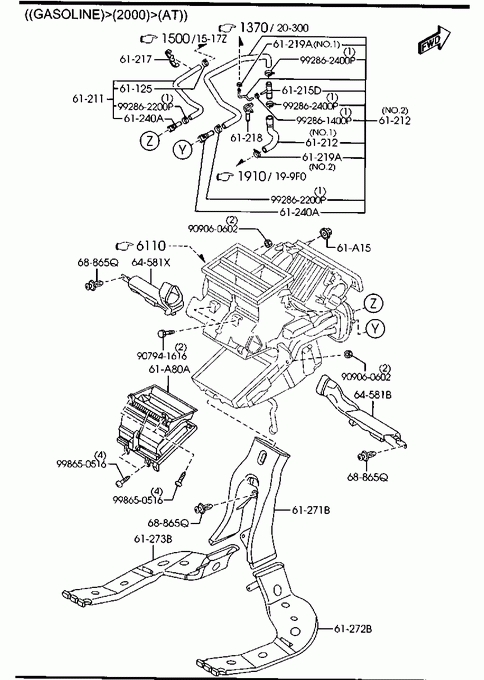

02/03 ((GASOLINE)>(2000)>(AT))
03/03 (DIESEL)

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B32T61242	2	(GASOLINE>2000>MANUAL TRANSMISSION)	€ 4,59

» 61211

HOSE NO.1,WATER

Part Number	Qty.	Specifications	Price
BP4K6124XE	1	AN (BP4K-61-24XF) (GASOLINE>1300) (GASOLINE>1600) - 031001 BK1* -118551**	€ 32,03
BP4K6124XF	1	(GASOLINE>1300) (GASOLINE>1600) 031001 - BK1118551-*	€ 27,08
BP4S6124XD	1	AN (BP4S-61-24XE) (GASOLINE>2000) - 031001 BK1* -118551**	€ 32,03
BP4S6124XE	1	(GASOLINE>2000) 031001 - BK1118551-*	€ 33,32
BP8F6124XB	1	DIESEL	€ 48,55

» 61212

HOSE NO.2,WATER

Part Number	Qty.	Specifications	Price
B32T61212	1	ILLUST. NO.1 (GASOLINE>2000>AUTOMATIC TRANSMISSION)
BP0D61212	1	ILLUST. NO.1 (GASOLINE>2000>MANUAL TRANSMISSION)	€ 27,53
BP4K6124YD	1	AN (BP4K-61-24YE) ILLUST. NO.2 (GASOLINE>1300) (GASOLINE>1600) - 031001 BK1* -118551**	€ 27,87
BP4K6124YE	1	ILLUST. NO.2 (GASOLINE>1300) (GASOLINE>1600) 031001 - BK1118551-*	€ 29,00
BP4T6124YH	1	AN (BP4T-61-24YJ) ILLUST. NO.2 (GASOLINE>2000>MANUAL TRANSMISSION) - 031001 BK1* -118551**	€ 69,86
BP4T6124YJ	1	ILLUST. NO.2 (GASOLINE>2000>MANUAL TRANSMISSION) 031001 - BK1118551-*	€ 72,69
BP7B6124YB	1	ILLUST. NO.2 (GASOLINE>2000>AUTOMATIC TRANSMISSION)
BP8F6124YB	1	ILLUST. NO.2 (DIESEL>EURO3)	€ 26,06
BR1P6124YC	1	ILLUST. NO.2 (DIESEL>EURO4)	€ 28,42

» 61215D

PIPE,JOINT

Part Number	Qty.	Specifications	Price
C23561225	1	(GASOLINE>2000)

» 61217

CLIP,HOSE

Part Number	Qty.	Specifications	Price
BP4S61217	1	(GASOLINE>2000)

» 61218

CLIP,HOSE

Part Number	Qty.	Specifications	Price
BP4S61218A	1	(GASOLINE>2000)

» 61219A

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
BP0D61242	1	ILLUST. NO.1 (GASOLINE>2000)	€ 2,52
BP4K61242	2	ILLUST. NO.2 (GASOLINE>1300) (GASOLINE>1600)	€ 4,22

» 61240A

CONNECTOR,WATER HOSE

Part Number	Qty.	Specifications	Price
B45561240A	2		€ 11,74

» 61271B

DUCT NO.1,REAR

Part Number	Qty.	Specifications	Price
BP4K61271B	1		€ 16,78

» 61272B

DUCT NO.2,REAR

Part Number	Qty.	Specifications	Price
BP4K61272C	1	W/4-SPEAKER W/6-SPEAKER	€ 18,17
BR8W61272A	1	AN (BR8W-61-272B) W/7-SPEAKER 041101 - 041119 BK1221544-229049*
BR8W61272B	1	W/7-SPEAKER 041119 - BK1229049-*

» 61273B

DUCT NO.3,REAR

Part Number	Qty.	Specifications	Price
BP4K61273C	1	W/4-SPEAKER W/6-SPEAKER	€ 18,17
BR8W61273A	1	AN (BR8W-61-273B) W/7-SPEAKER 041101 - 041119 BK1221544-229049*
BR8W61273B	1	W/7-SPEAKER 041119 - BK1229049-*

» 61A15

NUT

Part Number	Qty.	Specifications	Price
BP4K61205	1		€ 2,18

» 61A80A

CASE,HEATER UNIT

Part Number	Qty.	Specifications	Price
BP4K6113YC	1	AN (BP4K-61-13YD) GASOLINE - 040908 BK1* -201501**
BP4K6113YD	1	GASOLINE 040908 - BK1201501-*	€ 27,61
BP8F6113YD	1	AN (BP8F-61-13YE) DIESEL - 040908 BK1* -201501**	€ 790,17
BP8F6113YE	1	DIESEL 040908 - BK1201501-*

» 64581B

DUCT(R),HEATER SIDE

Part Number	Qty.	Specifications	Price
BP4K61157A	1	AN (BP4K-61-157B) - 050601 BK1* -290070**	€ 17,57
BP4K61157B	1	050601 - BK1290070-*

» 64581X

DUCT(L),HEATER SIDE

Part Number	Qty.	Specifications	Price
BP4K61158A	1	AN (BP4K-61-158B) - 050601 BK1* -290070**	€ 17,57
BP4K61158B	1	050601 - BK1290070-*

» 68865Q

FASTENER

Part Number	Qty.	Specifications	Price
GJ2168885B	3

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907941616	1		€ 2,78

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909060602	1		€ 0,48

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516	1		€ 0,51

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992861400P	1		€ 2,44

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862200P	1		€ 2,73

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862400P	1		€ 2,42
