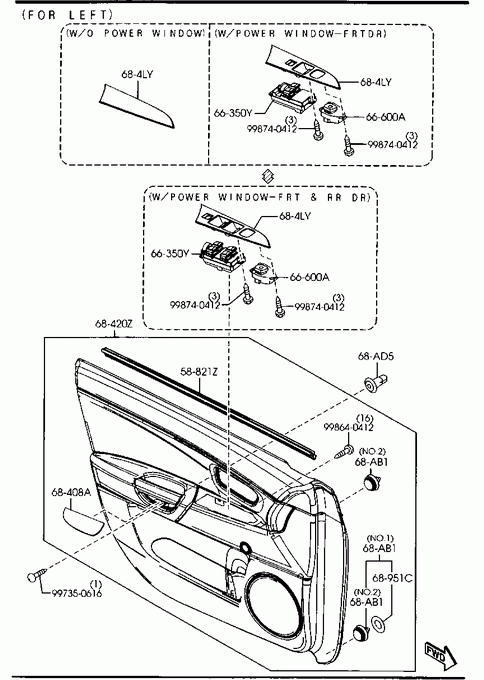

Front Door Trims & Related Parts 01/02 (FOR RIGHT) 02/02 (FOR LEFT)

Front Door Trims & Related Parts |

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Interior Trim > Front Door Trims & Related Parts

Search by part number:

Front Door Trims & Related Parts

WEATHERSTRIP(L),INN.

Part Number	Qty.	Specifications	Price
BP4K59821	1	AN (BP4K-59-821A) - 041201 BK1* -233030**	€ 12,92
BP4K59821A	1	041201 - BK1233030-*	€ 13,44

» 66350Y

SWITCH(L),POWER WIND

Part Number	Qty.	Specifications	Price
BP4K66350	1	W/POWER WINDOW-FRT DR	€ 108,30
BP4L66350	1	W/POWER WINDOW-FRT & RR DR	€ 148,38

» 66600A

SWITCH,RMT.MIRROR

Part Number	Qty.	Specifications	Price
BJ0E66600	1	KOSTAL JAPAN W/POWER WINDOW	€ 85,77

» 68408A

CAP(L)

Part Number	Qty.	Specifications	Price
BP4K68407C	1

» 68420Z

TRIM(L),DOOR

Part Number	Qty.	Specifications	Price
BP4K6845YG	1	(TDE-LEATHER>W/POWER WINDOW>W/7-SPEAKER) - 030901 BK1* -106893**
BP4K6845YH	1	TDC-CLOTH'D' 030901 - 040901 BK1106893-199903*
BP4K6845YJ	1	(TDC-CLOTH'D'>W/POWER WINDOW>W/4-SPEAKER) (TDC-CLOTH'D'>W/POWER WINDOW>W/6-SPEAKER) 040901 - 041201 BK1199903-233030*
BP4K6845YK	1	(TDC-CLOTH'D'>W/POWER WINDOW>W/4-SPEAKER) (TDC-CLOTH'D'>W/POWER WINDOW>W/6-SPEAKER) 041201 - 050301 BK1233030-261860*
BP4L6845YG	1	(TDA-CLOTH'A'>W/O POWER WINDOW) - 030901 BK1* -106893**
BP4L6845YH	1	(TDA-CLOTH'A'>W/O POWER WINDOW) 030901 - 041201 BK1106893-233030*
BP4L6845YJ	1	(TDA-CLOTH'A'>W/O POWER WINDOW) 041201 - 050301 BK1233030-261860*
BP4M6845YG	1	(TDA-CLOTH'A'>W/POWER WINDOW) - 030901 BK1* -106893**
BP4M6845YH	1	(TDA-CLOTH'A'>W/POWER WINDOW) 030901 - 041201 BK1106893-233030*
BP4M6845YJ	1	(TDA-CLOTH'A'>W/POWER WINDOW) 041201 - 050301 BK1233030-261860*
BP4N6845YG	1	TDB-CLOTH'C' - 030901 BK1* -106893**
BP4N6845YH	1	TDB-CLOTH'C' 030901 - 041201 BK1106893-233030*
BP4N6845YJ	1	TDB-CLOTH'C' 041201 - 050301 BK1233030-261860*
BP4S6845Y	1	(TDC-CLOTH'D'>W/POWER WINDOW>W/7-SPEAKER) 041101 - 041201 BK1221544-233030*
BP4S6845YA	1	(TDC-CLOTH'D'>W/POWER WINDOW>W/7-SPEAKER) 041201 - 050301 BK1233030-261860*
BP5C6845YG	1	TDD-CLOTH'B' - 030901 BK1* -106893**
BP5C6845YH	1	TDD-CLOTH'B' 030901 - 041201 BK1106893-233030*
BP5C6845YJ	1	TDD-CLOTH'B' 041201 - 050301 BK1233030-261860*
BP6R6845Y	1	(TDE-LEATHER>W/POWER WINDOW>W/4-SPEAKER) (TDE-LEATHER>W/POWER WINDOW>W/6-SPEAKER) 050301 - 060301 BK1261860-382442*
BP6R6845YA	1	(TDE-LEATHER>W/POWER WINDOW>W/4-SPEAKER) (TDE-LEATHER>W/POWER WINDOW>W/6-SPEAKER) 060301 - BK1382442-*
BR2A6845YA	1	(TDC-CLOTH'D'>W/POWER WINDOW>W/4-SPEAKER) (TDC-CLOTH'D'>W/POWER WINDOW>W/6-SPEAKER) 050301 - 060301 BK1261860-382442*
BR2A6845YB	1	(TDC-CLOTH'D'>W/POWER WINDOW>W/4-SPEAKER) (TDC-CLOTH'D'>W/POWER WINDOW>W/6-SPEAKER) 060301 - BK1382442-*
BR2B6845YA	1	(TDA-CLOTH'A'>W/O POWER WINDOW) 050301 - 060301 BK1261860-382442*
BR2B6845YB	1	(TDA-CLOTH'A'>W/O POWER WINDOW) 060301 - BK1382442-*
BR2C6845YA	1	(TDA-CLOTH'A'>W/POWER WINDOW) 050301 - 060301 BK1261860-382442*
BR2C6845YB	1	(TDA-CLOTH'A'>W/POWER WINDOW) 060301 - BK1382442-*
BR2D6845YA	1	TDB-CLOTH'C' 050301 - 060301 BK1261860-382442*
BR2D6845YB	1	TDB-CLOTH'C' 060301 - BK1382442-*
BR2G6845YA	1	(TDC-CLOTH'D'>W/POWER WINDOW>W/7-SPEAKER) 050301 - 060301 BK1261860-382442*
BR2G6845YB	1	(TDC-CLOTH'D'>W/POWER WINDOW>W/7-SPEAKER) 060301 - BK1382442-*
BR2L6845YA	1	TDD-CLOTH'B' 050301 - 060301 BK1261860-382442*
BR2L6845YB	1	TDD-CLOTH'B' 060301 - BK1382442-*
BR8V6845YA	1	(TDE-LEATHER>W/POWER WINDOW>W/7-SPEAKER) 050301 - 060301 BK1261860-382442*
BR8V6845YB	1	(TDE-LEATHER>W/POWER WINDOW>W/7-SPEAKER) 060301 - BK1382442-*
BR8W6845YA	1	TDE-LEATHER 041101 - 041201 BK1221544-233030*
BR8W6845YB	1	TDE-LEATHER 041201 - 050301 BK1233030-261860*

» 684LY

PANEL(L),SWITCH

Part Number	Qty.	Specifications	Price
BP4K684L6B	1	(W/POWER WINDOW-FRT & RR DR>W/4-SPEAKER) (W/POWER WINDOW-FRT & RR DR>W/6-SPEAKER)
BP4L684L6B	1	W/O POWER WINDOW
BP4M684L6B	1	W/POWER WINDOW-FRT DR
BR8W684L6	1	(W/POWER WINDOW-FRT & RR DR>W/7-SPEAKER) 041119 - BK1229049-*

» 68951C

PACKING

Part Number	Qty.	Specifications	Price
GJ6R68AB2	2	A (GJ6R-68-ABX)	€ 0,85

» 68AB1

FASTENER

Part Number	Qty.	Specifications	Price
GJ6A68AB1	18	ILLUST. NO.2	€ 1,53
GJ6R68ABX	2	ILLUST. NO.1	€ 2,01

» 68AD5

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
F15168AD5	2		€ 1,74

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997350616	1		€ 0,60

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998640412	1		€ 0,56

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998740412	1		€ 0,42
