Mazda MAZDA 3 BK 2003-06 Mazda Dashboard & Related Parts

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Interior Trim > Dashboard & Related Parts

Search by part number:

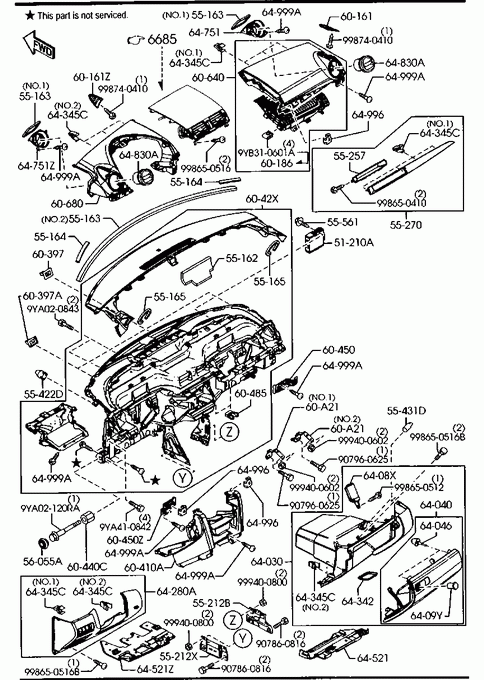

Dashboard & Related Parts

UNIT,LEVELING-HEAD LAMP

Part Number	Qty.	Specifications	Price
BP4K51225B	1	DISCHARGE,AUTO LEVELING, W/CLEANER	€ 591,94

» 55162

TAPE,SEAL

Part Number	Qty.	Specifications	Price
BP4K55162A	1	GASOLINE
BP8F55162	1	DIESEL

» 55163

TAPE,SEAL

Part Number	Qty.	Specifications	Price
BP4K55163A	2	ILLUST. NO.1	€ 1,72
BP8F55163	1	ILLUST. NO.2 (DIESEL>EURO4) 060301 - BK1382442-*	€ 4,20

» 55164

TAPE,SEAL

Part Number	Qty.	Specifications	Price
BP4K55164	2	- 040114 BK1* -141582**

» 55165

TAPE,SEAL

Part Number	Qty.	Specifications	Price
BP4K55165	2

» 55212B

BRACKET(R),INST. PANEL

Part Number	Qty.	Specifications	Price
BP4K604A1B	1		€ 5,71

» 55212X

BRACKET(L),INST. PANEL

Part Number	Qty.	Specifications	Price
BP4K604B1A	1		€ 5,71

» 55257

PLATE,PARTITION

Part Number	Qty.	Specifications	Price
BP4K55257	1

» 55270

PANEL,DECORATION

Part Number	Qty.	Specifications	Price
BP4K55150C	1	PIANOBLACK	€ 62,63
BP4L55150C	1	SILVER	€ 62,62
BP4M55150D	1	CARBON FIBER LIKE	€ 105,98

» 55422D

RUBBER

Part Number	Qty.	Specifications	Price
GJ6A55242	2		€ 2,03

» 55431D

BULB,GLOVE BOX LAMP

Part Number	Qty.	Specifications	Price
H45055431	1	A12V 1.7W 12.5LW	€ 4,44

» 55561

BOLT,INST. PANEL

Part Number	Qty.	Specifications	Price
B45555561	2		€ 0,88

» 56055A

GROMMET

Part Number	Qty.	Specifications	Price
A00156053	2		€ 0,74

» 60161

GRILLE(R),DEMISTER

Part Number	Qty.	Specifications	Price
BP4K60160C	1		€ 4,61

» 60161Z

GRILLE(L),DEMISTER

Part Number	Qty.	Specifications	Price
BP4K60170C	1		€ 4,61

» 60186

CLIP

Part Number	Qty.	Specifications	Price
BP4K6039X	4	031201 - BK1133399-*	€ 2,69

» 60397

CAP

Part Number	Qty.	Specifications	Price
BP4K60397	1		€ 3,95

» 60397A

CAP

Part Number	Qty.	Specifications	Price
C10060397	2		€ 2,21

» 60410A

PANEL,INSTRUMENT

Part Number	Qty.	Specifications	Price
BP4K60401C	1

» 6042X

MEMBER,INST. PANEL

Part Number	Qty.	Specifications	Price
BP4K6042XN	1	A (BP4K-60-42XP) GASOLINE - 030915 BK1* -111954**
BP4K6042XP	1	GASOLINE 030915 - BK1111954-*	€ 1049,66
BP8F6042XA	1	DIESEL (DIESEL>EURO4)	€ 1049,66

» 60440C

MEMBER,JUNCTION-INS.PANEL

Part Number	Qty.	Specifications	Price
BP4M60441B	2

» 60450

BRACKET(R),SIDE

Part Number	Qty.	Specifications	Price
BP4K60412	1	AN (BP4K-60-412A) - 030715 BK1* -100309**	€ 5,17
BP4K60412A	1	030715 - BK1100309-*	€ 5,38

» 60450Z

BRACKET(L),SIDE

Part Number	Qty.	Specifications	Price
BP4K60413	1	AN (BP4K-60-413A) - 030715 BK1* -100309**	€ 5,27
BP4K60413A	1	030715 - BK1100309-*	€ 5,27

» 60485

NUT,SPRING

Part Number	Qty.	Specifications	Price
BP4K60408A	2

» 60640

PAD(R),INST. PANEL

Part Number	Qty.	Specifications	Price
BP4K6035XE	1		€ 307,86

» 60680

PAD(L),INST. PANEL

Part Number	Qty.	Specifications	Price
BP4K60360D	1		€ 158,44

» 60A21

BRACKET(L),AIR BAG

Part Number	Qty.	Specifications	Price
BP4K60A21A	1	ILLUST. NO.1	€ 2,70
BP4K60A30A	1	ILLUST. NO.2	€ 2,70

» 64030

BOX,GLOVE

Part Number	Qty.	Specifications	Price
BP4K64030F	1	(INTERIOR COLOR>W/O CAR NAVIGATION) (INTERIOR COLOR>W/CAR NAVIGATION>W/O MAP SOFT) - 031013 BK1* -122544**
BP4K64030G	1	(INTERIOR COLOR>W/O CAR NAVIGATION) 031013 - BK1122544-*
BP4L64030F	1	(INTERIOR COLOR>W/CAR NAVIGATION>W/MAP SOFT) - 031013 BK1* -122544**
BP4L64030G	1	(INTERIOR COLOR>W/CAR NAVIGATION) 031013 - BK1122544-*
BP4S64030F	1	(SILVER>W/O CAR NAVIGATION) - 031013 BK1* -122544**
BP4S64030G	1	(SILVER>W/O CAR NAVIGATION) 031013 - BK1122544-*
BP4T64030F	1	(SILVER>W/CAR NAVIGATION) - 031013 BK1* -122544**
BP4T64030G	1	(SILVER>W/CAR NAVIGATION) 031013 - BK1122544-*

» 64040

LID,GLOVE BOX-OUTER

Part Number	Qty.	Specifications	Price
BP4K64040	1	INTERIOR COLOR
BP4S64040	1	SILVER

» 64046

CUSHION,RUBBER

Part Number	Qty.	Specifications	Price
BP4K64046	2		€ 1,95

» 6408X

DAMPER,GLOVE BOX

Part Number	Qty.	Specifications	Price
BP4K6408X	1		€ 8,02

» 6409Y

CYLINDER,GLOVE LID

Part Number	Qty.	Specifications	Price
GE4T6409YB	1

» 64280A

PANEL,LOWER

Part Number	Qty.	Specifications	Price
BP4K64280B	1	GASOLINE
BP8F64280	1	DIESEL

» 64342

COVER

Part Number	Qty.	Specifications	Price
BP4K64115A	1		€ 1,99

» 64345C

SPRING,UPPER PLATE

Part Number	Qty.	Specifications	Price
J00164345	16	ILLUST. NO.1 - 040201 BK1* -144597**	€ 2,04
S47P64345	13	ILLUST. NO.2 040201 - BK1144597-*	€ 0,70

» 64521

COVER(R),UNDER-DASH.

Part Number	Qty.	Specifications	Price
BP4K64520E	1		€ 21,65

» 64521Z

COVER(L),UNDER-DASH.

Part Number	Qty.	Specifications	Price
BP8F64530A	1	AN (BP8F-64-530B) DIESEL - 050301 BK1* -261860**	€ 26,25
BP8F64530B	1	DIESEL 050301 - BK1261860-*

» 64751

DUCT(R)

Part Number	Qty.	Specifications	Price
BP4K64741	1		€ 8,11

» 64751Z

DUCT(L)

Part Number	Qty.	Specifications	Price
BP4K64841	1		€ 8,11

» 64830A

GRILLE,VENTILATION

Part Number	Qty.	Specifications	Price
BP4K64730B	2		€ 32,83

» 64996

NUT,EXPANSION

Part Number	Qty.	Specifications	Price
GJ2164996	12		€ 0,51

» 64999A

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
W20164999	40	- 040201 BK1* -144597**	€ 0,90

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA020843	1		€ 2,76

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA02120RA	1		€ 8,40

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860816	1		€ 2,06

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907960625	1		€ 1,70

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400602	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400800	1		€ 1,54

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
9YB310601A	1

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650410	1		€ 0,42

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650512	1		€ 0,66

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516	1		€ 0,51

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516B	1		€ 0,52

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998740410	1		€ 0,58

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9YA410842	1
