Audio Systems 01/05 (-5301)(W/O CD+W/O CD CHANGER) 02/05 (-5301)(W/O CD+W/CD CHANGER) 03/05 (-5301)(W/CD) 04/05 (5301-) 05/05 (W/7-SPEAKER)

Audio Systems |

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Dashboard > Audio Systems

Search by part number:

Audio Systems(radio & Tape Deck)

01/05 (-5301)(W/O CD+W/O CD CHANGER)
02/05 (-5301)(W/O CD+W/CD CHANGER)

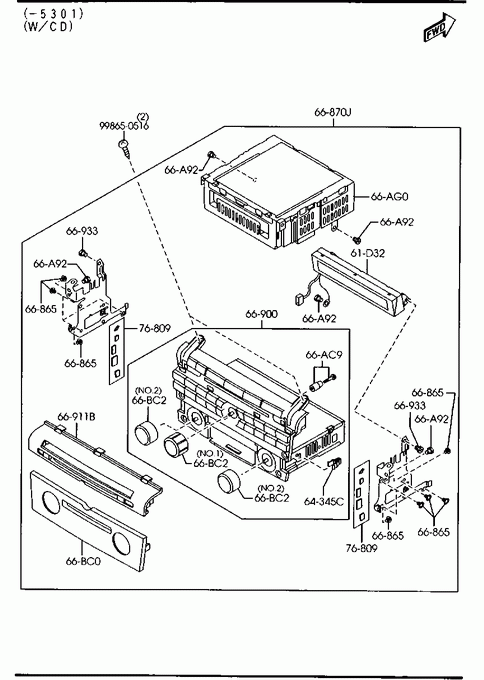

03/05 (-5301)(W/CD)
04/05 (5301-)
05/05 (W/7-SPEAKER)

DISPLAY,INFORMATION

Part Number	Qty.	Specifications	Price
BP4K66EV0	1	- 050301 BK1* -261860**	€ 219,47
BP4R611J0A	1	050301 - BK1261860-*	€ 334,71

SPRING,UPPER PLATE

Part Number	Qty.	Specifications	Price
S47P64345	4		€ 0,70

SCREW

Part Number	Qty.	Specifications	Price
BP4K66B31	11	- 050301 BK1* -261860**

AUDIO SET

Part Number	Qty.	Specifications	Price
BP4P669R0A	1	AM/FM;ETR(RDS)-9/50KHZ,W/CD - 050301 BK1* -261860**
BP4R669RX	1	AM/FM;ETR(RDS)-9/50KHZ,W/O CD,W/TRIP COMP,W/CD CHANGER, W/4-SPEAKER 030901 - 050301 BK1106893-261860*
BP4R66AS0	1	AM/FM;ETR(RDS)-9/50KHZ,W/O CD,W/O TRIP COMP 050301 - BK1261860-*	€ 349,34
BP6L66ARX	1	AM/FM;ETR(RDS)-9/50KHZ,W/O CD,W/TRIP COMP,W/CD CHANGER, W/7-SPEAKER 050301 - BK1261860-*	€ 583,03
BR2A66AR0	1	AM/FM;ETR-5/100KHZ,W/CD 050301 - BK1261860-*
BR2B66AR0	1	AM/FM;ETR(RDS)-9/50KHZ,W/CD, W/TRIP COMP. 050301 - BK1261860-*	€ 865,07
BR2D66AR0	1	AM/FM;ETR(RDS)-9/50KHZ,W/CD, W/O TRIP COMP. 050301 - BK1261860-*
BR2V66ARX	1	AM/FM;ETR(RDS)-9/50KHZ,W/O CD,W/TRIP COMP,W/CD CHANGER, W/4-SPEAKER 050301 - BK1261860-*	€ 583,03
BR8W669RX	1	AM/FM;ETR(RDS)-9/50KHZ,W/O CD,W/TRIP COMP,W/CD CHANGER, W/7-SPEAKER 041101 - 050301 BK1221544-261860*

TUNER

Part Number	Qty.	Specifications	Price
BP4K66AS0	1	AM/FM;ETR-5/100KHZ,W/O CD - 050301 BK1* -261860**	€ 505,46
BP4L66AS0	1	AM/FM;ETR(RDS)-9/50KHZ,W/O CD,W/O TRIP COMP AM/FM;ETR(RDS)-9/50KHZ,W/CD - 050301 BK1* -261860**	€ 586,74
BP4M66AS0	1	AM/FM;ETR(RDS)-9/50KHZ,W/O CD,W/TRIP COMP,W/4-SPEAKER AM/FM;ETR(RDS)-9/50KHZ,W/O CD,W/TRIP COMP,W/6-SPEAKER - 050301 BK1* -261860**	€ 586,74
BR8W66AS0	1	AM/FM;ETR(RDS)-9/50KHZ,W/O CD,W/TRIP COMP,W/7-SPEAKER 041101 - 050301 BK1221544-261860*

COVER,HOLE

Part Number	Qty.	Specifications	Price
B32L66BG4	1	W/CD	€ 113,43
B32P66BG4	1	(W/O CD>W/CD CHANGER) 030901 - BK1106893-*	€ 106,81
BP4K66BG4	1	(W/O CD>W/O CD CHANGER)	€ 85,16

SCREW,ANTENNA

Part Number	Qty.	Specifications	Price
BP4K66A92	2

SCREW,ANTENNA

Part Number	Qty.	Specifications	Price
T06066A92	8	050301 - BK1261860-*	€ 7,81

RUBBER,REAR-ET/ED COMBI.

Part Number	Qty.	Specifications	Price
B30E66AC9	1	W/O CD CHANGER
B30G66AC9	1	W/CD CHANGER	€ 5,89

PLAYER,COMPACT DISC

Part Number	Qty.	Specifications	Price
F15366AG0	1	A (GK1R-66-AG0) W/CD - 040701 BK1* -185433**	€ 423,28
GK1R66AG0	1	W/CD 040701 - 050301 BK1185433-261860*	€ 316,48

PANEL,ESCUTCHEON

Part Number	Qty.	Specifications	Price
BP4K66BC0	1		€ 77,05

KNOB,VOLUME-TUNER & DECK

Part Number	Qty.	Specifications	Price
BP4K66BC1	1	ILLUST. NO.1	€ 14,17
BP4L66BC1	2	ILLUST. NO.2

FELT

Part Number	Qty.	Specifications	Price
BP4K66EG5	2	030901 - BK1106893-*

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516	1		€ 0,51
