- Parts > MAZDA 3 > 2003-06 > Body Dashboard > Air Bag
- Search by part number:
-

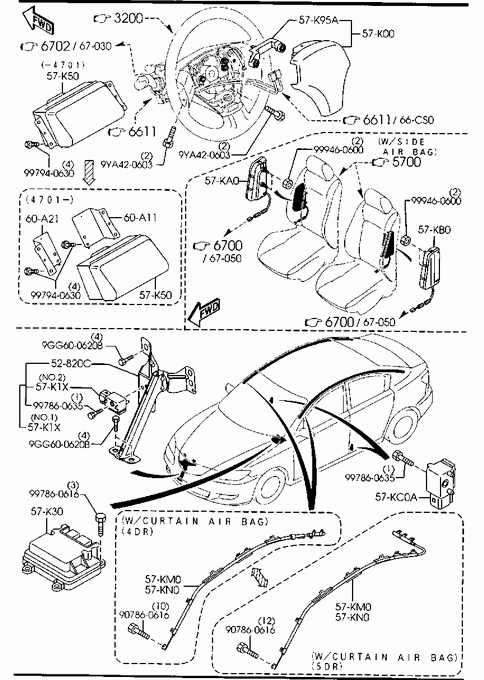

Air Bag
-
» 52820C STAY,LOCK Part Number Qty. Specifications Price BP4K5215YA 1 € 16,28 » 57K00 MODULE,AIR BAG Part Number Qty. Specifications Price BP4K57K00A 1 - 050401 € 344,65 BP4S57K00A 1 A (BP4S-57-K00B)
050401 - 051101
BK1*** -337978€ 247,31 BP4S57K00B 1 051101 -
BK1***337978-€ 257,31 » 57K1X SENSOR,AIR BAG Part Number Qty. Specifications Price BP4K57K1XB 1 ILLUST. NO.2 € 114,93 BP4K57KX0 1 AN (BP4K-57-KX0A)
ILLUST. NO.1
- 050601
BK1*** -290070€ 115,18 BP4K57KX0A 1 C (BP4K-57-K1XB)
ILLUST. NO.1
050601 -
BK1***290070-» 57K30 UNIT,SAS Part Number Qty. Specifications Price BP4K57K30A 1 AN (BP4K-57-K30B)
- 030916
BK1** -100089€ 245,62 BP4K57K30B 1 A (BP4K-57-K30C)
030916 - 040901
BK1** 100089-
BK1*** -199903€ 245,62 BP4K57K30C 1 W/CURTAIN AIR BAG
040901 -
BK1***199903-€ 255,54 BP4M57K30 1 W/O CURTAIN AIR BAG
040901 -
BK1***199903-€ 215,64 » 57K50 MODULE,AIR BAG PASSENGER Part Number Qty. Specifications Price BP4K57K50C 1 G (BP4K-57-K50D)
- 040701
BK1*** -185433€ 418,73 BP4K57K50D 1 040701 - 050301
BK1***185433-261860€ 435,64 BP4S57K50 1 A (BP4S-57-K50A)
050301 - 051101
BK1***261860-337978€ 317,54 BP4S57K50A 1 051101 -
BK1***337978-€ 330,37 » 57K95A CLIP,AIR BAG Part Number Qty. Specifications Price GR1A57K95 1 050401 - » 57KA0 MODULE(R)-A/B,SIDE Part Number Qty. Specifications Price BP4K57KA0A 1 W/SIDE AIR BAG € 286,16 » 57KB0 MODULE(L)-A/B,SIDE Part Number Qty. Specifications Price BP4K57KB0A 1 W/SIDE AIR BAG € 286,16 » 57KC0A SENS,IMPACT-SIDE A/B Part Number Qty. Specifications Price BP4K57KC0 2 W/SIDE AIR BAG € 109,62 » 57KM0 AIR BAG(R),CURTAIN Part Number Qty. Specifications Price BN8V57KM0D 1 AN (BN8W-57-KM0)
W/CURTAIN AIR BAG
4-DOOR
- 050122
BK1*** -248799€ 565,12 BN8W57KM0 1 W/CURTAIN AIR BAG
4-DOOR
050122 -
BK1***248799-€ 417,28 BP4K57KM0C 1 AN (BP6L-57-KM0)
W/CURTAIN AIR BAG
5-DOOR
- 050119
BK1*** -247474€ 565,12 BP6L57KM0 1 AN (BP6L-57-KM0A)
W/CURTAIN AIR BAG
5-DOOR
050119 - 060227
BK1***247474-381360€ 576,42 BP6L57KM0A 1 W/CURTAIN AIR BAG
5-DOOR
060227 -
BK1***381360-€ 411,30 » 57KN0 AIR BAG(L),CURTAIN Part Number Qty. Specifications Price BN8V57KN0D 1 AN (BN8W-57-KN0)
W/CURTAIN AIR BAG
4-DOOR
- 050122
BK1*** -248799€ 556,39 BN8W57KN0 1 W/CURTAIN AIR BAG
4-DOOR
050122 -
BK1***248799-€ 417,28 BP4K57KN0C 1 AN (BP6L-57-KN0)
W/CURTAIN AIR BAG
5-DOOR
- 050119
BK1*** -247474€ 664,31 BP6L57KN0 1 AN (BP6L-57-KN0A)
W/CURTAIN AIR BAG
5-DOOR
050119 - 060227
BK1***247474-381360€ 664,31 BP6L57KN0A 1 W/CURTAIN AIR BAG
5-DOOR
060227 -
BK1***381360-€ 411,30 » 60A11 BRACKET(R),AIR BAG Part Number Qty. Specifications Price BP4M60A30 1 040701 -
BK1***185433-€ 6,28 » 60A21 BRACKET(L),AIR BAG Part Number Qty. Specifications Price BP4N60A30 1 040701 -
BK1***185433-€ 6,28 » 90786 SCREW & WASHER,TAPPING Part Number Qty. Specifications Price 907860616 1 € 2,41 » 90901 NUT Part Number Qty. Specifications Price 999460600 1 € 2,33 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860616 1 € 1,54 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860635 1 € 1,17 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 9GG600620B 1 € 0,62 » 99601 BOLT Part Number Qty. Specifications Price 9YA420603 1 € 0,87 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940630 1 € 1,18
