Parts > MAZDA 3 > 2003-06 > Body Dashboard > Dashboard Equipments

Search by part number:

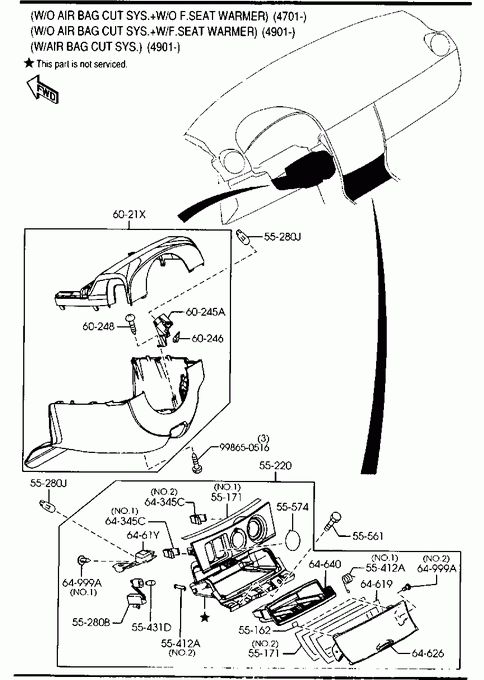

Dashboard Equipments

01/02 (W/O AIR BAG CUT SYS.+W/O F.SEAT WARMER)(-4701) (W/O AIR BAG CUT SYS.+W/F.SEAT WARMER)(-4901) (W/AIR BAG CUT SYS.)(-4901)
02/02 (W/O AIR BAG CUT SYS.+W/O F.SEAT WARMER)(4701-) (W/O AIR BAG CUT SYS.+W/F.SEAT WARMER)(4901-) (W/AIR BAG CUT SYS.)(4901-)

» 55162

TAPE,SEAL

Part Number	Qty.	Specifications	Price
BVTC55162	2	040701 - BK1185433-*

» 55171

TAPE,CUSHION

Part Number	Qty.	Specifications	Price
BVTC55161	1	ILLUST. NO.1 040701 - BK1185433-*
BVTC55171	1	ILLUST. NO.2 040701 - BK1185433-*

» 55220

PANEL,CENTER

Part Number	Qty.	Specifications	Price
BP4K55210E	1	AN (BP4K-55-210F) (W/O AIR BAG CUT SYS.>W/O F.SEAT WARMER) - 040701 BK1* -185433**	€ 76,85
BP4K55210F	1	A (BP4K-55-210G) (W/O AIR BAG CUT SYS.>W/O F.SEAT WARMER) 040701 - BK1185433-*	€ 79,96
BP4L55210E	1	AN (BP4L-55-210F) (W/O AIR BAG CUT SYS.>W/F.SEAT WARMER) - 040901 BK1* -199903**
BP4L55210F	1	A (BP4L-55-210G) (W/O AIR BAG CUT SYS.>W/F.SEAT WARMER) 040901 - BK1199903-*	€ 84,63
BP4M55210E	1	(W/AIR BAG CUT SYS.>W/O F.SEAT WARMER) - 040901 BK1* -199903**	€ 143,98
BP4N55210E	1	(W/AIR BAG CUT SYS.>W/F.SEAT WARMER) - 040901 BK1* -199903**	€ 105,93
BP4N55210F	1	A (BP4N-55-210G) (W/AIR BAG CUT SYS.>W/F.SEAT WARMER) 040901 - BK1199903-*	€ 103,85
BP4P55210A	1	A (BP4P-55-210B) (W/AIR BAG CUT SYS.>W/O F.SEAT WARMER) 040901 - BK1199903-*	€ 131,89

» 55280B

BULB & SOCKET

Part Number	Qty.	Specifications	Price
BP4P55280	1	W/AIR BAG CUT SYS. 040901 - BK1199903-*	€ 50,01

» 55280J

BULB

Part Number	Qty.	Specifications	Price
B45660223	2	14V 1.4W	€ 3,57

» 55412A

SPRING

Part Number	Qty.	Specifications	Price
BVTB55722	1	ILLUST. NO.1 040701 - BK1185433-*	€ 2,05
BVTC55722	1	ILLUST. NO.2 040701 - BK1185433-*

» 55431D

BULB,GLOVE BOX LAMP

Part Number	Qty.	Specifications	Price
H45055431	1	A12V 1.7W 12.5LW W/AIR BAG CUT SYS. 040701 - BK1185433-*	€ 4,44

» 55561

BOLT,INST. PANEL

Part Number	Qty.	Specifications	Price
B45555561	2		€ 0,88

» 55574

COVER,HOLE

Part Number	Qty.	Specifications	Price
BN8P55574	1	W/AIR BAG CUT SYS. 040901 - BK1199903-*	€ 7,70
BP4K55574A	1	(W/O AIR BAG CUT SYS.>W/F.SEAT WARMER)
BP4M55574A	1	W/AIR BAG CUT SYS. - 040901 BK1* -199903**	€ 8,74

» 6021X

COVER,COLUMN

Part Number	Qty.	Specifications	Price
BP4K6021XE	1	GASOLINE	€ 32,40
BP8F6021X	1	DIESEL	€ 36,61

» 60245A

CASE,LAMP

Part Number	Qty.	Specifications	Price
BP4K60245	1

» 60246

LENS,COLUMN COVER

Part Number	Qty.	Specifications	Price
BP4K60246	1	(2000>ISRAEL>W/SUNROOF)	€ 2,38

» 60248

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
G03060248	2		€ 0,46

» 64345C

SPRING,UPPER PLATE

Part Number	Qty.	Specifications	Price
B30D64345	1	ILLUST. NO.1	€ 0,97
S47P64345	1	ILLUST. NO.2	€ 0,70

» 64619

PROTECTOR,INST PANEL

Part Number	Qty.	Specifications	Price
BVTC64619	1	040701 - BK1185433-*

» 6461Y

BOX,LAMP-ASHTRAY

Part Number	Qty.	Specifications	Price
BP4K6461YA	1

» 64626

COVER

Part Number	Qty.	Specifications	Price
BVTB64626	1	A (BVTB-64-626A) 040701 - BK1185433-*	€ 7,78

» 64640

TRAY,ASH-INNER

Part Number	Qty.	Specifications	Price
BP4K64633C	1		€ 10,50

» 64999A

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
BVTB64999	1	ILLUST. NO.1 040701 - BK1185433-*
BVTC64999	1	ILLUST. NO.2 040701 - BK1185433-*

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516	1		€ 0,51
