Mazda MAZDA 3 BK 2003-06 Mazda Fender & Wheel Apron Panels

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Exterior Trim > Fender & Wheel Apron Panels

Search by part number:

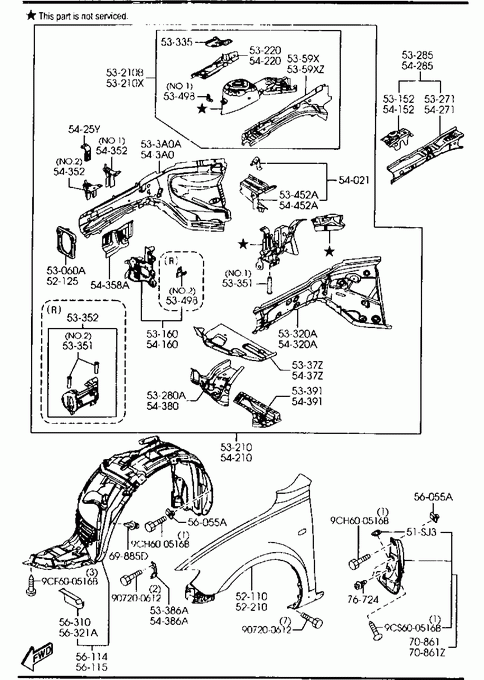

Fender & Wheel Apron Panels

CLIP

Part Number	Qty.	Specifications	Price
BP4K51SJ3	2	W/FRT.& RR.MUD FLAP W/F.MUD FLAP,W/O R.MUD FLAP	€ 3,96

» 52110

PANEL(R),FENDER-FRT.

Part Number	Qty.	Specifications	Price
BN8V52111C	1	AN (BN8V-52-111D) 4-DOOR - 041101 BK1* -221544**	€ 56,80
BN8V52111D	1	4-DOOR 041101 - BK1221544-*	€ 56,80
BP4K52111C	1	AN (BP4K-52-111D) 5-DOOR - 041101 BK1* -221544**	€ 56,80
BP4K52111D	1	5-DOOR 041101 - BK1221544-*	€ 56,80

» 52125

BRACKET(L),BUMPER

Part Number	Qty.	Specifications	Price
BP4K5433X	1		€ 37,56

» 52210

PANEL(L),FENDER-FRT.

Part Number	Qty.	Specifications	Price
BN8V52211C	1	AN (BN8V-52-211D) 4-DOOR - 041101 BK1* -221544**	€ 56,80
BN8V52211D	1	4-DOOR 041101 - BK1221544-*	€ 56,80
BP4K52211C	1	AN (BP4K-52-211D) 5-DOOR - 041101 BK1* -221544**	€ 56,80
BP4K52211D	1	5-DOOR 041101 - BK1221544-*	€ 56,80

» 53060A

BRACKET(R),BUMPER

Part Number	Qty.	Specifications	Price
BP4K5333X	1		€ 37,56

» 53152

REINF(R),SHROUD-UPPER

Part Number	Qty.	Specifications	Price
BN8V5315XA	1	4-DOOR	€ 16,51
BP4K5315XA	1	5-DOOR	€ 15,50

» 53160

PANEL(R),SHROUD

Part Number	Qty.	Specifications	Price
BP4K53120C	1	AN (BP4K-53-120D) - 050501 BK1* -281438**	€ 24,97
BP4K53120D	1	050501 - BK1281438-*	€ 25,98

» 53210

PANEL(R),APRON & FRAME

Part Number	Qty.	Specifications	Price
BPY05320X	1		€ 630,83

» 53210B

PANEL(R),WHEEL APRON

Part Number	Qty.	Specifications	Price
BP4K53210H	1	AN (BP4K-53-210J) - 030901 BK1* -106893**
BP4K53210L	1	AN (BP4K-53-210M) 030901 - 040818 BK1106893-196247*
BP4K53210M	1	AN (BP4K-53-210N) 040818 - 050824 BK1196247-316503*	€ 207,61
BP4K53210N	1	050824 - 060301 BK1316503-382442*	€ 185,20
BR5S53210	1	060301 - BK1382442-*

» 53210X

PANEL(L),WHEEL APRON

Part Number	Qty.	Specifications	Price
BP4K54210H	1	AN (BP4K-54-210J) - 030901 BK1* -106893**
BP4K54210J	1	AN (BP4K-54-210K) 030901 - 040501 BK1106893-168336*	€ 205,54
BP4K54210L	1	AN (BP4K-54-210M) 040501 - 040901 BK1168336-199903*	€ 205,54
BP4K54210N	1	AN (BP4K-54-210P) 040901 - 050824 BK1199903-316503*	€ 209,65
BP4K54210R	1	050824 - 060301 BK1316503-382442*	€ 185,20
BR5S54210B	1	060301 - BK1382442-*	€ 196,62

» 53220

PANEL(R),WHEEL APRON-FRT

Part Number	Qty.	Specifications	Price
BP4L53220C	1	A (BP4L-53-220D) - 040818 BK1* -196247**	€ 19,99
BP4L53220D	1	040818 - BK1196247-*	€ 19,99

» 53271

REINF.(RR/R),APRON-LOWER

Part Number	Qty.	Specifications	Price
BP4K53271C	1	AN (BP4K-53-271D) 040901 - 050824 BK1199903-316503*	€ 12,44
BP4K53271D	1	050824 - BK1316503-*	€ 12,94

» 53280A

FRAME(R),FRONT-REAR

Part Number	Qty.	Specifications	Price
BP4K53390B	1	AN (BP4K-53-390C) - 030820 BK1* -104151**	€ 76,41
BP4K53390C	1	AN (BP4K-53-390D) 030820 - 051201 BK1104151-350909*	€ 76,41
BP4K53390D	1	051201 - BK1350909-*	€ 77,94

» 53285

REINF.(R),WHL. APRON

Part Number	Qty.	Specifications	Price
BN8V5327YB	1	AN (BN8V-53-27YC) 4-DOOR - 040901 BK1* -199903**	€ 80,52
BN8V5327YD	1	AN (BN8V-53-27YE) 4-DOOR 040901 - 050824 BK1199903-316503*	€ 80,52
BN8V5327YE	1	4-DOOR 050824 - BK1316503-*	€ 82,13
BP4K5327YC	1	AN (BP4K-53-27YD) 5-DOOR - 040901 BK1* -199903**	€ 74,49
BP4K5327YE	1	AN (BP4K-53-27YF) 5-DOOR 040901 - 050824 BK1199903-316503*	€ 75,98
BP4K5327YF	1	5-DOOR 050824 - BK1316503-*	€ 77,50

» 53320A

FRAME(R),FRONT-OUTER

Part Number	Qty.	Specifications	Price
BP4K53321	1	AN (BP4K-53-321A) - 060101 BK1* -360559**	€ 57,86
BP4K53321A	1	A (BP4K-53-321B) 060101 - BK1360559-*	€ 59,02

» 53335

REINFORCEMENT,MTG

Part Number	Qty.	Specifications	Price
BP4K54490B	1	AN (BP4K-54-490C) - 040501 BK1* -168336**	€ 18,45
BP4K54490C	1	040501 - BK1168336-*	€ 19,20

» 53351

REINF,FRT FRAME-INNER

Part Number	Qty.	Specifications	Price
BP4K53353A	2	ILLUST. NO.1
BP4L53353A	2	ILLUST. NO.2

» 53352

REINF(R),FRAME-INNER

Part Number	Qty.	Specifications	Price
BP4K53350A	1		€ 44,23

» 5337Z

FRAME(UP.R),FRONT-REAR

Part Number	Qty.	Specifications	Price
BP4K53393A	1		€ 24,92

» 53386A

JUNCTION(R)

Part Number	Qty.	Specifications	Price
BP4K53290	1		€ 5,39

» 53391

BOX(R),TORQUE

Part Number	Qty.	Specifications	Price
BP4K53380B	1	AN (BP4K-53-380C) - 050501 BK1* -281438**	€ 34,92
BP4K53380C	1	AN (BP4K-53-380D) 050501 - 050824 BK1281438-316503*	€ 36,33
BP4K53380D	1	AN (BP4K-53-380E) 050824 - 060301 BK1316503-382442*
BP4K53380E	1	060301 - BK1382442-*	€ 25,70

» 533A0A

FRAME(R),FRONT

Part Number	Qty.	Specifications	Price
BP4K533A0A	1	AN (BP4K-53-3A0B) - 031001 BK1* -118551**
BP4K533A0B	1	AN (BP4K-53-3A0C) 031001 - 040201 BK1118551-144597*
BP4K533A0C	1	040201 - BK1144597-*	€ 134,05

» 53452A

MEMBER,SIDE (R)

Part Number	Qty.	Specifications	Price
BP4K533DY	1	AN (BP4K-53-3DYA) - 040901 BK1* -199903**
BP4K533DYA	1	AN (BP4K-53-3DYB) 040901 - 050824 BK1199903-316503*	€ 15,81
BP4K533DYB	1	050824 - BK1316503-*

» 53498

BRACKET

Part Number	Qty.	Specifications	Price
BP4K53243	1	ILLUST. NO.1	€ 3,00
BP4L53243	1	ILLUST. NO.2	€ 8,17

» 5359X

REINF.(R),WHEEL APRON

Part Number	Qty.	Specifications	Price
BP4K53261A	1	AN (BP4K-53-261B) - 050824 BK1* -316503**	€ 52,33
BP4K53261B	1	050824 - BK1316503-*	€ 54,45

» 5359XZ

REINF.(L),WHEEL APRON

Part Number	Qty.	Specifications	Price
BP4K54261A	1	A (BP4K-54-261B) - 050824 BK1* -316503**	€ 52,33
BP4K54261B	1	050824 - BK1316503-*	€ 54,45

» 54021

GUSSET(L),C.PILLAR-FLOOR

Part Number	Qty.	Specifications	Price
BP4K543E0C	1	AN (BP4K-54-3E0D) - 040901 BK1* -199903**
BP4K543E0D	1	040901 - BK1199903-*	€ 19,95

» 54152

REINF(L),SHROUD-UPPER

Part Number	Qty.	Specifications	Price
BN8V5415XA	1	4-DOOR	€ 16,51
BP4K5415XA	1	5-DOOR	€ 15,50

» 54160

PANEL(L),SHROUD

Part Number	Qty.	Specifications	Price
BP4K54120	1	AN (BP4K-54-120A) - 050501 BK1* -281438**	€ 30,06
BP4K54120A	1	050501 - BK1281438-*	€ 20,31

» 54210

PANEL(L),APRON & FRAME

Part Number	Qty.	Specifications	Price
BP4K54200	1		€ 599,31

» 54220

PANEL(L),WHEEL APRON-FRT

Part Number	Qty.	Specifications	Price
BP4K54221	1	A (BP4K-54-221A) - 040818 BK1* -196247**	€ 19,99
BP4K54221A	1	040818 - BK1196247-*	€ 17,57

» 5425Y

REINF,BATTERY CARRIER

Part Number	Qty.	Specifications	Price
BP4K5425Y	1		€ 9,55

» 54271

REINF.(RR/L),APRON-LOWER

Part Number	Qty.	Specifications	Price
BP4K54271B	1	AN (BP4K-54-271C) 040901 - 050824 BK1199903-316503*	€ 12,44
BP4K54271C	1	050824 - BK1316503-*	€ 12,94

» 54285

REINF.(L),WHL. APRON

Part Number	Qty.	Specifications	Price
BN8V5427YA	1	AN (BN8V-54-27YB) 4-DOOR - 040901 BK1* -199903**	€ 73,01
BN8V5427YC	1	AN (BN8V-54-27YD) 4-DOOR 040901 - 050824 BK1199903-316503*	€ 74,47
BN8V5427YD	1	4-DOOR 050824 - BK1316503-*	€ 75,96
BP4K5427YB	1	AN (BP4K-54-27YC) 5-DOOR - 040901 BK1* -199903**	€ 74,49
BP4K5427YD	1	AN (BP4K-54-27YE) 5-DOOR 040901 - 050824 BK1199903-316503*	€ 75,98
BP4K5427YE	1	5-DOOR 050824 - BK1316503-*	€ 77,50

» 54320A

FRAME(L),FRONT-OUTER

Part Number	Qty.	Specifications	Price
BP4K54321A	1	AN (BP4K-54-321B) - 060101 BK1* -360559**	€ 65,65
BP4K54321B	1	AN (BP4K-54-321C) 060101 - BK1360559-*	€ 64,66

» 54352

REINF(L),FRAME-INNER

Part Number	Qty.	Specifications	Price
BP4K54350	1	AN (BP4K-54-350A) ILLUST. NO.1 - 030820 BK1* -104151**
BP4K54350A	1	ILLUST. NO.1 030820 - BK1104151-*	€ 7,51
BP4L54350	1	AN (BP4L-54-350A) ILLUST. NO.2 - 030820 BK1* -104151**	€ 13,42
BP4L54350A	1	ILLUST. NO.2 030820 - BK1104151-*	€ 13,96

» 54358A

REINFORCEMENT(L)

Part Number	Qty.	Specifications	Price
BP4K54353	1		€ 16,46

» 5437Z

FRAME(UP.L),FRONT-REAR

Part Number	Qty.	Specifications	Price
BP4K54393A	1		€ 26,40

» 54380

FRAME(L),FRONT-REAR

Part Number	Qty.	Specifications	Price
BP4K54390B	1	AN (BP4K-54-390C) - 030820 BK1* -104151**
BP4K54390C	1	AN (BP4K-54-390D) 030820 - 051201 BK1104151-350909*	€ 79,71
BP4K54390D	1	051201 - BK1350909-*	€ 77,94

» 54386A

JUNCTION(L)

Part Number	Qty.	Specifications	Price
BP4K54290	1		€ 9,38

» 54391

BOX(L),TORQUE

Part Number	Qty.	Specifications	Price
BP4K54380B	1	AN (BP4K-54-380C) - 050501 BK1* -281438**	€ 34,94
BP4K54380C	1	AN (BP4K-54-380D) 050501 - 050824 BK1281438-316503*
BP4K54380D	1	AN (BP4K-54-380E) 050824 - 060301 BK1316503-382442*	€ 25,13
BP4K54380E	1	060301 - BK1382442-*	€ 25,13

» 543A0

FRAME(L),FRONT

Part Number	Qty.	Specifications	Price
BP4K543A0A	1	AN (BP4K-54-3A0B) - 030820 BK1* -104151**
BP4K543A0B	1	AN (BP4K-54-3A0C) 030820 - 040201 BK1104151-144597*
BP4K543A0C	1	A (BP4K-54-3A0D) 040201 - 050901 BK1144597-318617*	€ 128,84
BP4K543A0D	1	050901 - BK1318617-*	€ 134,05

» 54452A

MEMBER,SIDE (L)

Part Number	Qty.	Specifications	Price
BP4L543DY	1	AN (BP4L-54-3DYA) - 040901 BK1* -199903**
BP4L543DYA	1	040901 - BK1199903-*	€ 16,13

» 56055A

GROMMET

Part Number	Qty.	Specifications	Price
GJ6E51832A	2		€ 0,91

» 56114

GUARD(R),MUD

Part Number	Qty.	Specifications	Price
BP4K56130D	1	AN (BP4K-56-130E) BUMPER-STD TYPE (5-DOOR>GASOLINE>2000) (4-DOOR>GASOLINE) - 030722 BK1* -100528**	€ 46,55
BP4K56130E	1	BUMPER-STD TYPE (4-DOOR>GASOLINE) (5-DOOR>GASOLINE>2000) (5-DOOR>GASOLINE>1600>ISRAEL) 030722 - BK1100528-*	€ 48,43
BP4L56130C	1	AN (BP4L-56-130D) BUMPER-SPORTY TYPE (4-DOOR>GASOLINE) (5-DOOR>GASOLINE) - 030716 BK1* -100338**	€ 44,43
BP4L56130D	1	AN (BP4L-56-130E) BUMPER-SPORTY TYPE (4-DOOR>GASOLINE) (5-DOOR>GASOLINE) 030716 - BK1100338-*	€ 45,18
BP4M56130C	1	AN (BP4M-56-130D) BUMPER-STD TYPE (5-DOOR>GASOLINE>1600>ECE) - 030716 BK1* -100338**	€ 50,48
BP4M56130D	1	BUMPER-STD TYPE (5-DOOR>GASOLINE>1300) (5-DOOR>GASOLINE>1600>ECE) 030716 - BK1100338-*	€ 52,52
BR1M56130	1	BUMPER-STD TYPE (4-DOOR>DIESEL) (5-DOOR>DIESEL)	€ 75,31
BR1N56130	1	AN (BR1N-56-130A) BUMPER-SPORTY TYPE (4-DOOR>DIESEL) (5-DOOR>DIESEL)

» 56115

GUARD(L),MUD

Part Number	Qty.	Specifications	Price
BP4K56140D	1	AN (BP4K-56-140E) BUMPER-STD TYPE (5-DOOR>GASOLINE>2000) (4-DOOR>GASOLINE) - 030722 BK1* -100528**
BP4K56140E	1	BUMPER-STD TYPE (4-DOOR>GASOLINE) (5-DOOR>GASOLINE>2000) (5-DOOR>GASOLINE>1600>ISRAEL) 030722 - BK1100528-*	€ 36,77
BP4L56140C	1	AN (BP4L-56-140D) BUMPER-SPORTY TYPE (4-DOOR>GASOLINE) (5-DOOR>GASOLINE) - 030716 BK1* -100338**	€ 43,42
BP4L56140D	1	AN (BP4L-56-140E) BUMPER-SPORTY TYPE (4-DOOR>GASOLINE) (5-DOOR>GASOLINE) 030716 - BK1100338-*	€ 45,18
BP4M56140C	1	AN (BP4M-56-140D) BUMPER-STD TYPE (5-DOOR>GASOLINE>1600>ECE) - 030716 BK1* -100338**	€ 50,48
BP4M56140D	1	BUMPER-STD TYPE (5-DOOR>GASOLINE>1300) (5-DOOR>GASOLINE>1600>ECE) 030716 - BK1100338-*	€ 52,52
BR1M56140	1	BUMPER-STD TYPE (4-DOOR>DIESEL) (5-DOOR>DIESEL)	€ 79,23
BR1N56140	1	AN (BR1N-56-140A) BUMPER-SPORTY TYPE (4-DOOR>DIESEL) (5-DOOR>DIESEL)

» 56310

SHIELD(R),SPLASH-FRONT

Part Number	Qty.	Specifications	Price
BP4M56310B	1	BUMPER-STD TYPE (5-DOOR>1300) (5-DOOR>1600>ECE>DIESEL)	€ 8,75

» 56321A

SHIELD(L),SPLASH-FRONT

Part Number	Qty.	Specifications	Price
BP4M56320B	1	BUMPER-STD TYPE (5-DOOR>1300) (5-DOOR>1600>ECE>DIESEL)	€ 8,75

» 69885D

FASTENER

Part Number	Qty.	Specifications	Price
NA0156145	27	W/O MUD FLAP	€ 1,90

» 70861

FLAP(R),FRONT

Part Number	Qty.	Specifications	Price
BP4K51840A	1	W/FRT.& RR.MUD FLAP W/F.MUD FLAP,W/O R.MUD FLAP	€ 26,11

» 70861Z

FLAP(L),FRONT

Part Number	Qty.	Specifications	Price
BP4K51850A	1	W/FRT.& RR.MUD FLAP W/F.MUD FLAP,W/O R.MUD FLAP	€ 26,11

» 76724

RIVET

Part Number	Qty.	Specifications	Price
B09251833	4	W/FRT.& RR.MUD FLAP W/F.MUD FLAP,W/O R.MUD FLAP	€ 1,54

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CH600516B	1		€ 1,90

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200612	1		€ 1,04

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9CS600516B	1		€ 0,73
