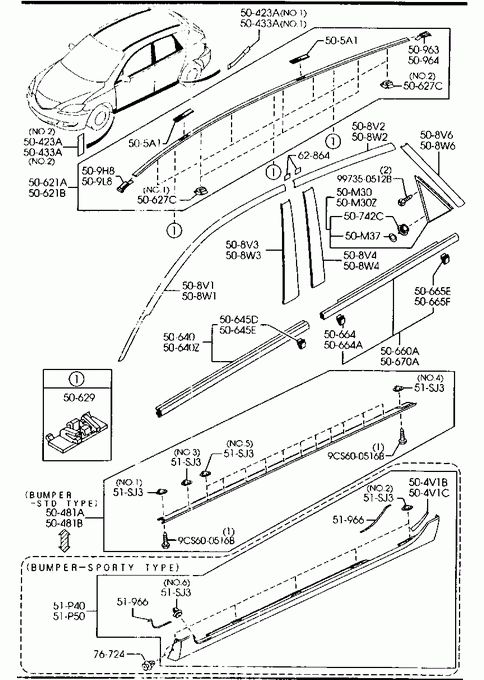

Body Mouldings(5-door)
-
» 50423A GUARD'A'(R),STONE Part Number Qty. Specifications Price B34K504P1A 1 A (B34K-50-4P1B)
ILLUST. NO.1
BUMPER-SPORTY TYPE
040901 - 060101
BK1***199903-360559B34K504P1B 1 ILLUST. NO.1
BUMPER-SPORTY TYPE
060101 -
BK1***360559-€ 4,19 BP4K504P1A 1 A (BP4K-50-4P1B)
ILLUST. NO.1
BUMPER-STD TYPE
- 060101
BK1*** -360559€ 9,99 BP4K504P1B 1 ILLUST. NO.1
BUMPER-STD TYPE
060101 -
BK1***360559-€ 9,35 GM7A504P1 1 ILLUST. NO.2
BUMPER-STD TYPE
040817 -
BK1***195861-€ 6,56 » 50433A GUARD'A'(L),STONE Part Number Qty. Specifications Price B34K504R1A 1 A (B34K-50-4R1B)
ILLUST. NO.1
BUMPER-SPORTY TYPE
040901 - 060101
BK1***199903-360559B34K504R1B 1 ILLUST. NO.1
BUMPER-SPORTY TYPE
060101 -
BK1***360559-€ 4,19 BP4K504R1A 1 A (BP4K-50-4R1B)
ILLUST. NO.1
BUMPER-STD TYPE
- 060101
BK1*** -360559€ 9,67 BP4K504R1B 1 ILLUST. NO.1
BUMPER-STD TYPE
060101 -
BK1***360559-€ 9,08 GM7A504P1 1 ILLUST. NO.2
BUMPER-STD TYPE
040817 -
BK1***195861-€ 6,56 » 50481A GUARD(R),STONE-REAR Part Number Qty. Specifications Price BP4K50480D 1 A (BP4K-50-480E)
(BUMPER-STD TYPE>W/O MUD FLAP)
- 031001
BK1*** -118551BP4K50480E 1 AN (BP4K-50-480F)
(BUMPER-STD TYPE>W/O MUD FLAP)
031001 - 031225
BK1***118551-139022€ 136,92 BP4K50480F 1 AN (BP4K-50-480G)
(BUMPER-STD TYPE>W/O MUD FLAP)
031225 - 060117
BK1***139022-364241€ 139,66 BP4K50480G 1 (BUMPER-STD TYPE>W/O MUD FLAP)
060117 -
BK1***364241-€ 130,98 BP4L50480D 1 A (BP4L-50-480E)
(BUMPER-STD TYPE>W/FRT.& RR.MUD FLAP)
- 031001
BK1*** -118551BP4L50480E 1 AN (BP4L-50-480F)
(BUMPER-STD TYPE>W/FRT.& RR.MUD FLAP)
031001 - 031225
BK1***118551-139022€ 132,91 BP4L50480F 1 AN (BP4L-50-480G)
(BUMPER-STD TYPE>W/FRT.& RR.MUD FLAP)
(BUMPER-STD TYPE>W/F.MUD FLAP,W/O R.MUD FLAP)
031225 - 060117
BK1***139022-364241€ 135,57 BP4L50480G 1 (BUMPER-STD TYPE>W/FRT.& RR.MUD FLAP)
(BUMPER-STD TYPE>W/F.MUD FLAP,W/O R.MUD FLAP)
060117 -
BK1***364241-€ 127,08 » 50481B GUARD(L),STONE-REAR Part Number Qty. Specifications Price BP4K50490D 1 A (BP4K-50-490E)
(BUMPER-STD TYPE>W/O MUD FLAP)
- 031001
BK1*** -118551BP4K50490E 1 AN (BP4K-50-490F)
(BUMPER-STD TYPE>W/O MUD FLAP)
031001 - 031225
BK1***118551-139022€ 136,92 BP4K50490F 1 AN (BP4K-50-490G)
(BUMPER-STD TYPE>W/O MUD FLAP)
031225 - 060117
BK1***139022-364241€ 139,66 BP4K50490G 1 (BUMPER-STD TYPE>W/O MUD FLAP)
060117 -
BK1***364241-€ 130,98 BP4L50490D 1 A (BP4L-50-490E)
(BUMPER-STD TYPE>W/FRT.& RR.MUD FLAP)
- 031001
BK1*** -118551€ 124,59 BP4L50490E 1 AN (BP4L-50-490F)
(BUMPER-STD TYPE>W/FRT.& RR.MUD FLAP)
031001 - 031225
BK1***118551-139022€ 124,59 BP4L50490F 1 AN (BP4L-50-490G)
(BUMPER-STD TYPE>W/FRT.& RR.MUD FLAP)
(BUMPER-STD TYPE>W/F.MUD FLAP,W/O R.MUD FLAP)
031225 - 060117
BK1***139022-364241€ 124,59 BP4L50490G 1 (BUMPER-STD TYPE>W/FRT.& RR.MUD FLAP)
(BUMPER-STD TYPE>W/F.MUD FLAP,W/O R.MUD FLAP)
060117 -
BK1***364241-€ 127,08 » 504V1B GUARD(R),STONE-FRONT Part Number Qty. Specifications Price B34L504P2 1 BUMPER-SPORTY TYPE
040818 -
BK1***196247-€ 8,08 » 504V1C GUARD (L),STONE-FRONT Part Number Qty. Specifications Price B34L504R2 1 BUMPER-SPORTY TYPE
040818 -
BK1***196247-€ 8,08 » 505A1 CAP,DRIP MOULD Part Number Qty. Specifications Price GJ6A505A1 4 € 5,26 » 50621A MOULD(R),ROOF Part Number Qty. Specifications Price BP4K509H0A 1 € 45,96 » 50621B MOULD(L),ROOF Part Number Qty. Specifications Price BP4K509L0A 1 € 45,96 » 50627C PROTECTOR Part Number Qty. Specifications Price BN8V509H9 6 ILLUST. NO.1 € 2,51 GJ6A509H9 8 ILLUST. NO.2 € 1,55 » 50629 CLIP,ROOF MOULD Part Number Qty. Specifications Price GJYA50629 6 € 2,77 » 50640 MOULD(R),FRT.BELT. Part Number Qty. Specifications Price BP4K50640C 1 AN (BP4K-50-640D)
- 030714
BK1*** -100305€ 8,09 BP4K50640D 1 G (BP4K-50-640E)
030714 -
BK1***100305-€ 8,09 » 50640Z MOULD(L),FRT.BELT. Part Number Qty. Specifications Price BP4K50650C 1 AN (BP4K-50-650D)
- 030714
BK1*** -100305€ 8,09 BP4K50650D 1 G (BP4K-50-650E)
030714 -
BK1***100305-€ 8,09 » 50645D PROTECTOR(R),MOULD-B.LINE Part Number Qty. Specifications Price BP4K50645B 1 AN (BP4K-50-645C)
- 030714
BK1*** -100305BP4K50645C 1 G (BP4K-50-645D)
030714 -
BK1***100305-€ 4,50 » 50645E PROTECTOR(L),MOULD-B.LINE Part Number Qty. Specifications Price BP4K50655B 1 AN (BP4K-50-655C)
- 030714
BK1*** -100305BP4K50655C 1 G (BP4K-50-655D)
030714 -
BK1***100305-€ 2,93 » 50660A MOULD(R),RR.BELTLINE Part Number Qty. Specifications Price BP4K50660D 1 AN (BP4K-50-660E)
- 030715
BK1*** -100309BP4K50660E 1 030715 -
BK1***100309-€ 26,02 » 50664 PROTECTOR'C'(R),BELTLINE Part Number Qty. Specifications Price BP4K50664B 1 € 2,28 » 50664A PROTECTOR'C'(L),BELTLINE Part Number Qty. Specifications Price BP4K50674B 1 € 2,28 » 50665E PROTECTOR'D'(R),BELTLINE Part Number Qty. Specifications Price BP4K50665 1 € 2,28 » 50665F PROTECTOR'D'(L),BELTLINE Part Number Qty. Specifications Price BP4K50675 1 € 2,28 » 50670A MOULD(L),RR.BELTLINE Part Number Qty. Specifications Price BP4K50670D 1 AN (BP4K-50-670E)
- 030715
BK1*** -100309BP4K50670E 1 030715 -
BK1***100309-€ 26,54 » 50742C CLIP Part Number Qty. Specifications Price G04350742 2 € 2,22 » 508V1 STRIPE NO.1(R),BODY SIDE Part Number Qty. Specifications Price BP4K508V1A 1 € 9,19 » 508V2 STRIPE NO.2(R),BODY SIDE Part Number Qty. Specifications Price BP4K508V2A 1 € 10,38 » 508V3 STRIPE NO.3(R),BODY SIDE Part Number Qty. Specifications Price BP4K508V3A 1 AN (BP4K-50-8V3B)
- 050715
BK1*** -305475€ 6,18 BP4K508V3B 1 050715 -
BK1***305475-€ 6,18 » 508V4 STRIPE NO.4(R),BODY SIDE Part Number Qty. Specifications Price BP4K508V4A 1 AN (BP4K-50-8V4B)
- 050715
BK1*** -305475€ 13,38 BP4K508V4B 1 050715 -
BK1***305475-€ 13,92 » 508V6 STRIPE NO.6(R),BODY SIDE Part Number Qty. Specifications Price BP4K508V6A 1 € 6,68 » 508W1 STRIPE NO.1(L),BODY SIDE Part Number Qty. Specifications Price BP4K508W1A 1 € 9,19 » 508W2 STRIPE NO.2(L),BODY SIDE Part Number Qty. Specifications Price BP4K508W2A 1 € 10,38 » 508W3 STRIPE NO.3(L),BODY SIDE Part Number Qty. Specifications Price BP4K508W3A 1 AN (BP4K-50-8W3B)
- 050715
BK1*** -305475€ 6,18 BP4K508W3B 1 050715 -
BK1***305475-€ 6,18 » 508W4 STRIPE NO.4(L),BODY SIDE Part Number Qty. Specifications Price BP4K508W4A 1 AN (BP4K-50-8W4B)
- 050715
BK1*** -305475€ 13,38 BP4K508W4B 1 050715 -
BK1***305475-€ 13,92 » 508W6 STRIPE NO.6(L),BODY SIDE Part Number Qty. Specifications Price BP4K508W6A 1 € 6,68 » 50963 PROTECTOR(R) Part Number Qty. Specifications Price BP4K509H2 1 € 2,32 » 50964 PROTECTOR(L) Part Number Qty. Specifications Price BP4K509L2 1 € 2,32 » 509H8 PROTECTOR(R),ROOF MLD Part Number Qty. Specifications Price BP4K509H1 1 € 2,32 » 509L8 PROTECTOR(L),ROOF MLD Part Number Qty. Specifications Price BP4K509L1 1 € 2,32 » 50M30 GARNISH(R),REAR DOOR Part Number Qty. Specifications Price BP4K50M30C 1 AN (BP4K-50-M30D)
- 040427
BK1*** -167747€ 27,04 BP4K50M30D 1 040427 -
BK1***167747-€ 28,13 » 50M30Z GARNISH(L),REAR DOOR Part Number Qty. Specifications Price BP4K50M40C 1 AN (BP4K-50-M40D)
- 040427
BK1*** -167747€ 27,04 BP4K50M40D 1 040427 -
BK1***167747-€ 28,13 » 50M37 GASKET,GARNISH Part Number Qty. Specifications Price T00150M37 2 € 1,68 » 51966 PROTECTOR Part Number Qty. Specifications Price B28C50814B 4 BUMPER-SPORTY TYPE
- 041201
BK1*** -233030€ 2,32 » 51P40 MOULD(R),SIDE STEP Part Number Qty. Specifications Price BP4K51P40B 1 BUMPER-SPORTY TYPE
- 040818
BK1*** -196247BP4K51P40C 1 BUMPER-SPORTY TYPE
040818 -
BK1***196247-» 51P50 MOULD(L),SIDE STEP Part Number Qty. Specifications Price BP4K51P50B 1 BUMPER-SPORTY TYPE
- 040818
BK1*** -196247BP4K51P50C 1 BUMPER-SPORTY TYPE
040818 -
BK1***196247-» 51SJ3 CLIP Part Number Qty. Specifications Price BN9A51SJ3 22 ILLUST. NO.5
BUMPER-STD TYPE
031225 -
BK1***139022-€ 1,98 BN9B51SJ3 2 ILLUST. NO.3
BUMPER-STD TYPE
031225 -
BK1***139022-€ 1,98 BP4K51SJ3 2 ILLUST. NO.1
(BUMPER-STD TYPE>W/O MUD FLAP)€ 3,96 BP4L51SJ3 10 ILLUST. NO.2
BUMPER-SPORTY TYPE€ 3,98 BP4P51SJ3 2 A (BN9B-51-SJ3)
ILLUST. NO.3
BUMPER-STD TYPE
- 031225
BK1*** -139022€ 4,34 BP4R51SJ3 2 ILLUST. NO.4
BUMPER-STD TYPE€ 4,73 F15151SJ3A 22 ILLUST. NO.5
BUMPER-STD TYPE
- 031225
BK1*** -139022€ 3,14 G18K51SJ3 22 ILLUST. NO.6
BUMPER-SPORTY TYPE€ 3,57 » 62864 TAPE,PROTECTOR-STOPPER Part Number Qty. Specifications Price GJ6A50EM1 4 € 1,12 » 76724 RIVET Part Number Qty. Specifications Price B09251833 4 BUMPER-SPORTY TYPE € 1,54 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997350512B 1 € 0,62 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 9CS600516B 1 € 0,73
