Mazda MAZDA 3 BK 2003-06 Mazda Rear Bumper 01/02 (STD TYPE) 02/02 (SPORTY TYPE)

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Exterior Trim > Rear Bumper

Search by part number:

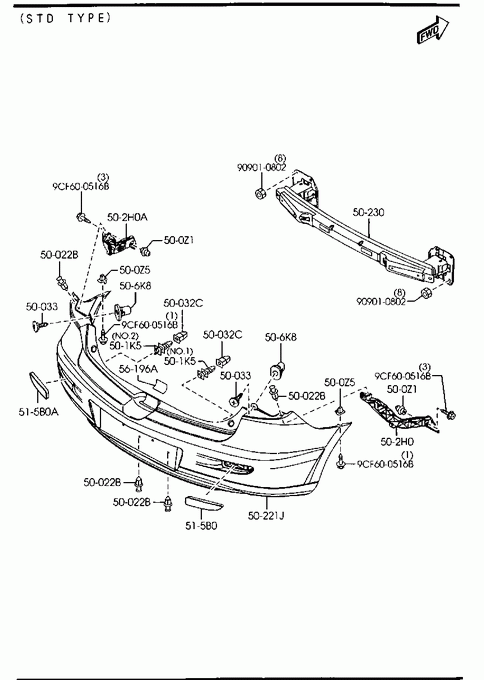

Rear Bumper

01/02 (STD TYPE)
02/02 (SPORTY TYPE)

FASTENER

Part Number	Qty.	Specifications	Price
GD7A50EA1	4	STD TYPE-BODY COLOR GRILLE 4-DOOR STD TYPE-BLACK BAR GRILLE	€ 1,32

» 50032C

GROMMET

Part Number	Qty.	Specifications	Price
BP4K50ES1	2		€ 1,73

» 50033

SCREW

Part Number	Qty.	Specifications	Price
GA2A500Z6	2	BLACK	€ 0,79

» 500Z1

RIVET,BLIND-NO. PLATE

Part Number	Qty.	Specifications	Price
GJ6A500Z1	6	4-DOOR	€ 1,34

» 500Z5

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
BP4K500Z5	2	060301 - BK1382442-*	€ 0,92
GJ6A500Z5	2	- 060301 BK1* -382442**	€ 0,98

» 501K5

PIN,LOCATOR

Part Number	Qty.	Specifications	Price
GJ6A501K5	1	ILLUST. NO.1	€ 1,99
GJ6B501K5	1	ILLUST. NO.2	€ 1,59

» 50221J

BUMPER,REAR

Part Number	Qty.	Specifications	Price
BN8F50221G	1	SPORTY TYPE 5-DOOR - 030715 BK1* -100309**
BN8F50221H	1	SPORTY TYPE 5-DOOR 030715 - 030801 BK1100309-101798*
BN8F50221J	1	SPORTY TYPE 5-DOOR 030801 - 040901 BK1101798-199903*
BN8F50221K	1	5-DOOR SPORTY TYPE 040901 - 050801 BK1199903-310728*
BN8F50221L	1	SPORTY TYPE 5-DOOR 050801 - BK1310728-*
BN8V50221F	1	STD TYPE-BODY COLOR GRILLE STD TYPE-BLACK BAR GRILLE 4-DOOR - 040901 BK1* -199903**
BN8V50221G	1	4-DOOR STD TYPE-BODY COLOR GRILLE STD TYPE-BLACK BAR GRILLE 040901 - 050713 BK1199903-304625*
BN8V50221H	1	STD TYPE-BODY COLOR GRILLE STD TYPE-BLACK BAR GRILLE 4-DOOR 050713 - BK1304625-*
BN9C50221G	1	SPORTY TYPE 4-DOOR - 040901 BK1* -199903**
BN9C50221H	1	SPORTY TYPE 4-DOOR 040901 - BK1199903-*
BP4K50221E	1	STD TYPE-BODY COLOR GRILLE 5-DOOR - 030715 BK1* -100309**
BP4K50221F	1	STD TYPE-BODY COLOR GRILLE STD TYPE-BLACK BAR GRILLE 5-DOOR 030715 - 040901 BK1100309-199903*
BP4K50221G	1	5-DOOR STD TYPE-BODY COLOR GRILLE STD TYPE-BLACK BAR GRILLE 040901 - 050801 BK1199903-310728*
BP4K50221H	1	STD TYPE-BODY COLOR GRILLE STD TYPE-BLACK BAR GRILLE 5-DOOR 050801 - BK1310728-*

» 50230

REINF,BUMPER-REAR

Part Number	Qty.	Specifications	Price
BN9A50260A	1	4-DOOR	€ 81,81
BP4K50260B	1	5-DOOR	€ 81,81

» 502H0

RETAINER(R),REAR BUMPER

Part Number	Qty.	Specifications	Price
BN8V502H1A	1	A (BN8V-50-2H1B) 4-DOOR - 030827 BK1* -105680**	€ 15,21
BN8V502H1B	1	4-DOOR 030827 - BK1105680-*	€ 15,82
BP4K502H1C	1	AN (BP4K-50-2H1D) 5-DOOR - 060214 BK1* -375544**	€ 10,60
BP4K502H1D	1	5-DOOR 060214 - BK1375544-*	€ 10,48

» 502H0A

RETAINER(L),REAR BUMPER

Part Number	Qty.	Specifications	Price
BN8V502J1A	1	A (BN8V-50-2J1B) 4-DOOR - 030827 BK1* -105680**
BN8V502J1B	1	AN (BN8V-50-2J1C) 4-DOOR 030827 - 031215 BK1105680-137047*
BN8V502J1C	1	4-DOOR 031215 - BK1137047-*	€ 15,82
BP4K502J1C	1	AN (BP4K-50-2J1D) 5-DOOR - 060214 BK1* -375544**	€ 12,46
BP4K502J1D	1	5-DOOR 060214 - BK1375544-*	€ 10,27

» 506K8

GROMEEET,SCREW

Part Number	Qty.	Specifications	Price
H260506K8	2		€ 1,44

» 515B0

REFLECTOR(R),REFLEX-SIDE

Part Number	Qty.	Specifications	Price
BN8P515C0	1	SPORTY TYPE	€ 14,27
D350515L0C	1	STD TYPE-BLACK BAR GRILLE STD TYPE-BODY COLOR GRILLE	€ 17,80

» 515B0A

REFLECTOR(L),REFLEX-SIDE

Part Number	Qty.	Specifications	Price
BN8P515B0	1	SPORTY TYPE	€ 14,27
D350515M0C	1	STD TYPE-BLACK BAR GRILLE STD TYPE-BODY COLOR GRILLE	€ 17,80

» 56196A

RUBBER,SEAL-BUMPER

Part Number	Qty.	Specifications	Price
W612502G2	1	5-DOOR	€ 2,33

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909010802	1		€ 2,18
