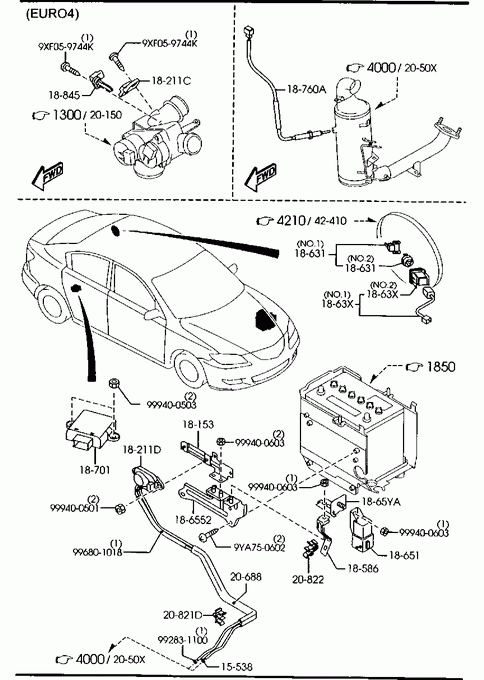

Engine Switches & Relays 01/03 (EURO3) 02/03 (EURO4) 03/03

Engine Switches & Relays |

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Body Electronics > Engine Switches & Relays

Search by part number:

Engine Switches & Relays(diesel)

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
JF0215538	1	(EURO4>HI-POWER)	€ 2,51

» 18153

BRACKET

Part Number	Qty.	Specifications	Price
Y6031858ZB	1	(EURO4>HI-POWER)

» 18211C

SENSOR,BOOST

Part Number	Qty.	Specifications	Price
Y60118211A	1		€ 128,49

» 18211D

SENSOR,BOOST

Part Number	Qty.	Specifications	Price
Y60318215C	1	(EURO4>HI-POWER)	€ 67,13

» 18586

BRACKET,LEAKAGE SENSOR

Part Number	Qty.	Specifications	Price
Y60318586A	1	(EURO4>HI-POWER)

» 18631

MAGNET,FILLER LID

Part Number	Qty.	Specifications	Price
Y60318631	1	ILLUST. NO.2 (EURO4>HI-POWER)	€ 9,83
Y6031863Y	1	A (Y603-18-63YA) ILLUST. NO.1 (EURO4>HI-POWER) - 050324 BK1* -270808**
Y6031863YA	1	ILLUST. NO.1 (EURO4>HI-POWER) 050324 - BK1270808-*	€ 111,79

» 1863X

SWITCH,FILLER BOX

Part Number	Qty.	Specifications	Price
Y60318630	1	A (Y603-18-63Z) ILLUST. NO.2 (EURO4>HI-POWER)
Y6031863ZA	1	A (Y603-18-63ZB) ILLUST. NO.1 (EURO4>HI-POWER) - 050324 BK1* -270808**
Y6031863ZB	1	AN (Y603-18-63ZC) ILLUST. NO.1 (EURO4>HI-POWER) 050324 - 050411 BK1270808-275919*	€ 21,51
Y6031863ZC	1	ILLUST. NO.1 (EURO4>HI-POWER) 050411 - BK1275919-*

» 18651

RELAY,GLOW PLUG

Part Number	Qty.	Specifications	Price
Y60118650	1	- 051201 BK1* -350909**	€ 32,83

» 186552

BRKT,GLOW RELAY

Part Number	Qty.	Specifications	Price
Y60118655B	1		€ 14,94

» 1865YA

BRACKET,RELAY

Part Number	Qty.	Specifications	Price
Y6011865YB	1	AN (Y601-18-65YC) - 040401 BK1* -160652**
Y6011865YC	1	A (Y601-18-65YD) W/DSC 040401 - 040608 BK1160652-178074*
Y6011865YD	1	W/O DSC 040901 - 051201 BK1199903-350909*

» 18701

CONTROL UNIT

Part Number	Qty.	Specifications	Price
Y60318701B	1	(EURO4>HI-POWER)	€ 318,74

» 18760A

SENSOR,THERMO

Part Number	Qty.	Specifications	Price
Y6031876XC	1	(EURO4>HI-POWER)	€ 124,41

» 18845

SENSOR,IN.AIR TEMP

Part Number	Qty.	Specifications	Price
Y60318845A	1	EURO4	€ 21,70

» 20688

PROTECTOR,BRACKET

Part Number	Qty.	Specifications	Price
Y60320688B	1	A (Y603-20-688C) (EURO4>HI-POWER) - 050324 BK1* -270808**
Y60320688C	1	(EURO4>HI-POWER) 050324 - BK1270808-*

» 20821D

CLIP,HOSE

Part Number	Qty.	Specifications	Price
Y60320821D	1	(EURO4>HI-POWER)

» 20822

CLIP,HOSE

Part Number	Qty.	Specifications	Price
Y60320822C	1	(EURO4>HI-POWER)

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996801018	1

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9XF059744K	1		€ 0,55

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400501	1		€ 0,73

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400503	1		€ 0,73

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400603	1		€ 2,05

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9YA750602	1		€ 1,76

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831100	1		€ 0,80

Engine Switches & Relays(diesel)
