- Parts > MAZDA 3 > 2003-06 > Chassis Piping & Fuel Tank > Brake Pipings(w/dynamic Stability Control System)
- Search by part number:
-

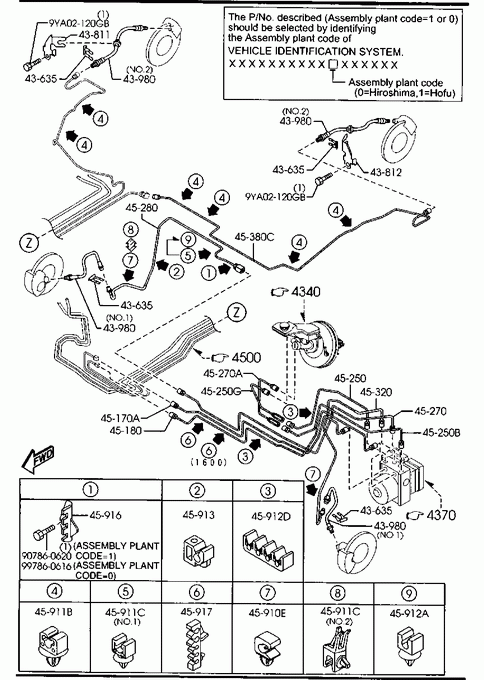

Brake Pipings(w/dynamic Stability Control System)
-
» 43635 CLIP,FLEXIBLE HOSE Part Number Qty. Specifications Price W02343635A 4 € 2,03 » 43811 BRAVKET,FLEXIBLE HOSE Part Number Qty. Specifications Price BP4K43811B 1 € 6,89 » 43812 BRACKET,FLEXIBLE HOSE Part Number Qty. Specifications Price BP4K43812B 1 » 43980 HOSE,FLEXIBLE Part Number Qty. Specifications Price BP4K43980D 2 AN (BP4K-43-980E)
ILLUST. NO.1
- 040127
BK1*** -143744€ 48,86 BP4K43980E 2 AN (BP4K-43-980F)
ILLUST. NO.1
040127 - 040311
BK1***143744-155437BP4K43980F 2 ILLUST. NO.1
040311 -
BK1***155437-€ 50,84 BP4L43980D 2 AN (BP4L-43-980E)
ILLUST. NO.2
- 040612
BK1*** -179738€ 30,60 BP4L43980E 2 ILLUST. NO.2
040612 -
BK1***179738-€ 37,86 » 45170A PIPE,REAR BRAKE Part Number Qty. Specifications Price BP4K45150B 1 AN (BP4K-45-150C)
- 041101
BK1*** -221544BP4K45150D 1 041101 -
BK1***221544-€ 10,19 » 45180 PIPE,REAR BRAKE Part Number Qty. Specifications Price BP4K45160C 1 AN (BP4K-45-160D)
- 041101
BK1*** -221544€ 11,15 BP4K45160D 1 041101 -
BK1***221544-€ 11,60 » 45250 PIPE,BRAKE-FRT Part Number Qty. Specifications Price BP4L45250E 1 - 030805
BK1*** -102409€ 24,30 » 45250B PIPE,BRAKE-MAIN Part Number Qty. Specifications Price BP4L45350D 1 - 030805
BK1*** -102409» 45250G PIPE,BRAKE-F.MAIN Part Number Qty. Specifications Price BP4L4533XB 1 A (BP4L-45-33XC)
- 030805
BK1*** -102409€ 30,66 BP4L4533XC 1 AN (BP4L-45-33XD)
030805 -
BK1***102409-€ 31,27 » 45270 PIPE(R),BRAKE-FRONT Part Number Qty. Specifications Price BP4K45320B 1 € 11,60 » 45270A PIPE,BRAKE-FRONT Part Number Qty. Specifications Price BP4L45240B 1 A (BP4L-45-240C)
- 030805
BK1*** -102409BP4L45240C 1 AN (BP4L-45-240D)
030805 -
BK1***102409-» 45280 PIPE(R),BRAKE-FRONT Part Number Qty. Specifications Price BP4K45280E 1 ASSEMBLY PLANT CODE=1
(GASOLINE>4-DOOR)
050501 -
BK1***281438-€ 14,51 C23545280A 1 ASSEMBLY PLANT CODE=0
(GASOLINE>4-DOOR)
050501 -
BK1***281438-» 45320 PIPE(L),BRAKE-FRONT Part Number Qty. Specifications Price BP4K45210C 1 ASSEMBLY PLANT CODE=1
(GASOLINE>4-DOOR)
050801 -
BK1***310728-€ 15,58 C23545210A 1 ASSEMBLY PLANT CODE=0
(GASOLINE>4-DOOR)
050801 -
BK1***310728-» 45380C PIPE(L),BRAKE-REAR Part Number Qty. Specifications Price BP4K45390D 1 AN (BP4K-45-390E)
- 030715
BK1*** -100309BP4K45390E 1 A (BP4K-45-390F)
030715 - 031201
BK1***100309-133399BP4K45390F 1 031201 -
BK1***133399-» 45910E HOLDER,PIPE Part Number Qty. Specifications Price BP4K45911 2 (GASOLINE>4-DOOR)
- 050501
BK1*** -281438€ 2,38 » 45911B HOLDER,PIPE Part Number Qty. Specifications Price BN8B45919 6 AN (BN8B-45-919A)
- 040315
BK1*** -156304€ 1,35 BN8B45919A 6 040315 -
BK1***156304-€ 1,35 » 45911C CLIP,PIPE Part Number Qty. Specifications Price BC1D45916 1 ILLUST. NO.1
- 030901
BK1*** -106893€ 4,57 C23545911 1 ILLUST. NO.2
ASSEMBLY PLANT CODE=0
(GASOLINE>4-DOOR)
050501 -
BK1***281438-€ 4,91 GJ6A45911A 1 ILLUST. NO.1
030901 - 050901
BK1***106893-318617€ 1,03 » 45912A CLIP Part Number Qty. Specifications Price BP4S45912 1 050901 -
BK1***318617-€ 2,90 » 45912D HOLDER,PIPE Part Number Qty. Specifications Price BP4K45914 2 € 2,13 » 45913 HOLDER,PIPE Part Number Qty. Specifications Price BP4K45913 1 € 2,23 » 45916 HOLDER,PIPE Part Number Qty. Specifications Price BP4K4591ZA 1 AN (BP4K-45-91ZB)
- 040401
BK1*** -160652€ 24,01 BP4K4591ZB 1 AN (BP4K-45-91ZC)
040401 - 050901
BK1***160652-318617BP4K4591ZC 1 050901 -
BK1***318617-» 45917 HOLDER,PIPE Part Number Qty. Specifications Price BP4K45917A 2 1600 € 4,48 » 90780 BOLT Part Number Qty. Specifications Price 9YA02120GB 1 € 4,55 » 90786 SCREW & WASHER,TAPPING Part Number Qty. Specifications Price 907860620 1 € 2,75 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860616 1 € 1,54
