Mazda MAZDA 3 BK 2003-06 Mazda Brake Pipings

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Chassis Piping & Fuel Tank > Brake Pipings(w/o Dynamic Stability Control System)

Search by part number:

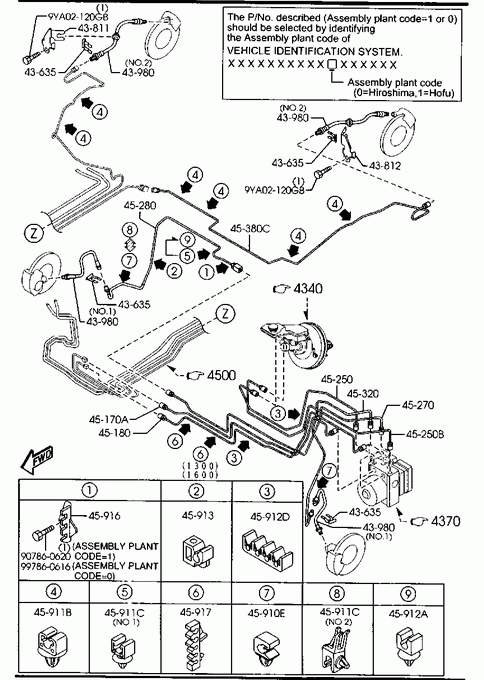

Brake Pipings(w/o Dynamic Stability Control System)

CLIP,FLEXIBLE HOSE

Part Number	Qty.	Specifications	Price
W02343635A	4		€ 2,03

» 43811

BRAVKET,FLEXIBLE HOSE

Part Number	Qty.	Specifications	Price
BP4K43811B	1		€ 6,89

» 43812

BRACKET,FLEXIBLE HOSE

Part Number	Qty.	Specifications	Price
BP4K43812B	1

» 43980

HOSE,FLEXIBLE

Part Number	Qty.	Specifications	Price
BP4K43980D	2	AN (BP4K-43-980E) ILLUST. NO.1 - 040127 BK1* -143744**	€ 48,86
BP4K43980E	2	AN (BP4K-43-980F) ILLUST. NO.1 040127 - 040311 BK1143744-155437*
BP4K43980F	2	ILLUST. NO.1 040311 - BK1155437-*	€ 50,84
BP4L43980D	2	AN (BP4L-43-980E) ILLUST. NO.2 - 040612 BK1* -179738**	€ 30,60
BP4L43980E	2	ILLUST. NO.2 040612 - BK1179738-*	€ 37,86

» 45170A

PIPE,REAR BRAKE

Part Number	Qty.	Specifications	Price
BP4K45150B	1	AN (BP4K-45-150C) - 041101 BK1* -221544**
BP4K45150D	1	041101 - BK1221544-*	€ 10,19

» 45180

PIPE,REAR BRAKE

Part Number	Qty.	Specifications	Price
BP4K45160C	1	AN (BP4K-45-160D) - 041101 BK1* -221544**	€ 11,15
BP4K45160D	1	041101 - BK1221544-*	€ 11,60

» 45250

PIPE,BRAKE-FRT

Part Number	Qty.	Specifications	Price
BP4K45250C	1	AN (BP4K-45-250D) - 030722 BK1* -100528**
BP4K45250D	1	030722 - BK1100528-*

» 45250B

PIPE,BRAKE-MAIN

Part Number	Qty.	Specifications	Price
BP4K45350B	1

» 45270

PIPE(R),BRAKE-FRONT

Part Number	Qty.	Specifications	Price
BP4K45320B	1		€ 11,60

» 45280

PIPE(R),BRAKE-FRONT

Part Number	Qty.	Specifications	Price
BP4K45280E	1	ASSEMBLY PLANT CODE=1 (GASOLINE>4-DOOR) 050501 - BK1281438-*	€ 14,51
C23545280A	1	ASSEMBLY PLANT CODE=0 (GASOLINE>4-DOOR) 050501 - BK1281438-*

» 45320

PIPE(L),BRAKE-FRONT

Part Number	Qty.	Specifications	Price
BP4K45210C	1	ASSEMBLY PLANT CODE=1 (GASOLINE>4-DOOR) 050801 - BK1310728-*	€ 15,58
C23545210A	1	ASSEMBLY PLANT CODE=0 (GASOLINE>4-DOOR) 050801 - BK1310728-*

» 45380C

PIPE(L),BRAKE-REAR

Part Number	Qty.	Specifications	Price
BP4K45390D	1	AN (BP4K-45-390E) - 030715 BK1* -100309**
BP4K45390E	1	A (BP4K-45-390F) 030715 - 031201 BK1100309-133399*
BP4K45390F	1	031201 - BK1133399-*

» 45910E

HOLDER,PIPE

Part Number	Qty.	Specifications	Price
BP4K45911	2	(GASOLINE>4-DOOR) - 050501 BK1* -281438**	€ 2,38

» 45911B

HOLDER,PIPE

Part Number	Qty.	Specifications	Price
BN8B45919	6	AN (BN8B-45-919A) - 040315 BK1* -156304**	€ 1,35
BN8B45919A	6	040315 - BK1156304-*	€ 1,35

» 45911C

CLIP,PIPE

Part Number	Qty.	Specifications	Price
BC1D45916	1	ILLUST. NO.1 - 030901 BK1* -106893**	€ 4,57
C23545911	1	ILLUST. NO.2 ASSEMBLY PLANT CODE=0 (GASOLINE>4-DOOR) 050501 - BK1281438-*	€ 4,91
GJ6A45911A	1	ILLUST. NO.1 030901 - 050901 BK1106893-318617*	€ 1,03

» 45912A

CLIP

Part Number	Qty.	Specifications	Price
BP4S45912	1	050901 - BK1318617-*	€ 2,90

» 45912D

HOLDER,PIPE

Part Number	Qty.	Specifications	Price
BP4K45914	2		€ 2,13

» 45913

HOLDER,PIPE

Part Number	Qty.	Specifications	Price
BP4K45913	1		€ 2,23

» 45916

HOLDER,PIPE

Part Number	Qty.	Specifications	Price
BP4K4591ZA	1	AN (BP4K-45-91ZB) - 040401 BK1* -160652**	€ 24,01
BP4K4591ZB	1	AN (BP4K-45-91ZC) 040401 - 050901 BK1160652-318617*
BP4K4591ZC	1	050901 - BK1318617-*

» 45917

HOLDER,PIPE

Part Number	Qty.	Specifications	Price
BP4K45917A	2	1300 1600	€ 4,48

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA02120GB	1		€ 4,55

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860620	1		€ 2,75

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860616	1		€ 1,54

Brake Pipings(w/o Dynamic Stability Control System)
