Fuel Tank 01/04 ((GASOLINE)>(ECE)) ((GASOLINE)>(ISRAEL))(-3C01) 02/04 ((GASOLINE)>(ISRAEL))(3C01-) 03/04 ((DIESEL)>(EURO3)) 04/04 ((DIESEL)>(EURO4))

Fuel Tank |

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Chassis Piping & Fuel Tank > Fuel Tank

Search by part number:

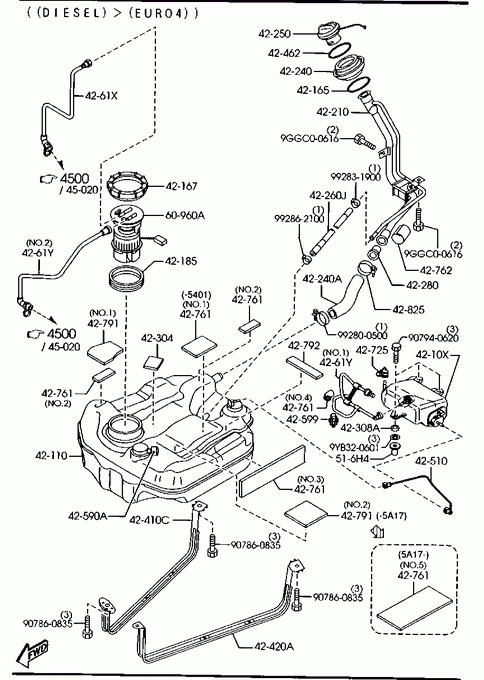

Fuel Tank

01/04 ((GASOLINE)>(ECE)) ((GASOLINE)>(ISRAEL))(-3C01)
02/04 ((GASOLINE)>(ISRAEL))(3C01-)
03/04 ((DIESEL)>(EURO3))
04/04 ((DIESEL)>(EURO4))

» 4210X

MODULE,TANK

Part Number	Qty.	Specifications	Price
BN9M4210XC	1	AN (BN9M-42-10XD) (DIESEL>EURO4>HI-POWER) - 050706 BK1* -302585**
BN9M4210XD	1	AN (BN9M-42-10XE) (DIESEL>EURO4>HI-POWER) 050706 - 051118 BK1302585-345633*	€ 309,79
BN9M4210XE	1	(DIESEL>EURO4>HI-POWER) 051118 - BK1345633-*	€ 297,76

» 42110

TANK,FUEL

Part Number	Qty.	Specifications	Price
BN9M42110C	1	AN (BN9M-42-110D) (DIESEL>EURO4>HI-POWER) - 051001 BK1* -327717**	€ 394,88
BN9M42110D	1	(DIESEL>EURO4>HI-POWER) 051001 - BK1327717-*	€ 410,84
BP1E42110	1	AN (BP1E-42-110A) (GASOLINE>ISRAEL) 040708 - 041201 BK1187692-233030*
BP1E42110A	1	(GASOLINE>ISRAEL) 041201 - BK1233030-*
BP4K42110B	1	AN (BP4K-42-110C) (GASOLINE>ISRAEL) - 040708 BK1* -187692**	€ 400,56
BP4K42110C	1	AN (BP4K-42-110D) (GASOLINE>ECE) 041201 - 051001 BK1233030-327717*	€ 400,56
BP4K42110D	1	(GASOLINE>ECE) 051001 - BK1327717-*	€ 408,57
BP8F42110	1	AN (BP8F-42-110A) (DIESEL>EURO3) - 041201 BK1* -233030**
BP8F42110A	1	(DIESEL>EURO3) (DIESEL>EURO4>LO-POWER) 041201 - BK1233030-*	€ 319,35

» 42165

RING,'O'

Part Number	Qty.	Specifications	Price
BP4K42252	1		€ 4,26

» 42167

NUT,UNION

Part Number	Qty.	Specifications	Price
BP4L42167	1		€ 21,35

» 42185

GASKET

Part Number	Qty.	Specifications	Price
BP4K42166	1		€ 21,37

» 42210

PIPE,FILLER

Part Number	Qty.	Specifications	Price
BN9J42210	1	DIESEL - 050501 BK1* -281438**	€ 95,56
BN9J42210A	1	DIESEL 050501 - BK1281438-*	€ 95,56
BP4L42210	1	AN (BP4L-42-210A) GASOLINE - 030715 BK1* -100309**	€ 93,87
BP4L42210A	1	GASOLINE 030715 - 050501 BK1100309-281438*	€ 97,67
BP4L42210B	1	GASOLINE 050501 - BK1281438-*	€ 93,85

» 42240

COVER,DUST

Part Number	Qty.	Specifications	Price
B32H42241B	1	AN (B32H-42-241C) - 030901 BK1* -106893**	€ 22,14
B32H42241C	1	030901 - BK1106893-*	€ 23,03

» 42240A

HOSE,JOINT

Part Number	Qty.	Specifications	Price
BN9J42231	1	DIESEL	€ 24,89
BP4L42231	1	GASOLINE	€ 23,05

» 42250

CAP,FILLER

Part Number	Qty.	Specifications	Price
BJ3E42250	1	GASOLINE	€ 40,09
GJ2B42250A	1	DIESEL	€ 39,84

» 42260J

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
BN9J42232	1	DIESEL - 050501 BK1* -281438**
BN9J42232B	1	DIESEL 050501 - BK1281438-*	€ 16,79
BP4L42232	1	GASOLINE - 050501 BK1* -281438**
BP4L42232B	1	GASOLINE 050501 - BK1281438-*	€ 18,21

» 42280

VALVE,NON RETURN

Part Number	Qty.	Specifications	Price
D35042270	1		€ 6,15

» 42304

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
B32H42763	1	DIESEL	€ 13,12
BP4K42763	1	GASOLINE - 050701 BK1* -301259**	€ 16,18

» 42308A

SPACER

Part Number	Qty.	Specifications	Price
BN9M42297A	3	(DIESEL>EURO4>HI-POWER)

» 42410C

BAND(R),TANK FIX.

Part Number	Qty.	Specifications	Price
BP4K42710A	1		€ 40,64

» 42420A

BAND(L),TANK FIX.

Part Number	Qty.	Specifications	Price
BP4K42720A	1		€ 40,64

» 42462

GASKET,CAP

Part Number	Qty.	Specifications	Price
GJ6A42252A	1		€ 4,01

» 42510

PIPE,FUEL

Part Number	Qty.	Specifications	Price
BN9M4251XB	1	(DIESEL>EURO4>HI-POWER)
BP4K4251XA	1	AN (BP4K-42-51XB) GASOLINE - 031117 BK1* -130090**	€ 33,17
BP4K4251XB	1	GASOLINE 031117 - BK1130090-*	€ 34,51

» 42590A

CHAMBER,EVAPO.-TANK BRKT

Part Number	Qty.	Specifications	Price
BN9M42590	1	DIESEL	€ 28,20

» 42599

CLIP,HOSE

Part Number	Qty.	Specifications	Price
BN9M42553A	1	(DIESEL>EURO4>HI-POWER)

» 4261X

PIPE,FUEL

Part Number	Qty.	Specifications	Price
BN9M4261XA	1	AN (BN9M-42-61XB) DIESEL	€ 36,22
BP1E4261XA	1	AN (BP1E-42-61XB) (GASOLINE>ISRAEL) 031201 - 040216 BK1133399-148847*
BP1E4261XB	1	(GASOLINE>ISRAEL) 040216 - BK1148847-*
BP4K4261X	1	(GASOLINE>ISRAEL) - 031201 BK1* -133399**	€ 28,05

» 4261Y

PIPE,FUEL

Part Number	Qty.	Specifications	Price
BN9M4251YE	1	ILLUST. NO.1 (DIESEL>EURO4>HI-POWER)
BN9M4261YB	1	ILLUST. NO.2 DIESEL	€ 69,99
BP1E4261Y	1	AN (BP1E-42-61YA) ILLUST. NO.2 (GASOLINE>ISRAEL) 031201 - 040216 BK1133399-148847*
BP1E4261YA	1	AN (BP1E-42-61YB) ILLUST. NO.2 (GASOLINE>ISRAEL) 040216 - 041101 BK1148847-221544*
BP1E4261YB	1	ILLUST. NO.2 (GASOLINE>ISRAEL) 041101 - BK1221544-*
BP4K4251Y	1	ILLUST. NO.1 GASOLINE	€ 45,47

» 42725

CONNECTOR

Part Number	Qty.	Specifications	Price
BN9M42691	2	(DIESEL>EURO4>HI-POWER)	€ 15,13

» 42761

PAD

Part Number	Qty.	Specifications	Price
BN8F42761	1	A (BN8F-42-762) ILLUST. NO.3 030916 - 040301 BK1112421-152412*	€ 4,46
BN8F42762	1	420 X 65 X 15 ILLUST. NO.3 040301 - BK1152412-*	€ 20,40
BN9M42761	1	80 X 15 X 2 ILLUST. NO.4 (DIESEL>EURO4>HI-POWER)
BP1E42761	1	ILLUST. NO.4 ISRAEL 040401 - 050201 BK1160652-251553*
BP4K42761	2	ILLUST. NO.1 - 031021 BK1* -124101**	€ 5,59
BP4L42761	1	250 X 110 X 2 ILLUST. NO.5 (DIESEL>4-DOOR>EURO4) (DIESEL>5-DOOR>EURO4) 051017 - BK1331716-*	€ 7,31
S31F42761A	3	100 X 35 X 2 ILLUST. NO.2 ASSEMBLY PLANT CODE=0 (GASOLINE>4-DOOR) 050501 - BK1281438-*	€ 1,32

» 42762

PAD,FUEL FILLER PIPE

Part Number	Qty.	Specifications	Price
BP4K42762	1	125X50X2	€ 5,27

» 42791

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
BP4K42764	1	A (BP4K-42-764A) ILLUST. NO.2 (DIESEL>4-DOOR>EURO4) (DIESEL>5-DOOR>EURO4) - 051017 BK1* -331716**
D35042763	1	ILLUST. NO.3 ASSEMBLY PLANT CODE=0 (GASOLINE>4-DOOR) 050801 - BK1310728-*	€ 2,37
GJ6A42763	1	160 X 160 X 2 ILLUST. NO.1	€ 6,10

» 42792

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
BP4K42765	1	GASOLINE (DIESEL>4-DOOR>EURO3) (DIESEL>5-DOOR>EURO3) 031021 - 050401 BK1124101-273631*	€ 14,40

» 42825

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
GJ6A42239	1	(5-DOOR>ISRAEL) 060301 - BK1382442-*
TC4042239	1	- 060301 BK1* -382442**	€ 3,03

» 516H4

NUT

Part Number	Qty.	Specifications	Price
BP4K519N8	1	(DIESEL>EURO4>HI-POWER)	€ 2,23

» 60960A

GAUGE,FUEL TANK

Part Number	Qty.	Specifications	Price
BN9M60960A	1	AN (BN9M-60-960C) DIESEL - 050301 BK1* -261860**
BN9M60960C	1	AN (BN9M-60-960D) DIESEL 050301 - 050601 BK1261860-290070*	€ 127,97
BN9M60960D	1	AN (BN9M-60-960E) DIESEL 050601 - BK1290070-*	€ 130,53

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9GGC00616	1		€ 0,94

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860835	1		€ 2,61

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907940620	1		€ 2,19

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992800500	1		€ 7,08

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831900	1		€ 1,88

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862100	1		€ 2,62

» 99577

NUT,SPEED

Part Number	Qty.	Specifications	Price
9YB320601	1		€ 0,94
