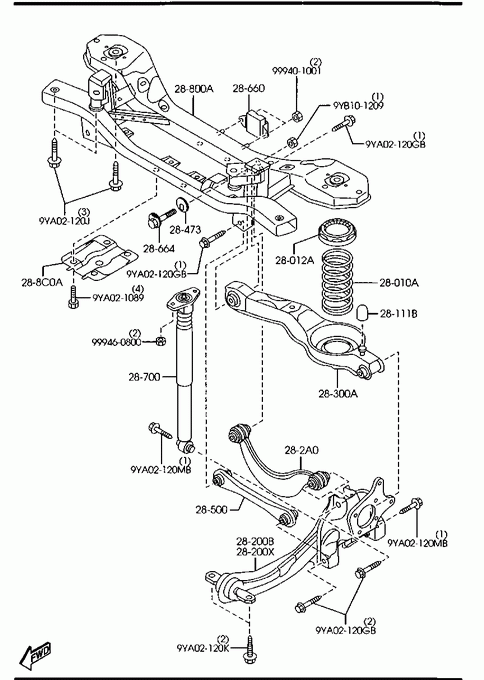

Rear Suspension Mechanisms
-
» 28010A SPRING,COIL-REAR Part Number Qty. Specifications Price B32H28011B 2 4-DOOR € 52,50 BP4K28011B 2 5-DOOR € 52,50 » 28012A SHEET,RUBBER Part Number Qty. Specifications Price BP4K28012A 2 € 6,67 » 28111B STOPPER,BUMP Part Number Qty. Specifications Price BP4K281B0A 2 € 5,10 » 28200B LINK(R),TRAILING Part Number Qty. Specifications Price BP4K28200C 1 A (BP4K-28-200D)
- 030822
BK1*** -104784€ 178,51 BP4K28200D 1 AN (BP4K-28-200E)
030822 - 031222
BK1***104784-138054€ 178,51 BP4K28200E 1 AN (BP4K-28-200F)
031222 - 041101
BK1***138054-221544€ 178,51 BP4K28200F 1 AN (BP4K-28-200G)
041101 - 060111
BK1***221544-362101€ 178,51 BP4K28200H 1 AN (BP4K-28-200J)
060111 -
BK1***362101-€ 232,27 » 28200X LINK(L),TRAILING Part Number Qty. Specifications Price BP4K28250C 1 A (BP4K-28-250D)
- 030822
BK1*** -104784€ 203,57 BP4K28250D 1 AN (BP4K-28-250E)
030822 - 031222
BK1***104784-138054€ 203,57 BP4K28250E 1 AN (BP4K-28-250F)
031222 - 041101
BK1***138054-221544€ 203,57 BP4K28250F 1 AN (BP4K-28-250G)
041101 - 060111
BK1***221544-362101€ 203,57 BP4K28250H 1 AN (BP4K-28-250J)
060111 -
BK1***362101-€ 207,64 » 282A0 ARM,UPPER-REAR Part Number Qty. Specifications Price BP4K28C10B 2 € 59,87 » 28300A ARM,LOWER-REAR Part Number Qty. Specifications Price BP4K28300C 2 AN (BP4K-28-300D)
- 030723
BK1*** -100628BP4K28300D 2 AN (BP4K-28-300E)
030723 - 050701
BK1***100628-301259€ 86,76 BP4K28300E 2 050701 -
BK1***301259-€ 90,27 » 28473 PLATE,CAM-SUB FRAME Part Number Qty. Specifications Price BP4K28473A 2 € 2,62 » 28500 LINK,LATERAL Part Number Qty. Specifications Price BP4K28500C 2 AN (BP4K-28-500D)
- 060101
BK1*** -360559€ 32,33 BP4K28500D 2 AN (BP4K-28-500E)
060101 - 060201
BK1***360559-370387€ 38,38 BP4K28500E 2 060201 -
BK1***370387-€ 39,15 » 28660 DAMPER,DYNAMIC Part Number Qty. Specifications Price C23628660A 1 050501 -
BK1***281438-€ 83,99 » 28664 BOLT,ADJUST Part Number Qty. Specifications Price BP4K2866ZB 2 € 6,32 » 28700 DAMPER,REAR Part Number Qty. Specifications Price BP4K28910D 2 AN (BP4K-28-910E) € 69,72 » 28800A MEMBER,CROSS Part Number Qty. Specifications Price BP4K28800D 1 - 040601
BK1*** -175590€ 558,34 BP4K28800E 1 AN (BP4K-28-800F)
040601 - 050201
BK1***175590-251553BP4K28800F 1 AN (BP4K-28-800G)
050201 - 050501
BK1***251553-281438€ 558,34 BP4K28800G 1 AN (BP4K-28-800H)
050501 - 051001
BK1***281438-327717€ 558,34 BP4K28800H 1 051001 -
BK1***327717-€ 580,90 » 288C0A BRACKET,CROSS MEMBER Part Number Qty. Specifications Price BP4K288C1C 1 € 9,68 » 90780 BOLT Part Number Qty. Specifications Price 9YA021089 1 » 90780 BOLT Part Number Qty. Specifications Price 9YA02120GB 1 € 4,55 » 90780 BOLT Part Number Qty. Specifications Price 9YA02120J 1 € 7,51 » 90780 BOLT Part Number Qty. Specifications Price 9YA02120K 1 € 4,32 » 90780 BOLT Part Number Qty. Specifications Price 9YA02120MB 1 € 2,70 » 90901 NUT Part Number Qty. Specifications Price 999460800 1 € 2,54 » 90901 NUT Part Number Qty. Specifications Price 9YB101209 1 € 3,52 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999401001 1 € 2,07
