Front Drive Shafts 01/04 (-6310)((MT)>(GASOLINE)) 02/04 (6310-)((MT)>(GASOLINE)) 03/04 ((MT)>(DIESEL)) 04/04 (AT)

Front Drive Shafts |

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Chassis Axle Suspension,brake & Steering > Front Drive Shafts

Search by part number:

Front Drive Shafts(1300cc & 1600cc)

01/04 (-6310)((MT)>(GASOLINE))
02/04 (6310-)((MT)>(GASOLINE))
03/04 ((MT)>(DIESEL))

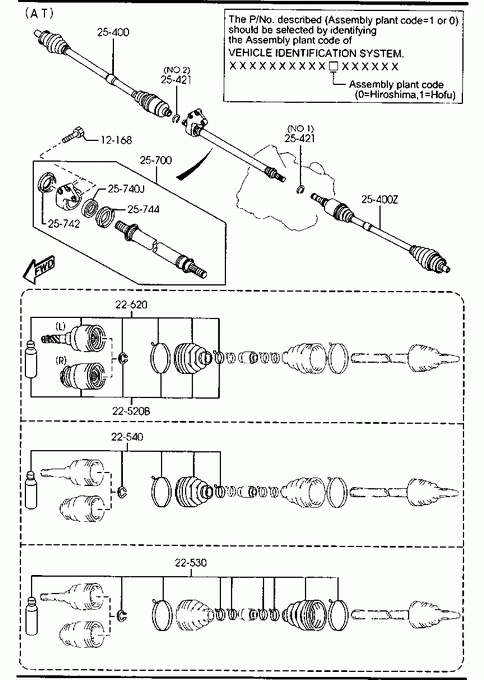

04/04 (AT)

BOLT,REAMER

Part Number	Qty.	Specifications	Price
9YA191003A	3	GASOLINE	€ 2,79

JOINT SET(R),INNER

Part Number	Qty.	Specifications	Price
FG0122520	1	(MANUAL TRANSMISSION>GASOLINE) - 060310 BK1* -383567**	€ 294,79
FG0222520	1	AUTOMATIC TRANSMISSION	€ 274,03
FG0322520	1	(MANUAL TRANSMISSION>GASOLINE) 060310 - BK1383567-*

BOOT SET,OUTER JOINT

Part Number	Qty.	Specifications	Price
FG0222530	2	AUTOMATIC TRANSMISSION	€ 86,30

BOOT SET,INNER JOINT

Part Number	Qty.	Specifications	Price
FG0222540	2	AUTOMATIC TRANSMISSION	€ 55,15

JOINT SET(L),INNER

Part Number	Qty.	Specifications	Price
FG0122620	1	(MANUAL TRANSMISSION>GASOLINE)	€ 197,44
FG0222620	1	AUTOMATIC TRANSMISSION	€ 197,44

SHAFT(R),DRIVE

Part Number	Qty.	Specifications	Price
FG0125500D	1	(MANUAL TRANSMISSION>GASOLINE) - 030715 BK1* -100309**	€ 476,23
FG0125500E	1	AN (FG01-25-500F) (MANUAL TRANSMISSION>GASOLINE) 050106 - 050708 BK1243029-303411*	€ 437,88
FG0125500F	1	(MANUAL TRANSMISSION>GASOLINE) 050708 - 060310 BK1303411-383567*	€ 490,03
FG0125500G	1	(MANUAL TRANSMISSION>GASOLINE) 060310 - BK1383567-*
FG0225500C	1	AUTOMATIC TRANSMISSION - 030715 BK1* -100309**	€ 423,11
FG0225500D	1	AN (FG02-25-500E) ASSEMBLY PLANT CODE=1 AUTOMATIC TRANSMISSION 050106 - 050608 BK1243029-292618*	€ 406,68
FG0225500E	1	ASSEMBLY PLANT CODE=1 AUTOMATIC TRANSMISSION 050608 - BK1292618-*	€ 423,11
FG0825500	1	AN (FG08-25-500A) ASSEMBLY PLANT CODE=0 (AUTOMATIC TRANSMISSION>GASOLINE>4-DOOR) 050501 - 050608 BK1281438-292618*
FG0825500A	1	ASSEMBLY PLANT CODE=0 (AUTOMATIC TRANSMISSION>GASOLINE>4-DOOR) 050608 - BK1292618-*
FR012550X	1	(MANUAL TRANSMISSION>GASOLINE) 030715 - 050106 BK1100309-243029*	€ 406,60
FR022550X	1	AUTOMATIC TRANSMISSION 030715 - 050106 BK1100309-243029*
GG2925500B	1	AN (GG29-25-500C) (MANUAL TRANSMISSION>DIESEL) 050106 - 050713 BK1243029-304625*
GG2925500C	1	(MANUAL TRANSMISSION>DIESEL) 050713 - BK1304625-*	€ 535,28
GR292550XA	1	(MANUAL TRANSMISSION>DIESEL) - 050106 BK1* -243029**

SHAFT(L),DRIVE

Part Number	Qty.	Specifications	Price
FG0125600D	1	(MANUAL TRANSMISSION>GASOLINE) - 030715 BK1* -100309**	€ 455,57
FG0125600E	1	AN (FG01-25-600F) ASSEMBLY PLANT CODE=1 (MANUAL TRANSMISSION>GASOLINE) 050106 - 050708 BK1243029-303411*	€ 494,59
FG0125600F	1	ASSEMBLY PLANT CODE=1 (MANUAL TRANSMISSION>GASOLINE) 050708 - BK1303411-*	€ 504,48
FG0225600C	1	AUTOMATIC TRANSMISSION - 030715 BK1* -100309**	€ 423,11
FG0225600D	1	AN (FG02-25-600E) ASSEMBLY PLANT CODE=1 AUTOMATIC TRANSMISSION 050106 - 050608 BK1243029-292618*	€ 494,64
FG0225600E	1	ASSEMBLY PLANT CODE=1 AUTOMATIC TRANSMISSION 050608 - BK1292618-*	€ 504,53
FG0725600	1	AN (FG07-25-600A) ASSEMBLY PLANT CODE=0 (MANUAL TRANSMISSION>GASOLINE>4-DOOR) 050501 - 050708 BK1281438-303411*
FG0725600A	1	ASSEMBLY PLANT CODE=0 MANUAL TRANSMISSION>GASOLINE>4-DOOR) 050708 - BK1303411-*
FG0825600	1	AN (FG08-25-600A) ASSEMBLY PLANT CODE=0 (AUTOMATIC TRANSMISSION>GASOLINE>4-DOOR) 050501 - 050608 BK1281438-292618*
FG0825600A	1	ASSEMBLY PLANT CODE=0 (AUTOMATIC TRANSMISSION>GASOLINE>4-DOOR) 050608 - BK1292618-*
FR012560X	1	(MANUAL TRANSMISSION>GASOLINE) 030715 - 050106 BK1100309-243029*	€ 446,64
FR022560X	1	AUTOMATIC TRANSMISSION 030715 - 050106 BK1100309-243029*
GG2925600E	1	AN (GG29-25-600F) (MANUAL TRANSMISSION>DIESEL) 050106 - 050713 BK1243029-304625*	€ 386,36
GG2925600F	1	(MANUAL TRANSMISSION>DIESEL) 050713 - BK1304625-*	€ 401,97
GR292560XD	1	(MANUAL TRANSMISSION>DIESEL) - 050106 BK1* -243029**	€ 401,97

CLIP

Part Number	Qty.	Specifications	Price
F00225421	1	ILLUST. NO.1 (MANUAL TRANSMISSION>GASOLINE)	€ 1,57
G00325421	1	ILLUST. NO.1 AUTOMATIC TRANSMISSION	€ 1,23
G05425421	1	ILLUST. NO.2	€ 1,46

SHAFT,JOINT

Part Number	Qty.	Specifications	Price
FG0225700A	1	AUTOMATIC TRANSMISSION	€ 232,54
FG0325700B	1	A (FG03-25-700C) (MANUAL TRANSMISSION>GASOLINE) - 060310 BK1* -383567**	€ 227,98
FG0325700C	1	(MANUAL TRANSMISSION>GASOLINE) 060310 - BK1383567-*	€ 187,01
GG2825700B	1	(MANUAL TRANSMISSION>DIESEL)	€ 219,96

BEARING,BALL

Part Number	Qty.	Specifications	Price
FA0925155	1	AUTOMATIC TRANSMISSION (MANUAL TRANSMISSION>GASOLINE)	€ 12,56

SEAL,DUST

Part Number	Qty.	Specifications	Price
G00325742A	1	(MANUAL TRANSMISSION>GASOLINE) AUTOMATIC TRANSMISSION	€ 4,29

SEAL,DUST

Part Number	Qty.	Specifications	Price
G56025744	1	KEEPER (MANUAL TRANSMISSION>GASOLINE) AUTOMATIC TRANSMISSION	€ 4,59
