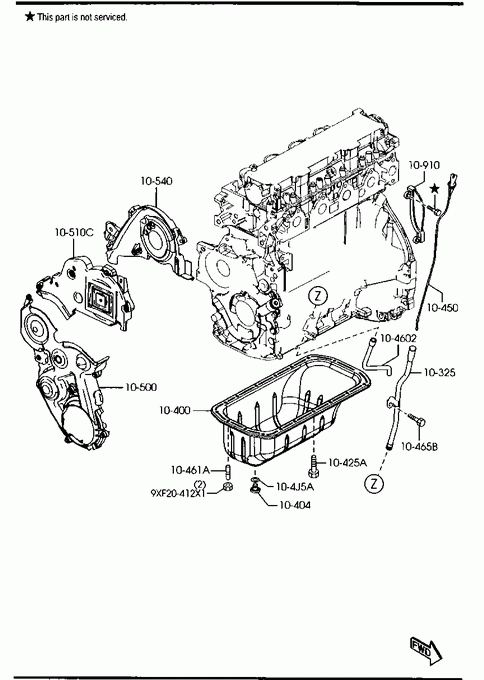

Oil Pan & Timing Cover(diesel)
-
» 10325 PIPE,OIL LEVEL GAUGE Part Number Qty. Specifications Price Y60110440A 1 AN (Y601-10-440B)
- 040417
BK1*** -165277Y60110440B 1 AN (Y601-10-440C)
040417 - 050324
BK1***165277-270808€ 11,66 Y60110440D 1 A (Y601-10-440E)
050324 -
BK1***270808-€ 12,13 » 10400 PAN,OIL Part Number Qty. Specifications Price Y40110400B 1 € 160,82 » 10404 PLUG,DRAIN Part Number Qty. Specifications Price Y40110404 1 € 3,65 » 10425A BOLT Part Number Qty. Specifications Price Y60110466 16 » 10450 GAUGE,OIL LEVEL Part Number Qty. Specifications Price Y60110450B 1 € 18,84 » 104602 PIPE,OIL LEVEL GAUGE Part Number Qty. Specifications Price Y40110442 1 - 040405
BK1*** -161504€ 21,91 Y40110442A 1 040405 -
BK1***161504-€ 7,04 » 10461A STUD Part Number Qty. Specifications Price Y40110461 2 € 0,83 » 10465B BOLT,HEAD COVER Part Number Qty. Specifications Price Y60110465 1 » 104J5A GASKET Part Number Qty. Specifications Price Y401104J5 1 € 1,69 » 10500 COVER,TIMING CHAIN Part Number Qty. Specifications Price Y60110500 1 € 28,26 » 10510C COVER,TIMING BELT-UPPER Part Number Qty. Specifications Price Y60110510A 1 € 24,27 » 10540 PLATE,SEAL-T.BELT COVER U Part Number Qty. Specifications Price Y60110540 1 » 10910 COVER,END PLATE Part Number Qty. Specifications Price Y60110903 1 - 040110
BK1*** -140892Y60110903B 1 040110 -
BK1***140892-» 90901 NUT Part Number Qty. Specifications Price 9XF20412X1 1
