Mazda MAZDA 3 BK 2003-06 Mazda Inlet Manifold 01/03 (-4701) 02/03 (4701-5301) 03/03 (5301-)

|

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Gasoline-engine 4-cylinder Supplement > Inlet Manifold(gasoline)(1600cc)

Search by part number:

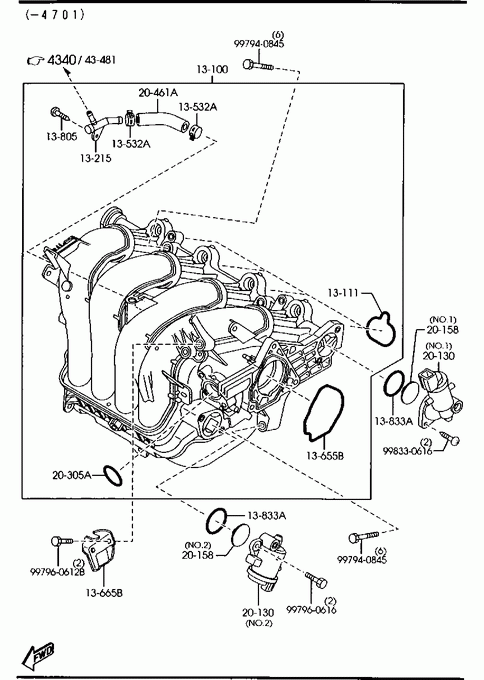

Inlet Manifold(gasoline)(1600cc)

01/03 (-4701)
02/03 (4701-5301)
03/03 (5301-)

MANIFOLD,INLET

Part Number	Qty.	Specifications	Price
Z60113100A	1	AN (Z601-13-100B) - 040701 BK1* -185433**	€ 1091,98
Z62713100	1	050301 - BK1261860-*	€ 709,24
ZY0813100A	1	040701 - 050301 BK1185433-261860*	€ 986,00

GASKET,IN.MANIFOLD

Part Number	Qty.	Specifications	Price
ZJ0113111	4		€ 10,07

PIPE,AIR

Part Number	Qty.	Specifications	Price
ZJ0113191	1		€ 9,77

CLIP,HOSE

Part Number	Qty.	Specifications	Price
ZJ0113532	2

GASKET,THROTTLE BODY

Part Number	Qty.	Specifications	Price
ZJ0113655	1		€ 12,75

BRACKET,ACCEL WIRE

Part Number	Qty.	Specifications	Price
ZJ0113665	1		€ 9,61

SCREW

Part Number	Qty.	Specifications	Price
ZJ0113556	1

GASKET

Part Number	Qty.	Specifications	Price
ZJ0113833	2		€ 11,16

ACTUATOR,SHUTTER VALVE

Part Number	Qty.	Specifications	Price
ZJ0120130B	1	ILLUST. NO.1	€ 266,73
ZY0120130B	1	ILLUST. NO.2	€ 308,20

COVER,SHUTTER VALVE

Part Number	Qty.	Specifications	Price
ZJ0120158	1	ILLUST. NO.1	€ 3,80
ZY0120158	1	ILLUST. NO.2	€ 4,41

GASKET,E.G.R. VALVE

Part Number	Qty.	Specifications	Price
Z60120306	1	- 050301 BK1* -261860**	€ 13,81

TUBE,VACUUM

Part Number	Qty.	Specifications	Price
ZJ0120461	1		€ 13,46

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940845	1		€ 2,42

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960612B	1		€ 0,37

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

SCREW

Part Number	Qty.	Specifications	Price
998330616	1		€ 1,14
