Mazda MAZDA 3 BK 2003-06 Mazda Automatic Transmission Torque Converter, Oil Pump & Pipings 01/03 (1600) 02/03 (1600) 03/03 (2000)

|

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Torque Converter, Oil Pump & Pipings

Search by part number:

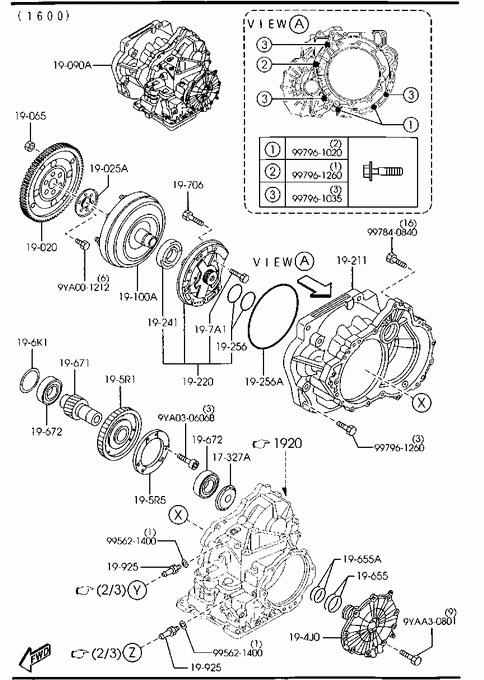

Automatic Transmission Torque Converter, Oil Pump & Pipings

01/03 (1600)
02/03 (1600)
03/03 (2000)

FUNNEL

Part Number	Qty.	Specifications	Price
FN1117327	1		€ 3,26

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FNK119020A	1	2000
FNK519020	1	AN (FNK5-19-020A) 1600 - 041025 BK1* -219640**	€ 88,02
FNK519020A	1	1600 041025 - BK1219640-*	€ 90,88

ADAPTER,DRIVE PLATE

Part Number	Qty.	Specifications	Price
FA0119025	1	SUMINO INDUSTORY 1600	€ 7,41

NUT

Part Number	Qty.	Specifications	Price
FU5119065	4		€ 1,35

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
FNK319090C	1	A (FNK3-19-090D) 2000 - 050221 BK1* -258668**
FNK319090D	1	A (FNK3-19-090E) 2000 050221 - BK1258668-*
FNK619090B	1	A (FNK6-19-090C) 1600 - 031101 BK1* -126712**
FNK619090C	1	A (FNK6-19-090D) 1600 031101 - 050221 BK1126712-258668*
FNK619090D	1	A (FNK6-19-090E) 1600 050221 - BK1258668-*

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
FNK119100	1	AN (FNK1-19-100A) 2000 - 031101 BK1* -126712**
FNK119100A	1	2000 031101 - BK1126712-*
FNK619100B	1	1600

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
FNK119231	1	2000
FNK519231	1	1600	€ 455,41

PUMP,OIL

Part Number	Qty.	Specifications	Price
FN111970XC	1	AN (FN11-19-70XD) - 031101 BK1* -126712**	€ 348,15
FN111970XD	1	031101 - BK1126712-*	€ 362,21

SEAL,OIL

Part Number	Qty.	Specifications	Price
FN1119241	1		€ 8,68

RING,SEAL

Part Number	Qty.	Specifications	Price
FN0119212	2		€ 3,44

RING,SEAL

Part Number	Qty.	Specifications	Price
FN0119242	1		€ 8,36

COVER,END

Part Number	Qty.	Specifications	Price
FN11194J0D	1	PLATED SLEEVE - 050301 BK1* -261860**	€ 172,12
FN21194J0	1	STEEL SLEEVE	€ 179,07

GEAR,SECOND

Part Number	Qty.	Specifications	Price
FN12195R0C	1

RING

Part Number	Qty.	Specifications	Price
FN11195R5C	1

RING,SEAL

Part Number	Qty.	Specifications	Price
FN0119655	2		€ 4,95

RING,SEAL

Part Number	Qty.	Specifications	Price
FN0119212	2	050801 - BK1310728-*	€ 3,44
FN1119762	2	AN (FN01-19-212) - 050801 BK1* -310728**	€ 4,85

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FN7219671A	1	A (FN72-19-671B) 1600 - 050221 BK1* -258668**
FN7219671B	1	1600 050221 - BK1258668-*
FNA619671E	1	A (FNA6-19-671F) 2000 - 050221 BK1* -258668**
FNA619671F	1	2000 050221 - BK1258668-*

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FN11196B0A	2		€ 21,26

SHIM,OUTPUT GEAR

Part Number	Qty.	Specifications	Price
FN11196K1	1	T=0.5MM - 040401 BK1* -160652**	€ 6,81
FN11196K1A	1	T=0.5MM 040401 - BK1160652-*
FN11196K2	1	T=0.55MM - 040401 BK1* -160652**	€ 7,08
FN11196K2A	1	T=0.55MM 040401 - BK1160652-*
FN11196K3	1	T=0.6MM - 040401 BK1* -160652**	€ 7,08
FN11196K3A	1	T=0.6MM 040401 - BK1160652-*
FN11196K4	1	T=0.65MM - 040401 BK1* -160652**	€ 7,08
FN11196K4A	1	T=0.65MM 040401 - BK1160652-*
FN11196K5	1	T=0.7MM - 040401 BK1* -160652**	€ 7,08
FN11196K5A	1	T=0.7MM 040401 - BK1160652-*
FN11196K6	1	T=0.75MM - 040401 BK1* -160652**	€ 7,08
FN11196K6A	1	T=0.75MM 040401 - BK1160652-*
FN11196K7	1	T=0.8MM - 040401 BK1* -160652**	€ 7,08
FN11196K7A	1	T=0.8MM 040401 - BK1160652-*
FN11196K8	1	T=0.85MM - 040401 BK1* -160652**	€ 7,08
FN11196K8A	1	T=0.85MM 040401 - BK1160652-*
FN11196K9	1	T=0.9MM - 040401 BK1* -160652**	€ 6,94
FN11196K9A	1	T=0.9MM 040401 - BK1160652-*
FN11196L1	1	T=0.95MM - 040401 BK1* -160652**	€ 7,08
FN11196L1A	1	T=0.95MM 040401 - BK1160652-*
FN11196L2	1	T=1MM - 040401 BK1* -160652**	€ 7,08
FN11196L2A	1	T=1MM 040401 - BK1160652-*
FN11196L3	1	T=1.05MM - 040401 BK1* -160652**	€ 7,08
FN11196L3A	1	T=1.05MM 040401 - BK1160652-*
FN11196L4	1	T=1.1MM - 040401 BK1* -160652**	€ 7,08
FN11196L4A	1	T=1.1MM 040401 - BK1160652-*
FN11196L5	1	T=1.15MM - 040401 BK1* -160652**	€ 7,08
FN11196L5A	1	T=1.15MM 040401 - BK1160652-*
FN11196L6	1	T=1.2MM - 040401 BK1* -160652**	€ 7,08
FN11196L6A	1	T=1.2MM 040401 - BK1160652-*
FN11196L7	1	T=1.25MM - 040401 BK1* -160652**	€ 6,94
FN11196L7A	1	T=1.25MM 040401 - BK1160652-*
FN11196L8	1	T=1.3MM - 040401 BK1* -160652**	€ 6,94
FN11196L9	1	T=0.45MM 040401 - BK1160652-*

BOLT

Part Number	Qty.	Specifications	Price
FU0119706B	7		€ 0,92

BOLT

Part Number	Qty.	Specifications	Price
FN11197A1	6		€ 0,71

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
FX0119925	2	1600	€ 6,11

BOLT

Part Number	Qty.	Specifications	Price
9YA001212	1		€ 2,90

BOLT

Part Number	Qty.	Specifications	Price
9YA030606B	1

BOLT

Part Number	Qty.	Specifications	Price
9YAA30801	1

GASKET

Part Number	Qty.	Specifications	Price
995621400	1		€ 3,08

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840840	1		€ 2,97

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961020	1		€ 2,43

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961035	1		€ 2,69

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961260	1		€ 2,95
