Mazda MAZDA 3 BK 2003-06 Mazda Valve System

Mazda parts catalog

Parts > MAZDA 3 > 2003-06 > Gasoline-engine 4-cylinder Transmission > Valve System(gasoline)(1300cc & 1600cc)

Search by part number:

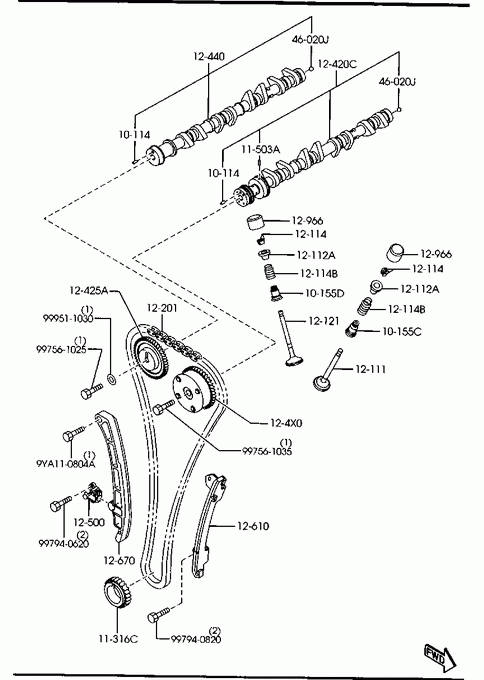

Valve System(gasoline)(1300cc & 1600cc)

PIN,SET-CAMSHAFT

Part Number	Qty.	Specifications	Price
F80110114	2		€ 2,75

» 10155C

SEAL,INLET VALVE

Part Number	Qty.	Specifications	Price
L80710155	8	040316 - BK1156681-*	€ 4,22
LF0110155	8	AN (L807-10-155) - 040316 BK1* -156681**	€ 4,06

» 10155D

SEAL,EXHAUST VALVE

Part Number	Qty.	Specifications	Price
LF01101F5	8		€ 4,85

» 11316C

GEAR,TIMING

Part Number	Qty.	Specifications	Price
ZJ0111316	1		€ 20,20

» 11503A

PIN,KNOCK

Part Number	Qty.	Specifications	Price
J50111219	1		€ 1,42

» 12111

VALVE,INLET

Part Number	Qty.	Specifications	Price
ZJ0112111A	8	1300	€ 14,54
ZY0112111A	8	1600	€ 10,86

» 12112A

SEAT,VALVE SPG-UP.

Part Number	Qty.	Specifications	Price
LF0112113	16		€ 2,59

» 12114

COTTER,VALVE

Part Number	Qty.	Specifications	Price
LF0112114	32	AN (LF02-12-114)	€ 1,13

» 12114B

SPRING,VALVE

Part Number	Qty.	Specifications	Price
ZJ0112125	16

» 12121

VALVE,EXHAUST

Part Number	Qty.	Specifications	Price
ZJ0112121	8	1300 - 041001 BK1* -211472**	€ 15,96
ZJ0112121A	8	AN (ZJ01-12-121B) 1300 041001 - 050301 BK1211472-261860*	€ 15,15
ZJ0112121B	8	1300 050301 - BK1261860-*	€ 15,12
ZY0112121	8	1600 - 041001 BK1* -211472**	€ 15,96
ZY0112121A	8	AN (ZY01-12-121B) 1600 041001 - 050301 BK1211472-261860*	€ 12,94
ZY0112121B	8	1600 050301 - BK1261860-*	€ 15,12

» 12201

CHAIN,TIMING

Part Number	Qty.	Specifications	Price
ZJ0112201	1		€ 43,74

» 12420C

CAMSHAFT,INTAKE

Part Number	Qty.	Specifications	Price
ZJ0112420A	1	AN (ZJ01-12-420B) 1300 - 031101 BK1* -126712**
ZJ0112420B	1	1300 031101 - BK1126712-*
ZY0112420A	1	AN (ZY01-12-420B) 1600 - 031101 BK1* -126712**	€ 176,12
ZY0112420B	1	1600 031101 - BK1126712-*	€ 179,64

» 12425A

PULLEY,CAMSHAFT

Part Number	Qty.	Specifications	Price
ZJ0112425	1		€ 38,67

» 12440

CAMSHAFT,EXHAUST

Part Number	Qty.	Specifications	Price
ZJ0112440A	1	AN (ZJ01-12-440B) 1300 - 031101 BK1* -126712**
ZJ0112440B	1	1300 031101 - BK1126712-*
ZY0112440A	1	AN (ZY01-12-440B) 1600 - 031101 BK1* -126712**	€ 176,12
ZY0112440B	1	1600 031101 - BK1126712-*	€ 179,64

» 124X0

ACTR,VARIABLE V. TIMING

Part Number	Qty.	Specifications	Price
ZJ01124X0	1	AN (ZJ01-12-4X0A)	€ 271,52

» 12500

ADJUSTER,CHAIN

Part Number	Qty.	Specifications	Price
ZJ0112500B	1		€ 50,64

» 12610

GUIDE,CHAIN

Part Number	Qty.	Specifications	Price
ZJ0112610	1		€ 22,40

» 12670

LEVER,CHAIN

Part Number	Qty.	Specifications	Price
ZY0812670	1	- 050201 BK1* -251553**	€ 28,55
ZY0812670A	1	050201 - BK1251553-*	€ 20,53

» 12966

DISC,ADJUSTING

Part Number	Qty.	Specifications	Price
ZJ0212546	16	T=2.980MM	€ 6,46
ZJ0212547	16	T=2.995MM	€ 6,46
ZJ0212548	16	T=3.010MM	€ 6,46
ZJ0212549	16	T=3.025MM	€ 9,18
ZJ0212551	16	T=3.040MM	€ 6,46
ZJ0212552	16	T=3.055MM	€ 9,18
ZJ0212553	16	T=3.070MM	€ 6,46
ZJ0212554	16	T=3.085MM	€ 9,18
ZJ0212555	16	T=3.100MM	€ 6,46
ZJ0212556	16	T=3.115MM	€ 9,18
ZJ0212557	16	T=3.130MM	€ 9,18
ZJ0212558	16	T=3.145MM	€ 9,18
ZJ0212559	16	T=3.160MM	€ 9,18
ZJ0212561	16	T=3.175MM	€ 9,18
ZJ0212562	16	T=3.190MM	€ 9,18
ZJ0212563	16	T=3.205MM	€ 6,46
ZJ0212564	16	T=3.220MM	€ 9,18
ZJ0212565	16	T=3.235MM	€ 9,18
ZJ0212566	16	T=3.250MM	€ 9,18
ZJ0212567	16	T=3.265MM	€ 9,18
ZJ0212568	16	T=3.280MM	€ 9,18
ZJ0212569	16	T=3.295MM	€ 9,18
ZJ0212571	16	T=3.310MM	€ 9,18
ZJ0212572	16	T=3.325MM	€ 9,18
ZJ0212573	16	T=3.340MM	€ 9,18
ZJ0212574	16	T=3.355MM	€ 9,18
ZJ0212575	16	T=3.370MM	€ 9,18
ZJY112541	16	T=2.855MM	€ 21,44
ZJY112542	16	T=2.880MM	€ 21,44
ZJY112543	16	T=2.905MM	€ 21,44
ZJY112544	16	T=2.930MM	€ 21,44
ZJY112545	16	T=2.955MM	€ 11,93
ZJY112576	16	T=3.395MM
ZJY112577	16	T=3.420MM	€ 21,99
ZJY112578	16	T=3.445MM	€ 21,99
ZJY112579	16	T=3.470MM	€ 21,99
ZJY112581	16	T=3.495MM	€ 21,99

» 46020J

BALL,STEEL

Part Number	Qty.	Specifications	Price
996113000	2		€ 1,57

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997561035	1		€ 2,78

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999511030	1		€ 0,51

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9YA110804A	1		€ 7,01

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997561025	1		€ 2,51

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940620	1		€ 3,14

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

Valve System(gasoline)(1300cc & 1600cc)
