Mazda MAZDA 2 DE 2007-06 Mazda Automatic Transmission Torque Converter, Oil Pump & Pipings 01/02 02/02

Mazda parts catalog

Parts > MAZDA 2 > 2007-06 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Torque Converter, Oil Pump & Pipings

Search by part number:

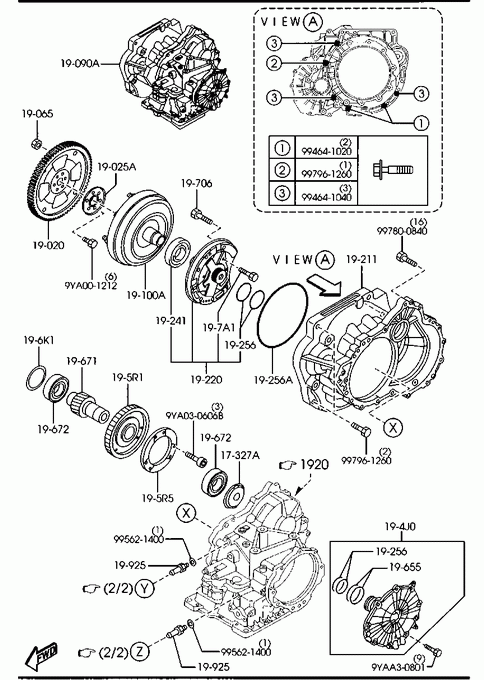

Automatic Transmission Torque Converter, Oil Pump & Pipings

01/02
02/02

FUNNEL

Part Number	Qty.	Specifications	Price
FN1117327	1		€ 3,26

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FN1119020	1	TESMA INTERNATIONAL	€ 227,73

» 19025A

ADAPTER,DRIVE PLATE

Part Number	Qty.	Specifications	Price
FA0119025	1	SUMINO INDUSTORY	€ 7,41

» 19065

NUT

Part Number	Qty.	Specifications	Price
FU5119065	4		€ 1,35

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
FNM119090	1	AN (FNM1-19-090A) - 080101
FNM119090B	1	A (FNM1-19-090C) 080101 -

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
FN1119100D	1

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
FNF219231A	1	AN (FNF2-19-231B) - 080101
FNF219231B	1	080101 -

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
FN111970XD	1	A (FN11-19-70XE)	€ 362,21

» 19241

SEAL,OIL

Part Number	Qty.	Specifications	Price
FN1119241	1		€ 8,68

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
FN0119212	4		€ 3,44

» 19256A

RING,SEAL

Part Number	Qty.	Specifications	Price
FN0119242	1		€ 8,36

» 194J0

COVER,END

Part Number	Qty.	Specifications	Price
FN21194JX	1	STEEL SLEEVE

» 195R1

GEAR,SECOND

Part Number	Qty.	Specifications	Price
FN12195R0C	1

» 195R5

RING

Part Number	Qty.	Specifications	Price
FN11195R5C	1

» 19655

RING,SEAL

Part Number	Qty.	Specifications	Price
FN0119655	2		€ 4,95

» 19671

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FNA619671F	1

» 19672

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FN11196B0A	2		€ 21,26

» 196K1

SHIM,OUTPUT GEAR

Part Number	Qty.	Specifications	Price
FN11196K1A	1	T=0.5MM
FN11196K2A	1	T=0.55MM
FN11196K3A	1	T=0.6MM
FN11196K4A	1	T=0.65MM
FN11196K5A	1	T=0.7MM
FN11196K6A	1	T=0.75MM
FN11196K7A	1	T=0.8MM
FN11196K8A	1	T=0.85MM
FN11196K9A	1	T=0.9MM
FN11196L1A	1	T=0.95MM
FN11196L2A	1	T=1MM
FN11196L3A	1	T=1.05MM
FN11196L4A	1	T=1.1MM
FN11196L5A	1	T=1.15MM
FN11196L6A	1	T=1.2MM
FN11196L7A	1	T=1.25MM
FN11196L9A	1	T=0.45MM

» 19706

BOLT

Part Number	Qty.	Specifications	Price
FU0119706B	7		€ 0,92

» 197A1

BOLT

Part Number	Qty.	Specifications	Price
FN11197A1	6		€ 0,71

» 19925

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
FX0119925	2		€ 6,11

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA001212	1		€ 2,90

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA030606B	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YAA30801	1

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621400	1		€ 3,08

» 99601

BOLT

Part Number	Qty.	Specifications	Price
994641020	1

» 99601

BOLT

Part Number	Qty.	Specifications	Price
994641040	1

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997800840	1		€ 1,66

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961260	1		€ 2,95
