Parts > Mazda E2000 > 1997-03 > Chassis Piping & Fuel Tank > Main Frame & Under Cover(pickup)

Search by part number:

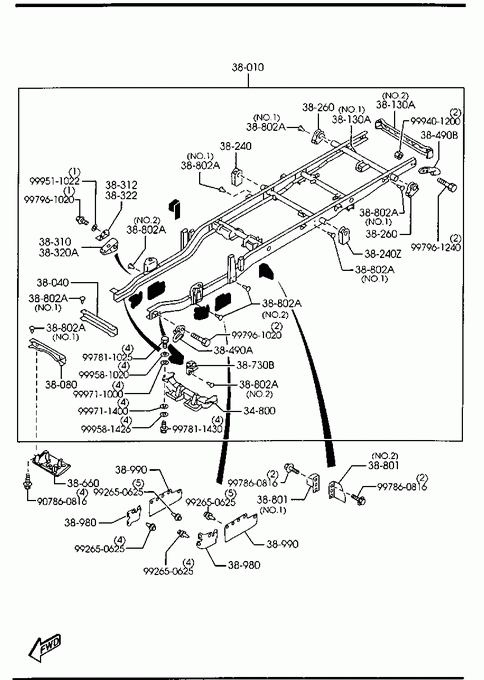

Main Frame & Under Cover(pickup)

MEMBER,CROSS

Part Number	Qty.	Specifications	Price
SG5134800B	1	AN (SG51-34-800C) - 990422 *SY03 -115234*
SG5134800C	1	990422 - *SY03115234-*

» 38010

FRAME,MAIN

Part Number	Qty.	Specifications	Price
SG5138010D	1	AN (SG51-38-010E) - 990422 *SY03 -115234*
SG5138010E	1	AN (SG51-38-010F) 990422 - 990601 *SY03115234-115727*
SG5138010F	1	990601 - *SY03115727-*

» 38040

MEMBER NO.1,CROSS

Part Number	Qty.	Specifications	Price
S30A38040A	1

» 38080

MEMBER,CROSS

Part Number	Qty.	Specifications	Price
S11338080B	1

» 38130A

MEMBER,CROSS-R.

Part Number	Qty.	Specifications	Price
S15338890	1	ILLUST. NO.1
S15338940A	1	AN (S153-38-940B) ILLUST. NO.2 - 990601 *SY03 -115727*
S15338940B	1	ILLUST. NO.2 990601 - *SY03115727-*

» 38240

HANGER(R),RR SPRING-FRT

Part Number	Qty.	Specifications	Price
S15338241	1

» 38240Z

HANGER(L),RR SPRING-FRT

Part Number	Qty.	Specifications	Price
S15338251	1

» 38260

HANGER,RR SPRING-RR

Part Number	Qty.	Specifications	Price
S15238260	2

» 38310

BRACKET(R),ROD

Part Number	Qty.	Specifications	Price
S11338310E	1

» 38312

STIFFENER(R)

Part Number	Qty.	Specifications	Price
S11338312	1

» 38320A

BRACKET(L),ROD

Part Number	Qty.	Specifications	Price
S11338320E	1

» 38322

STIFFENER(L)

Part Number	Qty.	Specifications	Price
S11338322	1

» 38490A

HOOK,ROPE-FRONT

Part Number	Qty.	Specifications	Price
SA4638480	1

» 38490B

HOOK,ROPE-REAR

Part Number	Qty.	Specifications	Price
S11438483	1

» 38660

DUCT,AIR

Part Number	Qty.	Specifications	Price
S11338660	1

» 38730B

BRACKET,MOUNT

Part Number	Qty.	Specifications	Price
S11338730C	2

» 38801

PROTECTOR

Part Number	Qty.	Specifications	Price
S11338961A	1	ILLUST. NO.1
S11338971A	1	ILLUST. NO.2

» 38802A

RIVET

Part Number	Qty.	Specifications	Price
S11338142A	48	ILLUST. NO.1
S11338802A	40	ILLUST. NO.2

» 38980

PLATE,SEAL

Part Number	Qty.	Specifications	Price
S11338981A	2

» 38990

PLATE,SEAL

Part Number	Qty.	Specifications	Price
S11338991A	2

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997811025	1		€ 1,33

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997811430	1		€ 1,85

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860816	1		€ 2,06

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401200	1		€ 2,78

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860816	1		€ 1,73

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999511022	1		€ 0,63

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999581020	1		€ 2,06

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999581426	1		€ 2,88

» 99263

RIVET

Part Number	Qty.	Specifications	Price
992650625	1		€ 2,58

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961020	1		€ 2,43

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961240	1

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711000	1		€ 0,51

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711400	1		€ 0,40
