Mazda E2000 SD,SR 1988-02 Mazda Rear Doors

Mazda parts catalog

Parts > Mazda E2000 > 1988-02 > Body Exterior Trim > Rear Doors(van)

Search by part number:

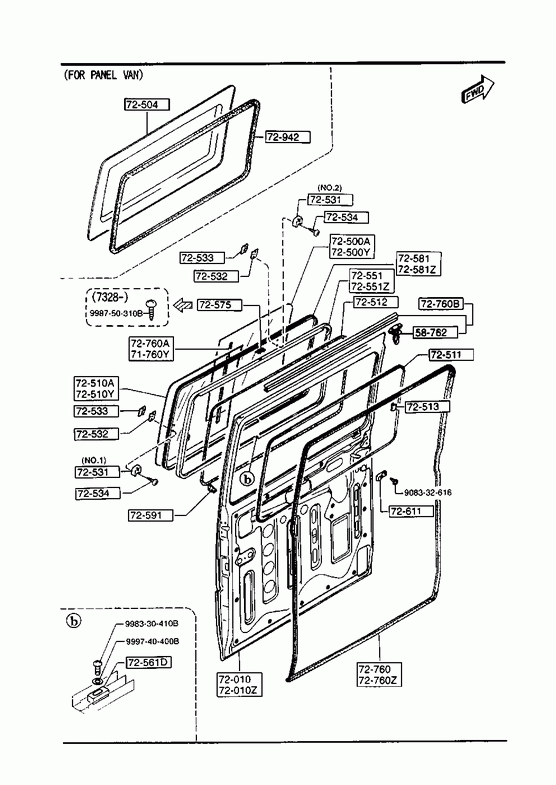

Rear Doors(van)

FASTENER

Part Number	Qty.	Specifications	Price
G03058762	24	- 880701 SR** -603978 SR*2 -603115	€ 1,16
G03158762	24	880701 - SR**603978- SR*2603115-	€ 1,18

» 72010

BODY(R),REAR DOOR

Part Number	Qty.	Specifications	Price
SA6972020E	1	C (SA69-72-020F) - 900625 SR** -615041 SR*2 -612197	€ 468,98
SA6972020F	1	A (SA69-72-020G) 900625 - 910510 SR**615041-618848 SR*2612197-614449	€ 468,98
SA6972020G	1	A (SA69-72-020H) 910510 - 920401 SR**618848-622838 SR*2614449-617396	€ 468,98
SA6972020H	1	A (SA69-72-020J) 920401 - 920601 SR**622838-623502 SR*2617396-617895	€ 468,98
SA6972020K	1	A (SA69-72-020L) 920601 - SR**623502- SR*2617895-	€ 468,98

» 72010Z

BODY(L),REAR DOOR

Part Number	Qty.	Specifications	Price
SA5973020D	1	AN (SA59-73-020E) - 900625 SR** -615041 SR*2 -612197	€ 468,98
SA5973020E	1	A (SA59-73-020F) 900625 - 910510 SR**615041-618848 SR*2612197-614449	€ 468,98
SA5973020F	1	A (SA59-73-020G) 910510 - 920401 SR**618848-622838 SR*2614449-617396	€ 468,98
SA5973020G	1	A (SA59-73-020H) 920401 - 920601 SR**622838-623502 SR*2617396-617895
SA5973020J	1	A (SA59-73-020K) 920601 - SR**623502- SR*2617895-	€ 468,98

» 72500A

GLASS(FRT.,R),SLIDE

Part Number	Qty.	Specifications	Price
S08472501C	1	CLEAR,SLIDE TYPE
S09272501C	1	BLUE,SLD TYPE T=3.5	€ 62,64
SC7672501	1	FROSTED G.,FOR SLIDE 941101 - SR644097-

» 72500Y

GLASS(FRT.,L),SLIDE.

Part Number	Qty.	Specifications	Price
S08473501C	1	CLEAR,SLIDE T. T=3.5
S09273501C	1	BLUE,SLD TYPE T=3.5	€ 62,64
SC7673501	1	FROSTED G.,FOR SLIDE 941101 - SR644097-

» 72504

PANEL,SIDE WINDOW

Part Number	Qty.	Specifications	Price
S08972504	2	FOR PANEL VAN - 880301 SR** -601725 SR*2 -601343	€ 139,00
S08972504A	2	FOR PANEL VAN 880301 - 961201 SR**601725-651847 SR*2601343-632253	€ 139,00
S08972504B	2	FOR PANEL VAN 961201 - SR**651847- SR*2632253-	€ 139,00

» 72510A

GLASS(RR.,R),SLIDE

Part Number	Qty.	Specifications	Price
S08472502D	1	CLEAR,FOR SLIDE TYPE CLEAR,BOTH SIDE SLIDE
S08672502D	2	CLEAR,FOR FIXED TYPE CLEAR,ONE SIDE SLIDE	€ 53,77
S09272502D	1	BLUE,BOTH SIDE SLIDE	€ 64,10
SA7772502B	2	BLUE,FIXED TYPE	€ 60,99
SC7672502	1	FROSTED G.,FOR SLIDE 941101 - SR644097-

» 72510Y

GLASS(RR.,L),SLIDE

Part Number	Qty.	Specifications	Price
S08473502D	1	CLEAR,FOR SLIDE TYPE CLEAR,BOTH SIDE SLIDE
S09273502D	1	BLUE,BOTH SIDE SLIDE	€ 64,10
SC7673502	1	FROSTED G.,FOR SLIDE 941101 - SR644097-

» 72511

WELT,SEAMING

Part Number	Qty.	Specifications	Price
S08472511C	2	BOTH SLID TYPE BOTH SIDE SLIDE - 970201 SR** -652599 SR*2 -632714	€ 43,19
S08472511F	2	AN (S084-72-511G) BOTH SIDE SLIDE 970201 - SR**652599- SR*2632714-	€ 43,19
S08672511D	2	A (S086-72-511E) ONE SIDE SLIDE - 970201 SR** -652599 SR*2 -632714	€ 43,19
S08672511G	2	AN (S086-72-511H) ONE SIDE SLIDE 970201 - SR**652599- SR*2632714-	€ 43,19

» 72512

TAPE,SEAL

Part Number	Qty.	Specifications	Price
S08472512A	2	AN (S084-72-512B) - 880501 SR** -603109 SR*2 -602247	€ 12,77
S08472512B	2	FOR SLIDE TYPE 880501 - SR**603109- SR*2602247-	€ 13,42

» 72513

PROTECTOR,SEAM. WELT

Part Number	Qty.	Specifications	Price
S08472513A	2	BOTH SIDE SLIDE WIND BOTH SIDE SLIDE	€ 3,88

» 72531

LOCK,SLIDE GLASS

Part Number	Qty.	Specifications	Price
S08472531B	1	ILLUST. NO.2 FOR LEFT SIDE BOTH SIDE SLIDE	€ 20,21
S08473531B	1	ILLUST. NO.2 FOR RIGHT SIDE BOTH SIDE SLIDE	€ 20,21

» 72532

SHEET,RUBBER

Part Number	Qty.	Specifications	Price
S08472532	4		€ 1,80

» 72533

NUT,LOCK HOLDER

Part Number	Qty.	Specifications	Price
S08472533	4	SLIDE TYPE	€ 4,06

» 72534

SCREW,GLASS LOCK

Part Number	Qty.	Specifications	Price
S08472534	8	SLIDE TYPE	€ 0,93

» 72551

SASH(R),SLIDE GLASS

Part Number	Qty.	Specifications	Price
S08472551D	1	BOTH SIDE SLIDE BOTH SIDE SLIDE - 970328 SR** -653247 SR*2 -633292	€ 111,34
S08472551F	1	BOTH SIDE SLIDE BOTH SIDE SLIDE 970328 - SR**653247- SR*2633292-
S08672551D	1	ONE SIDE SLIDE ONE SIDE SLIDE - 970328 SR** -653247 SR*2 -633292	€ 112,40
S08672551F	1	ONE SIDE SLIDE ONE SIDE SLIDE 970328 - SR**653247- SR*2633292-	€ 112,40

» 72551Z

SASH(L),SLIDE GLASS

Part Number	Qty.	Specifications	Price
S08473551D	1	BOTH SIDE SLIDE BOTH SIDE SLIDE - 970328 SR** -653247 SR*2 -633292	€ 110,26
S08473551F	1	BOTH SIDE SLIDE BOTH SIDE SLIDE 970328 - SR**653247- SR*2633292-
S08673551D	1	ONE SIDE SLIDE ONE SIDE SLIDE - 970328 SR** -653247 SR*2 -633292	€ 112,47
S08673551F	1	ONE SIDE SLIDE ONE SIDE SLIDE 970328 - SR**653247- SR*2633292-	€ 112,47

» 72561D

STOPPER'A',GLASS

Part Number	Qty.	Specifications	Price
S08672561A	2	FOR SLIDE T.WIND SLIDE TYPE	€ 1,70

» 72575

CAP,SLIDE GLASS

Part Number	Qty.	Specifications	Price
S08472575A	2	FOR SLIDE T.WIND SLIDE TYPE - 970328 SR** -653247 SR*2 -633292	€ 2,63

» 72581

RUN CHANNEL(R),GLASS

Part Number	Qty.	Specifications	Price
S08472581C	1	AN (S084-72-581D) BOTH SIDE SLIDE - 970328 SR** -653247 SR*2 -633292	€ 66,35
S08472581E	1	AN (S084-72-581F) BOTH SIDE SLIDE 970328 - SR**653247- SR*2633292-	€ 66,35
S08672581A	1	AN (S086-72-581B) ONE SIDE SLIDE - 970328 SR** -653247 SR*2 -633292	€ 66,35
S08672581C	1	AN (S086-72-581D) ONE SIDE SLIDE 970328 - SR**653247- SR*2633292-	€ 66,35

» 72581Z

RUN CHANNEL(L),GLASS

Part Number	Qty.	Specifications	Price
S08473581C	1	AN (S084-73-581D) BOTH SIDE SLIDE - 970328 SR** -653247 SR*2 -633292	€ 68,43
S08473581E	1	AN (S084-73-581F) BOTH SIDE SLIDE 970328 - SR**653247- SR*2633292-	€ 68,43
S08673581A	1	AN (S086-73-581B) ONE SIDE SLIDE - 970328 SR** -653247 SR*2 -633292	€ 68,43
S08673581C	1	AN (S086-73-581D) ONE SIDE SLIDE 970328 - SR**653247- SR*2633292-	€ 68,43

» 72591

SPACER,SLIDE GLASS

Part Number	Qty.	Specifications	Price
S08472591B	18	FOR SLIDE T.WIND SLIDE TYPE	€ 1,62

» 72611

STOPPER,DOOR

Part Number	Qty.	Specifications	Price
S08472611A	2

» 72760

WEATHERSTRIP(R)

Part Number	Qty.	Specifications	Price
S08472761C	1	AN (S084-72-761D)	€ 79,75

» 72760A

WEATHERSTRIP(R)

Part Number	Qty.	Specifications	Price
S08472572B	1	FOR SLIDE TYPE - 970328 SR** -653247 SR*2 -633292	€ 35,61
SG41725S2A	1	FOR SLIDE TYPE 970328 - SR**653247- SR*2633292-	€ 65,63

» 72760B

WEATHERSTRIP

Part Number	Qty.	Specifications	Price
S08472770	2	AN (S084-72-770A) - 950501 SR** -645824 SR*2 -628079	€ 18,01
S08472770A	2	AN (S084-72-770B) 950501 - SR**645824- SR*2628079-	€ 18,01

» 72760Y

WEATHERSTRIP(L)

Part Number	Qty.	Specifications	Price
S08472572B	1	FOR SLIDE TYPE - 970328 SR** -653247 SR*2 -633292	€ 35,61
SG41725S2A	1	FOR SLIDE TYPE 970328 - SR**653247- SR*2633292-	€ 65,63

» 72760Z

WEATHERSTRIP(L)

Part Number	Qty.	Specifications	Price
S08473761B	1	AN (S084-73-761C)	€ 86,79

» 72942

WEATHERSTRIP,SLIDE

Part Number	Qty.	Specifications	Price
S10972942B	2	FOR PANEL VAN	€ 82,89

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330410B	1		€ 0,38

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
908332616	1		€ 0,60

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998750310B	1		€ 0,51

» 99211

WASHER,TOOTHED

Part Number	Qty.	Specifications	Price
999740400B	1		€ 0,52

Rear Doors(van)
