Mazda E2000 SD,SR 1988-02 Mazda Lift Gate Mechanisms

Mazda parts catalog

Parts > Mazda E2000 > 1988-02 > Body Exterior Trim > Lift Gate Mechanisms(van)

Search by part number:

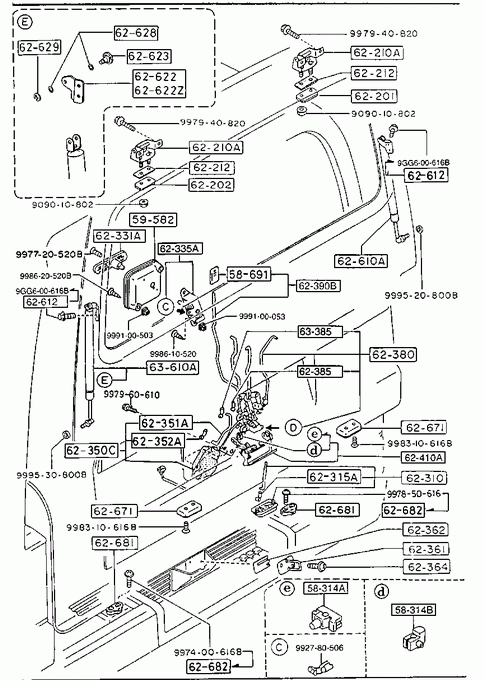

Lift Gate Mechanisms(van)

JOINT

Part Number	Qty.	Specifications	Price
B45558411	1	920101 - SR**621689- SR*2616442-	€ 3,51

» 58314B

JOINT

Part Number	Qty.	Specifications	Price
H04372411	1	- 920101 SR** -621689 SR*2 -616442	€ 4,39

» 58691

KNOB,DOOR LOCK

Part Number	Qty.	Specifications	Price
B00158316	1

» 59582

COVER,HANDLE

Part Number	Qty.	Specifications	Price
S08462332C	1

» 62201

SHIM'A',HINGE

Part Number	Qty.	Specifications	Price
S08462201	2	T=1.0MM	€ 2,62

» 62202

SHIM'B',HINGE

Part Number	Qty.	Specifications	Price
S08462203	2	T=0.5MM	€ 2,96
S08462204	2	T=1.4MM	€ 2,40

» 62210A

HINGE,LIFT GATE

Part Number	Qty.	Specifications	Price
S08462210A	2	AN (S084-62-210B)	€ 25,64

» 62212

GASKET,HINGE-LIFT GATE

Part Number	Qty.	Specifications	Price
S08462212	2		€ 0,94

» 62310

LOCK,LIFT GATE

Part Number	Qty.	Specifications	Price
S08462310B	1	AN (S084-62-310C) - 891201 SR** -613060 SR*2 -610886
S08462310C	1	891201 - SR**613060- SR*2610886-	€ 43,45

» 62315A

CLIP,LOCK-LIFT GATE

Part Number	Qty.	Specifications	Price
S08462315	1		€ 1,67

» 62331A

HANDLE,INNER-LIFT GATE

Part Number	Qty.	Specifications	Price
S08462331B	1

» 62335A

GUIDE,,HANDLE SHAFT

Part Number	Qty.	Specifications	Price
S08462335	1	AN (S084-62-335A)	€ 19,13

» 62350C

ACTUATOR,POWER LOCK

Part Number	Qty.	Specifications	Price
S09262350A	1	A (S092-62-350B) W/POWER DR LOCK - 890801 SR** -612256 SR*2 -610196	€ 69,54
S09262350B	1	W/POWER DR LOCK 890801 - SR**612256- SR*2610196-	€ 110,19

» 62351A

CLIP,ROD-ACTUATOR

Part Number	Qty.	Specifications	Price
S09262351	1	W/POWER DR LOCK 890801 - SR**612256- SR*2610196-	€ 1,67

» 62352A

ROD,ACTUATOR-POWER LOCK

Part Number	Qty.	Specifications	Price
S09262352	1	W/POWER DR LOCK 890801 - SR**612256- SR*2610196-	€ 3,26

» 62361

STRIKER,LOCK

Part Number	Qty.	Specifications	Price
S08462361B	1		€ 12,45

» 62362

SHIM,STRIKER

Part Number	Qty.	Specifications	Price
S08462362	1	T=1MM	€ 2,62
S08462363	1	T=2MM	€ 2,56

» 62364

SCREW,STRIKER

Part Number	Qty.	Specifications	Price
S08462364	2		€ 0,80

» 62380

CONTROLLER,REMOTE

Part Number	Qty.	Specifications	Price
S08462380B	1		€ 30,10

» 62385

CLIP(R),REMOTE CONTROLLER

Part Number	Qty.	Specifications	Price
S08462385	2		€ 0,98

» 62390B

KNOB,LOCK-LIFT GATE

Part Number	Qty.	Specifications	Price
S08462390A	1

» 62410A

HANDLE,OUTER

Part Number	Qty.	Specifications	Price
S08462410A	1	A (S084-62-410B) - 890701 SR** -611953 SR*2 -609908	€ 43,13
S08462410B	1	AN (S084-62-410C) 890701 - 920101 SR**611953-621689 SR*2609908-616442	€ 43,13
S08462410C	1	920101 - SR**621689- SR*2616442-	€ 44,87

» 62610A

STAY(R),DAMPER

Part Number	Qty.	Specifications	Price
8BSC62620	1	W/O RR WIPER 901101 - 910901 SR**616690-620369 SR*2612930-615302
8BSD62620	1	W/RR WIPER 901101 - 910901 SR**616690-620369 SR*2612930-615302
SA6962620C	1	A (SA69-62-620D) W/O RR WIPER 910901 - SR**620369- SR*2615302-
SA6989621	1	A (8BSC-62-620) W/O RR WIPER - 901101 SR** -616690 SR*2 -612930	€ 99,61
SA9462620C	1	W/RR WIPER 910901 - SR**620369- SR*2615302-
SA9489621	1	A (8BSD-62-620) W/RR WIPER - 901101 SR** -616690 SR*2 -612930	€ 99,61

» 62612

SCREW,STAY DAMPER

Part Number	Qty.	Specifications	Price
G04362612	4	- 900601 SR** -614579 SR*2 -612058	€ 1,20

» 62622

BRACKET(R),DAMPER STAY

Part Number	Qty.	Specifications	Price
S08462622	1	901101 - SR**616690- SR*2612930-	€ 7,22

» 62622Z

BRACKET(L),DAMPER STAY

Part Number	Qty.	Specifications	Price
S08463622	1	901101 - SR**616690- SR*2612930-	€ 7,01

» 62623

PIN,DAMPER STAY

Part Number	Qty.	Specifications	Price
S08462623	2	901101 - SR**616690- SR*2612930-	€ 19,15

» 62628

WASHER,WAVE-DAMPER STAY

Part Number	Qty.	Specifications	Price
S08462628	4	901101 - SR**616690- SR*2612930-	€ 1,44

» 62629

RING,RETAINING-DAMPER

Part Number	Qty.	Specifications	Price
S08462629	2	901101 - SR**616690- SR*2612930-	€ 1,32

» 62671

DOVETAIL,LIFT GATE

Part Number	Qty.	Specifications	Price
S08462671	2	AN (S084-62-671A) - 970401 SR** -653253 SR*2 -633324	€ 4,06
S08462671A	2	970401 - SR**653253- SR*2633324-	€ 4,22

» 62681

WEDGE,LIFTGATE

Part Number	Qty.	Specifications	Price
S08462681B	2		€ 3,98

» 62682

SCREW,WEDGE-LIFT GATE

Part Number	Qty.	Specifications	Price
B21662682	4	880501 - SR**603109- SR*2602247-	€ 1,21

» 63385

CLIP(L),REMOTE CONTROLLER

Part Number	Qty.	Specifications	Price
S08463385	1		€ 0,96

» 63610A

STAY(L),DAMPER

Part Number	Qty.	Specifications	Price
8BSC63620	1	W/O RR WIPER 901101 - 910901 SR**616690-620369 SR*2612930-615302
8BSD63620	1	W/RR WIPER 901101 - 910901 SR**616690-620369 SR*2612930-615302
SA6963620C	1	A (SA69-63-620D) W/O RR WIPER 910901 - SR**620369- SR*2615302-
SA6989631	1	A (8BSC-63-620) W/O RR WIPER - 901101 SR** -616690 SR*2 -612930	€ 99,61
SA9463620C	1	W/RR WIPER 910901 - SR**620369- SR*2615302-
SA9489631	1	A (8BSD-63-620) W/RR WIPER - 901101 SR** -616690 SR*2 -612930	€ 99,61

» 90720

SCREW

Part Number	Qty.	Specifications	Price
997400616B	1		€ 0,42

» 90720

SCREW

Part Number	Qty.	Specifications	Price
997720520B	1		€ 2,09

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998310616B	1		€ 0,43

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909010802	1		€ 2,18

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997850616	1		€ 0,79

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998610520	1		€ 0,29

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998620520B	1		€ 0,56

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9GG600616B	1		€ 0,81

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999520800B	1		€ 0,49

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999530800B	1

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992780506	1		€ 2,26

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100503	1		€ 1,15

Lift Gate Mechanisms(van)
