Mazda E2000 SD,SR 1999-08 Mazda Box 01/02 02/02

Mazda parts catalog

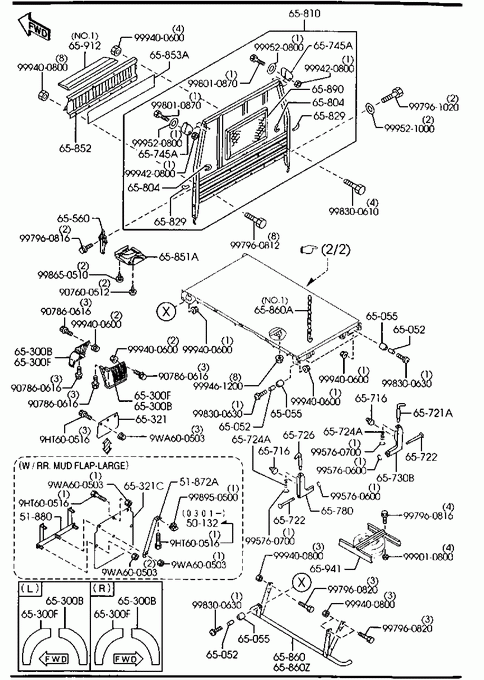

Parts > Mazda E2000 > 1999-08 > Body Exterior Trim > Box(truck)(low Deck)

Search by part number:

Box(truck)(low Deck)

01/02
02/02

BOLT,FLAP

Part Number	Qty.	Specifications	Price
W20150132A	2	W/RR. MUD FLAP-LARGE 000301 - SD1C2100265- SD132101513-

» 51872A

BRACKET,REAR FLAP

Part Number	Qty.	Specifications	Price
SA4751875	2	FOR LARGE FLAP W/RR. MUD FLAP-LARGE

» 51880

BRACKET,REAR FLAP

Part Number	Qty.	Specifications	Price
SA4751890	2	FOR LARGE FLAP W/RR. MUD FLAP-LARGE

» 65052

SPACER

Part Number	Qty.	Specifications	Price
072765052A	6

» 65055

RUBBER,STOP

Part Number	Qty.	Specifications	Price
055965055A	6		€ 4,77

» 65300B

GUARD,MUD

Part Number	Qty.	Specifications	Price
S11365301B	2

» 65300F

GUARD,MUD

Part Number	Qty.	Specifications	Price
S11365311B	2

» 65321

FLAP,REAR

Part Number	Qty.	Specifications	Price
S11451871A	2	W/RR. MUD FLAP-STD

» 65321C

FLAP,REAR

Part Number	Qty.	Specifications	Price
SA4751881A	2	W/RR. MUD FLAP-LARGE	€ 21,75

» 65560

SHUTTER

Part Number	Qty.	Specifications	Price
S11365560	2	AN (S113-65-560A) - 060411 *SD132 -106780**	€ 21,78
S11365560A	2	060411 - *SD132106780-**

» 65716

RUBBER,STOP-HINGE

Part Number	Qty.	Specifications	Price
W04765716	2

» 65721A

PIN(R),LOCK

Part Number	Qty.	Specifications	Price
S47P65721B	1	A (S47P-65-721C) - 020522 *SD132 -105706**
S47P65721C	1	A (S47P-65-721D) 020522 - 060201 *SD132105706-106758**
S47P65721D	1	060201 - *SD132106758-**

» 65722

PIN,HINGE

Part Number	Qty.	Specifications	Price
S11365722	2		€ 3,95

» 65724A

SPRING,CHECH HINGE

Part Number	Qty.	Specifications	Price
S47P65724A	2

» 65726

PIN(L),LOCK

Part Number	Qty.	Specifications	Price
S47P65726B	1	AN (S47P-65-726C) - 020520 *SD132 -105705**
S47P65726C	1	A (S47P-65-726D) 020520 - 060201 *SD132105705-106758**
S47P65726D	1	060201 - *SD132106758-**

» 65730B

PANEL(R),SUPPORT

Part Number	Qty.	Specifications	Price
S47P6573XA	1

» 65745A

STOPPER

Part Number	Qty.	Specifications	Price
S47P65821A	2

» 65780

PANEL(L),SUPORT

Part Number	Qty.	Specifications	Price
S47P6573YA	1

» 65804

HOOK,ROPE

Part Number	Qty.	Specifications	Price
W20165804A	2	- 030515 *SD132 -105804**
W61165106	2	030515 - *SD132105804-**

» 65810

REST,LOAD

Part Number	Qty.	Specifications	Price
S49R65800F	1	W/O WIRE NET
SH6365800E	1	W/WIRE NET

» 65829

HOOK,SHUTTER LEVER

Part Number	Qty.	Specifications	Price
093365829	2

» 65851A

INSULATOR,BOX

Part Number	Qty.	Specifications	Price
S11365851A	1

» 65852

INSULATOR

Part Number	Qty.	Specifications	Price
S11365852E	1	- 000601 SD1C2 -100456 SD132 -102173
S11365852F	1	AN (S113-65-852G) 000601 - 020501 SD1C2100456- SD132102173-105699
S11365852G	1	A (S113-65-852H) 020501 - 020801 *SD132105699-105735**
S11365852J	1	020801 - *SD132105735-**

» 65853A

INSULATOR

Part Number	Qty.	Specifications	Price
S11365853	1	GASOLINE

» 65860

GUARD(R),SIDE

Part Number	Qty.	Specifications	Price
SH6365860A	1	W/SIDE GUARD

» 65860A

HOLDER,TAIL GATE

Part Number	Qty.	Specifications	Price
S47P65762A	2	A (S47P-65-762B) ILLUST. NO.2 - 000401 SD1C2 -100351 SD132 -101944
S47P65762B	2	ILLUST. NO.2 000401 - SD1C2100351- SD132101944-
SH6965760A	2	AN (SH69-65-760B) ILLUST. NO.1 W/RR.GATE CHAIN - 990921 SD1C2 -100042 SD132 -100205
SH6965760B	2	ILLUST. NO.1 W/RR.GATE CHAIN 990921 - SD1C2100042- SD132100205-

» 65860Z

GUARD(L),SIDE

Part Number	Qty.	Specifications	Price
SH6365960A	1	W/SIDE GUARD

» 65890

PROTECTOR

Part Number	Qty.	Specifications	Price
898265890	1	W/WIRE NET

» 65912

RUBBER,SEAL

Part Number	Qty.	Specifications	Price
S11365912A	1	765X45 ILLUST. NO.1 GASOLINE
S11665912A	1	ILLUST. NO.1 DIESEL
S49K65991	2	ILLUST. NO.2 DIESEL

» 65941

STOPPER,SPARE TIRE

Part Number	Qty.	Specifications	Price
S15865941	1	W/O BOX

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907600512	1		€ 0,51

» 90780

BOLT

Part Number	Qty.	Specifications	Price
998010870	1

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860616	1		€ 2,41

» 90901

NUT

Part Number	Qty.	Specifications	Price
999010800	1		€ 2,31

» 90901

NUT

Part Number	Qty.	Specifications	Price
999420800	1		€ 2,53

» 90901

NUT

Part Number	Qty.	Specifications	Price
999461200	1		€ 2,83

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400800	1		€ 1,54

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
9WA600503	1

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650510	1		€ 0,24

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999520800	1		€ 0,49

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999521000	1		€ 0,51

» 99576

RING,STOP-'E'

Part Number	Qty.	Specifications	Price
995760600	1		€ 0,46

» 99576

RING,STOP-'E'

Part Number	Qty.	Specifications	Price
995760700	1		€ 0,61

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9HT600516	1

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812	1		€ 1,47

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960816	1		€ 1,92

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960820	1		€ 1,22

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961020	1		€ 2,43

» 99830

SCREW,FLANGE

Part Number	Qty.	Specifications	Price
998300610	1

» 99830

SCREW,FLANGE

Part Number	Qty.	Specifications	Price
998300630	1

» 99895

NUT,CLIP

Part Number	Qty.	Specifications	Price
998950500	1

Box(truck)(low Deck)
