Mazda E2000 SD,SR 1987-12 Mazda Cooling System 01/02 (-5609) 02/02 (5609-)

Mazda parts catalog

Parts > Mazda E2000 > 1987-12 > Diesel-engine Supplement > Cooling System(diesel)(4x4)

Search by part number:

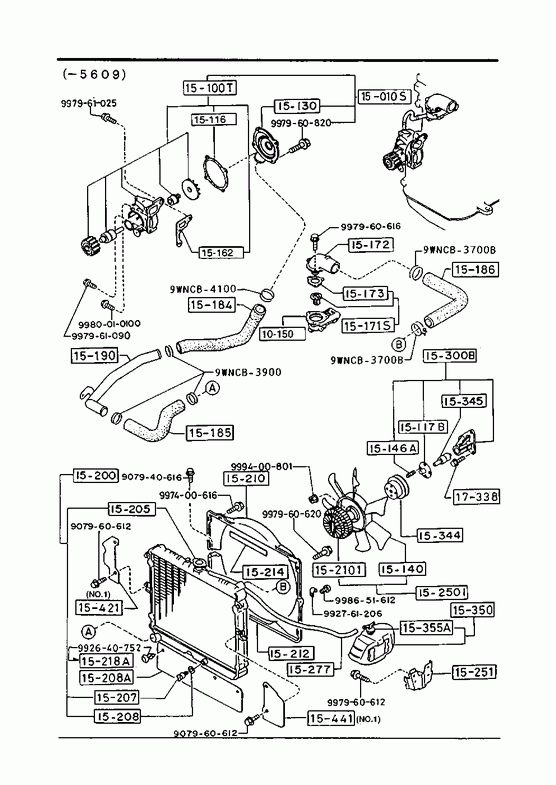

Cooling System(diesel)(4x4)

01/02 (-5609)
02/02 (5609-)

CASING,THERMOSTAT

Part Number	Qty.	Specifications	Price
R24110150A	1	- 880101 SR -600026	€ 53,42
R24110150B	1	880101 - 900101 SR****600026- SR1H32 -703370	€ 53,42
R24110150C	1	A (R241-10-150D) 900101 - 930601 SD1*32 -705205 SR1H32703370-724211	€ 53,42
R24110150D	1	930601 - SD1*32705205- SR1H32724211-	€ 55,58

» 15010S

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AG615010	1	ASBESTOS - 900101 SR1H32 -703370	€ 85,30
8AG615010A	1	NON ASBESTOS 900101 - SR1H32703370-	€ 85,30

» 15100T

HOUSING SET,BRG WATER PUMP

Part Number	Qty.	Specifications	Price
8AG215100	1	ASBESTOS - 900101 SR1H32 -703370
8AG215100A	1	NON ASBESTOS 900101 - 940513 SR1H32703370-728533	€ 148,67
8AG215100B	1	940513 - SR1H32728533-	€ 148,67

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
RF0115116	1	ASBESTOS - 900101 SR1H32 -703370	€ 4,10
RFB915116	1	NON ASBESTOS 900101 - SR1H32703370-	€ 3,60

» 15117B

HUB,W.PUMP PULLEY

Part Number	Qty.	Specifications	Price
R26515117	1	A (VS01-15-117) - 950101 SR1H32 -731358
VS0115117	1	950101 - SR1H32731358-	€ 20,82

» 15130

COVER,WATER PUMP

Part Number	Qty.	Specifications	Price
RF0315161B	1	A (RF03-15-161C) - 940513 SR1H32 -728533
RF0315161C	1	940513 - SR1H32728533-	€ 30,86

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
R26515141	1		€ 64,97

» 15146A

STUD,COOLING FAN

Part Number	Qty.	Specifications	Price
S21015146	4	A (S210-15-146A)	€ 2,01

» 15162

GASKET

Part Number	Qty.	Specifications	Price
RF9515162	1	ASBESTOS - 900201 SR1H32 -703854	€ 2,86
RFB915162	1	NON ASBESTOS 900201 - SR1H32703854-	€ 3,19

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AG115171	1	ASBESTOS - 900101 SR1H32 -703370	€ 21,17
8AG115171A	1	NON ASBESTOS 900101 - SR1H32703370-	€ 21,17

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
RF9515172	1		€ 27,34

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
RFB915173	1	NON ASBESTOS 900201 - 950701 SR1H32703854-733486	€ 3,42
S21115173	1	ASBESTOS - 900201 SR1H32 -703854	€ 3,42
SLM115173A	1	950701 - SR1H32733486-	€ 4,28

» 15184

HOSE,WATER

Part Number	Qty.	Specifications	Price
R26415184	1		€ 27,61

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
R26415185	1		€ 22,25

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
RF9515186	1		€ 15,15

» 15190

PIPE,WATER

Part Number	Qty.	Specifications	Price
R26415190B	1	AN (R264-15-190C)	€ 28,56

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
R26415200D	1	DENSO - 930422 SR1H32 -723736	€ 328,02
R26415200E	1	DENSO 930422 - 950609 SR1H32723736-733252	€ 328,02
RFK115200	1	A (R2L4-15-200) 950609 - SR1H32733252-	€ 328,02

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
FEG815205	1	DENSO - 950609 SR1H32 -733252	€ 13,67
VS0115205	1	DENSO 950609 - SR1H32733252-	€ 23,84

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
S21015316	1	NIHON DENSO	€ 6,90

» 15208

GASKET,DRAIN COCK

Part Number	Qty.	Specifications	Price
S21015204	1		€ 4,24

» 15208A

SEAL,RADIATOR LOW.

Part Number	Qty.	Specifications	Price
R26415431A	1	- 950509 SR1H32 -732902
RFE915431	1	950509 - SR1H32732902-	€ 18,20

» 15210

COWLING,RADIATOR-UP

Part Number	Qty.	Specifications	Price
R26415211B	1	- 950609 SR1H32 -733252

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
R26515150A	1	AN (R265-15-150B)	€ 256,50

» 15212

COWLING,RADIATOR-LWR

Part Number	Qty.	Specifications	Price
R26415212A	1	- 950609 SR1H32 -733252

» 15214

SEAL,AIR

Part Number	Qty.	Specifications	Price
RF0115214	1	- 950101 SR1H32 -731358

» 15218A

RIVET

Part Number	Qty.	Specifications	Price
RFB315218A	8	- 930422 SR1H32 -723736	€ 1,17

» 152501

FAN & FAN DRIVE

Part Number	Qty.	Specifications	Price
R26515140A	1	AN (R265-15-140B)	€ 355,24

» 15251

BRACKET,SUB TANK

Part Number	Qty.	Specifications	Price
RF0115261	1		€ 10,31

» 15277

HOSE,WATER SUB TANK

Part Number	Qty.	Specifications	Price
9932407380	1	951001 - SR1H32734449-	€ 6,01
RF0115277	1	- 951001 SR1H32 -734449	€ 5,70

» 15300B

BRACKET,FAN

Part Number	Qty.	Specifications	Price
R26515340	1	A (R265-15-340A) - 901201 SR1H32 -708179
R26515340A	1	901201 - SR1H32708179-	€ 111,24

» 15344

PULLEY,FAN

Part Number	Qty.	Specifications	Price
RF0115344	1	A (RF01-15-344A) - 891108 SR1H32 -702245	€ 18,12
RF0115344A	1	891108 - 931201 SR1H32702245-726218	€ 18,85
RFJ515344	1	931201 - SR1H32726218-	€ 28,48

» 15345

SHAFT,BEARING-FAN BRKT.

Part Number	Qty.	Specifications	Price
R26515345	1		€ 45,85

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
RF0115250A	1		€ 34,95

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
RF0123990A	1		€ 12,43

» 15421

SEAL(R),RADIATOR

Part Number	Qty.	Specifications	Price
FEN515421	1	ILLUST. NO.2 950609 - SR1H32733252-
R26415421A	1	ILLUST. NO.1 - 930422 SR1H32 -723736
RFF115421	1	ILLUST. NO.1 930422 - SR1H32723736-	€ 5,48

» 15441

SEAL(L),RADIATOR

Part Number	Qty.	Specifications	Price
R26415441A	1	ILLUST. NO.1 - 930422 SR1H32 -723736
RFB315441	1	ILLUST. NO.2 950609 - SR1H32733252-
VS0115441	1	ILLUST. NO.1 930422 - SR1H32723736-	€ 6,56

» 17338

BOLT

Part Number	Qty.	Specifications	Price
R50117338A	3		€ 3,08

» 90720

SCREW

Part Number	Qty.	Specifications	Price
997400616	1		€ 0,57

» 90780

BOLT

Part Number	Qty.	Specifications	Price
907960612	1		€ 2,61

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 99263

RIVET

Part Number	Qty.	Specifications	Price
992640752	1

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992761206	1		€ 2,12

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3700B	1		€ 3,12

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3900	1		€ 3,12

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB4100	1		€ 2,83

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960612	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960620	1		€ 1,18

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960820	1		€ 1,22

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961025	1		€ 3,14

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961090	1		€ 2,51

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
9980010100	1		€ 2,88

Cooling System(diesel)(4x4)
