Mazda E2000 SD,SR 1987-12 Mazda Fuel System

Mazda parts catalog

Parts > Mazda E2000 > 1987-12 > Diesel-engine Supplement > Fuel System(diesel)

Search by part number:

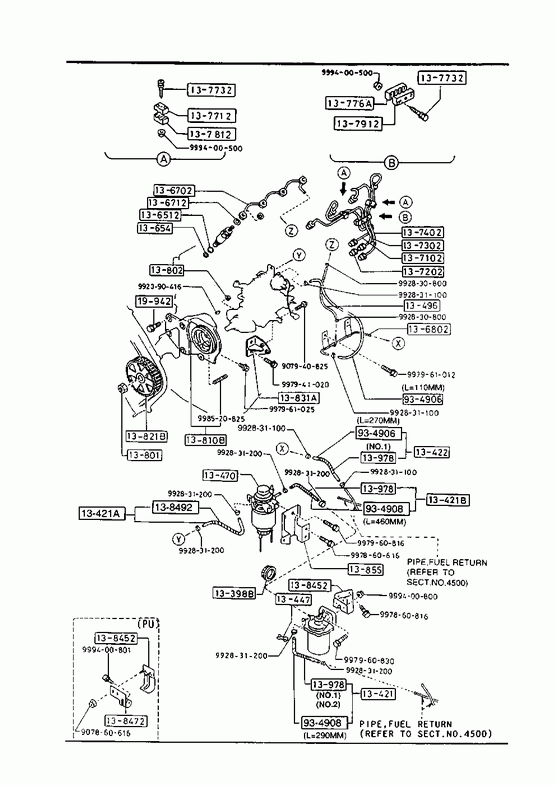

Fuel System(diesel)

PROTECTOR

Part Number	Qty.	Specifications	Price
F85313398	1	PICKUP

» 13421

HOSE,FUEL MAIN

Part Number	Qty.	Specifications	Price
R20713860	1	PICKUP
R20913860A	1	WAGON VAN	€ 12,08

» 13421A

HOSE,FUEL MAIN

Part Number	Qty.	Specifications	Price
RF0113870	1		€ 14,99

» 13421B

HOSE,FUEL

Part Number	Qty.	Specifications	Price
R20713865	1	PICKUP

» 13422

HOSE,FUEL RETURN

Part Number	Qty.	Specifications	Price
R20513875	1	PICKUP	€ 12,34
RF0113865A	1	WAGON VAN	€ 11,61

» 13447

CLIP

Part Number	Qty.	Specifications	Price
157013447	1	PICKUP	€ 2,75

» 13470

FILTER,FUEL

Part Number	Qty.	Specifications	Price
R20713850	1	AN (R207-13-850A) PICKUP - 901201 SD1*32 -701892 SR1H32 -708179	€ 76,69
R20713850A	1	AN (R207-13-850B) PICKUP 901201 - 910501 SD1*32701892-702434 SR1H32708179-710925
R20713850B	1	PICKUP 910501 - SD1*32702434- SR1H32710925-	€ 79,01
R20913850	1	AN (R209-13-850A) WAGON VAN - 901201 SD1*32 -701892 SR1H32 -708179
R20913850A	1	AN (R209-13-850B) WAGON VAN 901201 - 910501 SD1*32701892-702434 SR1H32708179-710925	€ 57,89
R20913850B	1	WAGON VAN 910501 - SD1*32702434- SR1H32710925-	€ 59,64

» 13496

HOSE,FUEL

Part Number	Qty.	Specifications	Price
RF0113675	1		€ 3,06

» 136512

WASHER,NOZZLE

Part Number	Qty.	Specifications	Price
063613651	4		€ 2,27

» 13654

GASKET

Part Number	Qty.	Specifications	Price
RF0313654	4	NON ASBESTOS	€ 2,38

» 136702

PIPE,FUEL LEAK

Part Number	Qty.	Specifications	Price
RF0113670A	1		€ 30,12

» 136712

GASKET,LEAK PIPE

Part Number	Qty.	Specifications	Price
145613671	4		€ 2,01

» 136802

PIPE,FUEL PUMP FEED

Part Number	Qty.	Specifications	Price
RF0113680B	1

» 137102

PIPE NO.1,INJECTION

Part Number	Qty.	Specifications	Price
R20113710A	1		€ 30,37

» 137202

PIPE,FUEL INJECTION

Part Number	Qty.	Specifications	Price
R20113720A	1		€ 31,12

» 137302

PIPE NO.3,INJECTION

Part Number	Qty.	Specifications	Price
R20113730	1		€ 31,12

» 137402

PIPE,FUEL INJECTION

Part Number	Qty.	Specifications	Price
R20113740	1		€ 31,12

» 137712

CLIP,PIPE

Part Number	Qty.	Specifications	Price
RF0113771	2		€ 3,05

» 137732

BOLT,CLIP

Part Number	Qty.	Specifications	Price
RF1113773A	4		€ 1,12

» 13776A

CLIP

Part Number	Qty.	Specifications	Price
RF0113776	1		€ 3,29

» 137812

CLIP,INJECTION PIPE

Part Number	Qty.	Specifications	Price
RF0113772	2		€ 2,26

» 137912

CLIP,INJECTION PIPE

Part Number	Qty.	Specifications	Price
RF0113775	1		€ 3,29

» 13800J

KEY,WOODRUFF

Part Number	Qty.	Specifications	Price
992390416	1		€ 2,05

» 13801

NUT

Part Number	Qty.	Specifications	Price
RF0113801	1		€ 2,18

» 13802

NUT,INJECTION PUMP

Part Number	Qty.	Specifications	Price
RF0113802	2		€ 2,93

» 13810B

BRACKET,F.I.PUMP

Part Number	Qty.	Specifications	Price
RF0113810A	1	- 960201 SD1*32 -708974 SR1H32 -735996	€ 107,05
RF0113810B	1	960201 - SD1*32708974- SR1H32735996-

» 13821B

PULLEY,F.I.PUMP

Part Number	Qty.	Specifications	Price
RF0113821D	1		€ 57,03

» 13831A

BRACKET,F.I.PUMP

Part Number	Qty.	Specifications	Price
RF0113830B	1		€ 8,49

» 138452

BRACKET,SEDIMENTER

Part Number	Qty.	Specifications	Price
R20713845	1	PICKUP
R20913845A	1	WAGON VAN	€ 10,03

» 138472

BRACKET,SEDIMENTER

Part Number	Qty.	Specifications	Price
R20713847	1	PICKUP

» 138492

PROTECTOR

Part Number	Qty.	Specifications	Price
RF0113872	1

» 13855

BRKT,FUEL FILTER

Part Number	Qty.	Specifications	Price
R20513856A	1	PICKUP
RF0113855A	1	WAGON VAN	€ 8,16

» 13978

PROTECTOR

Part Number	Qty.	Specifications	Price
R20713862	2	ILLUST. NO.2 PICKUP	€ 2,54
RF0113862	2	ILLUST. NO.1 WAGON VAN	€ 1,79

» 19942

BOLT BRACKET

Part Number	Qty.	Specifications	Price
387619942	1		€ 2,87

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907940625	1

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860616	1		€ 2,41

» 90857

STUD

Part Number	Qty.	Specifications	Price
998520825	1		€ 1,29

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400500	1		€ 0,73

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400800	1		€ 1,54

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 934906

HOSE

Part Number	Qty.	Specifications	Price
9934906750	1	L=1.75 CUT IT TO USE	€ 32,86

» 934908

HOSE

Part Number	Qty.	Specifications	Price
9934908750	1	L=1.75 CUT IT TO USE	€ 32,66

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860616	1		€ 1,54

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860816	1		€ 1,73

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992830800	1		€ 1,32

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831100	1		€ 0,80

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831200	1		€ 0,82

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960830	1		€ 1,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961012	1		€ 2,97

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961020	1		€ 2,43

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961025	1		€ 3,14

Fuel System(diesel)
