Mazda DEMIO DW 1998-05 Mazda Fuel Tank

Mazda parts catalog

Parts > Mazda DEMIO > 1998-05 > Chassis Piping & Fuel Tank > Fuel Tank

Search by part number:

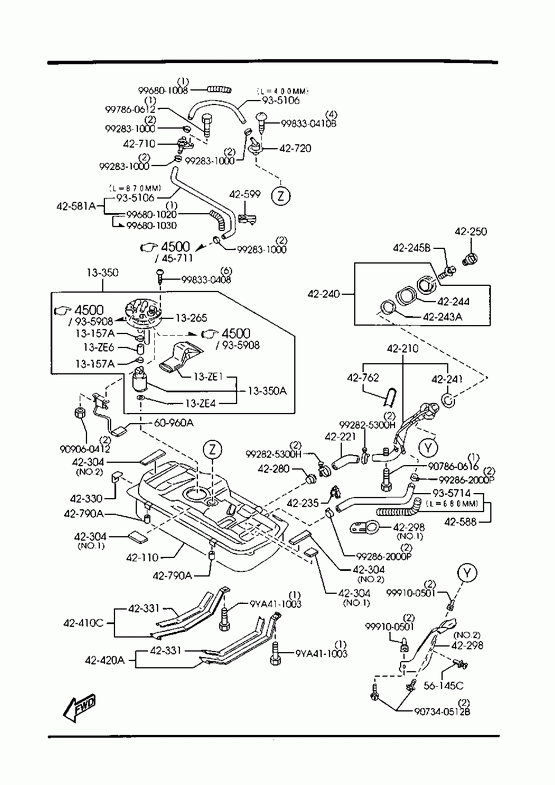

Fuel Tank

CLIP

Part Number	Qty.	Specifications	Price
AZ2813157	2		€ 3,64

» 13265

GASKET

Part Number	Qty.	Specifications	Price
B47560962	1		€ 7,03

» 13350

PUMP,FUEL

Part Number	Qty.	Specifications	Price
B33L1335Z	1	W/O FUEL EMPTY LAMP	€ 393,35
B33M1335Z	1	W/FUEL EMPTY LAMP	€ 397,13

» 13350A

PUMP,FUEL-SUB

Part Number	Qty.	Specifications	Price
B33N13350	1	DENSO 990501 - DW19138981-**	€ 289,29
B3C713350	1	DENSO - 990501 DW19 -138981**	€ 289,29

» 13ZE1

FILTER,FUEL PUMP

Part Number	Qty.	Specifications	Price
B33N13ZE1	1	DENSO 990501 - DW19138981-**	€ 44,05
B3C713ZE1	1	KURATA/DENSO - 990501 DW19 -138981**	€ 19,66

» 13ZE4

WASHER,LOCK-PUMP FILTER

Part Number	Qty.	Specifications	Price
FEH213ZE4	1	DENSO	€ 3,07

» 13ZE6

HOSE,FUEL PUMP-IN TANK

Part Number	Qty.	Specifications	Price
JE1513ZE6	1	AN (KL19-13-ZE6) - 980901 DW19 -110361**	€ 14,43
KL1913ZE6	1	980901 - DW19110361-**	€ 14,33

» 42110

TANK,FUEL

Part Number	Qty.	Specifications	Price
DB5042110B	1	AN (DB50-42-110C) - 990901 DW19 -149925**	€ 234,95
DB5042110C	1	AN (DB50-42-110D) 990901 - 991201 DW19149925-155127**
DB5042110D	1	991201 - DW19155127-**	€ 244,44

» 42210

PIPE,FILLER

Part Number	Qty.	Specifications	Price
DC1842210	1		€ 132,67

» 42221

HOSE,FILLER

Part Number	Qty.	Specifications	Price
D06142231A	1		€ 39,25

» 42235

CLIP.BREATHER HOSE

Part Number	Qty.	Specifications	Price
D06142235	1		€ 2,31

» 42240

COVER,DUST

Part Number	Qty.	Specifications	Price
B01W42240A	1		€ 26,13

» 42241

GASKET,FILLER PIPE

Part Number	Qty.	Specifications	Price
B45542366	1		€ 3,40

» 42243A

GASKET'A',DUST COVER

Part Number	Qty.	Specifications	Price
B01W42243	1		€ 2,83

» 42244

GASKET'B',DUST COVER

Part Number	Qty.	Specifications	Price
BC1D42244	1		€ 9,73

» 42245B

BOLT,DUST COVER

Part Number	Qty.	Specifications	Price
T00142245	2		€ 1,37

» 42250

CAP,FILLER

Part Number	Qty.	Specifications	Price
F04442250	1	A (F044-42-250A)	€ 21,03

» 42280

VALVE,NON RETURN

Part Number	Qty.	Specifications	Price
D06142270	1		€ 16,04

» 42298

PROTECTOR,FILLER HOSE

Part Number	Qty.	Specifications	Price
D06142291	1	ILLUST. NO.1	€ 7,75
DA9742298A	1	ILLUST. NO.2	€ 26,85

» 42304

PAD,FUEL TANK

Part Number	Qty.	Specifications	Price
B45542761	2	80X70X8 ILLUST. NO.1	€ 2,07
D06142761	2	ILLUST. NO.2	€ 9,89

» 42330

BRACKET,TANK

Part Number	Qty.	Specifications	Price
D06142117	1		€ 2,74

» 42331

SHEET

Part Number	Qty.	Specifications	Price
D06142715	2		€ 7,97

» 42410C

BAND(R),TANK FIX.

Part Number	Qty.	Specifications	Price
D06142710B	1		€ 27,36

» 42420A

BAND(L),TANK FIX.

Part Number	Qty.	Specifications	Price
D20142720	1		€ 27,36

» 42581A

HOSE,FUEL

Part Number	Qty.	Specifications	Price
D20142560	1	- 990901 DW19 -149925**
D20142560A	1	990901 - DW19149925-**	€ 20,83

» 42588

HOSE,VENT

Part Number	Qty.	Specifications	Price
D0614223X	1	AN (D061-42-23XA) - 991001 DW19 -151282**	€ 38,37
D0614223XA	1	AN (D061-42-23XB) 991001 - DW19151282-**	€ 38,37

» 42599

CLIP,HOSE

Part Number	Qty.	Specifications	Price
D06142553A	1		€ 2,31

» 42710

VALVE,CHECK

Part Number	Qty.	Specifications	Price
GA5R42910	1		€ 54,99

» 42720

VALVE,FUEL VAPOR.

Part Number	Qty.	Specifications	Price
BC1M42980A	1		€ 31,26

» 42762

PAD,FUEL FILLER PIPE

Part Number	Qty.	Specifications	Price
D06142762	1		€ 2,68

» 42790A

PROTECTOR,FUEL TANK

Part Number	Qty.	Specifications	Price
D20142791	2		€ 1,38

» 56145C

CLIP,MUD GUARD

Part Number	Qty.	Specifications	Price
B09251833	1	- 980701 DW19 -104031**	€ 1,54
BC1D56145	1	980701 - DW19104031-**	€ 0,64

» 60960A

GAUGE,FUEL TANK

Part Number	Qty.	Specifications	Price
DA9860960	1	W/O FUEL EMPTY LAMP	€ 67,00
DB0660960A	1	W/FUEL EMPTY LAMP	€ 70,40

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996801008	1		€ 2,40

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996801020	1

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996801030	1		€ 2,08

» 90720

SCREW

Part Number	Qty.	Specifications	Price
907340512B	1		€ 0,86

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330408	1		€ 0,55

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330410B	1		€ 0,38

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860616	1		€ 2,41

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909060412	1		€ 2,14

» 935106

HOSE

Part Number	Qty.	Specifications	Price
9935106999	1	L=1M CUT IT TO USE	€ 14,42

» 935714

HOSE

Part Number	Qty.	Specifications	Price
9935714999	1	L=1M CUT IT TO USE	€ 34,85

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992825300H	1		€ 1,64

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862000P	1		€ 2,91

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9YA411003	1

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501	1		€ 1,33
