Mazda DEMIO DW 1998-05 Mazda Cooling System

Mazda parts catalog

Parts > Mazda DEMIO > 1998-05 > Gasoline-engine 4-cylinder Supplement > Cooling System

Search by part number:

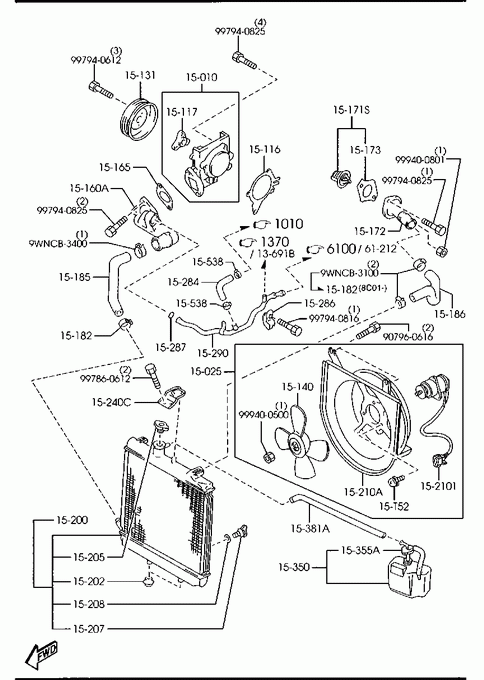

Cooling System

PUMP,WATER

Part Number	Qty.	Specifications	Price
B3C715010	1	AN (B3C7-15-010A)	€ 92,83

» 15025

FAN,ELECTRIC

Part Number	Qty.	Specifications	Price
B31R15025A	1		€ 461,98

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
B62115116A	1	NON ASBESTOS	€ 4,23

» 15117

BOSS,W.PUMP PULLEY

Part Number	Qty.	Specifications	Price
E30115117	1		€ 16,43

» 15131

PULLEY,WATER PUMP

Part Number	Qty.	Specifications	Price
B3C715131	1		€ 42,42

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
E35815140	1		€ 41,32

» 15160A

INLET,WATER PUMP

Part Number	Qty.	Specifications	Price
B3C715161	1		€ 38,59

» 15165

GASKET,W.PUMP INLET

Part Number	Qty.	Specifications	Price
B62115165	1	NON ASBESTOS	€ 2,90

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8ABB15171	1	- 990501 DW19 -138981**	€ 20,96
8ABB15171A	1	990501 - DW19138981-**	€ 20,96

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
B5C715172A	1		€ 21,48

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
B62115173	1	NON ASBESTOS	€ 5,10

» 15182

CLAMP,WATER HOSE

Part Number	Qty.	Specifications	Price
B3C715182	1	A (B3C7-15-182A) - 981201 DW19 -121558**	€ 4,49
B3C715182A	3	981201 - DW19121558-**	€ 4,71

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
B5C715185A	1		€ 10,68

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
B3C715186	1		€ 13,01

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
B5C715200A	1	A (B5C7-15-200B)	€ 212,86

» 15202

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
E5D315202B	2	AN (E5D3-15-202C) - 990801 DW19 -147893**	€ 8,81
E5D315202C	2	AN (E5D3-15-202D) 990801 - 990901 DW19147893-149925**
E5D315202D	2	DENSO 990901 - DW19149925-**	€ 9,17

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
B3C715205	1	DENSO	€ 14,23

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
G60715316	1	USA DENSO	€ 6,90

» 15208

GASKET,DRAIN COCK

Part Number	Qty.	Specifications	Price
S21015204	1		€ 4,24

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
B31R15150	1		€ 178,01

» 15210A

COWLING,RADIATOR

Part Number	Qty.	Specifications	Price
B31R15210A	1		€ 92,84

» 15240C

BRACKET(R),RADIATOR

Part Number	Qty.	Specifications	Price
B5C715240	1		€ 31,81

» 15284

HOSE,WATER

Part Number	Qty.	Specifications	Price
B63015261	1		€ 4,52

» 15286

CLIP,BYPASS PIPE

Part Number	Qty.	Specifications	Price
B3C715286	1		€ 3,07

» 15287

RING,'O'-WATER BYPASS

Part Number	Qty.	Specifications	Price
E30115287	1		€ 1,97

» 15290

PIPE,BYPASS

Part Number	Qty.	Specifications	Price
B3C715290A	1		€ 24,82

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
B3C715350	1		€ 34,98

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
B3C715355	1		€ 12,33

» 15381A

HOSE,SUB TANK

Part Number	Qty.	Specifications	Price
B5C715381	1		€ 9,90

» 15538

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B6BF15538	2		€ 2,10

» 15T52

SCREW

Part Number	Qty.	Specifications	Price
FE6815T52	3		€ 0,66

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907960616	1		€ 2,37

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400500	1		€ 0,73

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3100	1		€ 4,71

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3400	1		€ 4,02

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940816	1		€ 0,79

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940825	1		€ 1,57
