Mazda CX-7 ER 2007-05 Mazda Automatic Transmission Clutches & Planetary Gears

Mazda parts catalog

Parts > Mazda CX-7 > 2007-05 > Gasoline-engine 4-cylinder Transmission > Automatic Transmission Clutches & Planetary Gears

Search by part number:

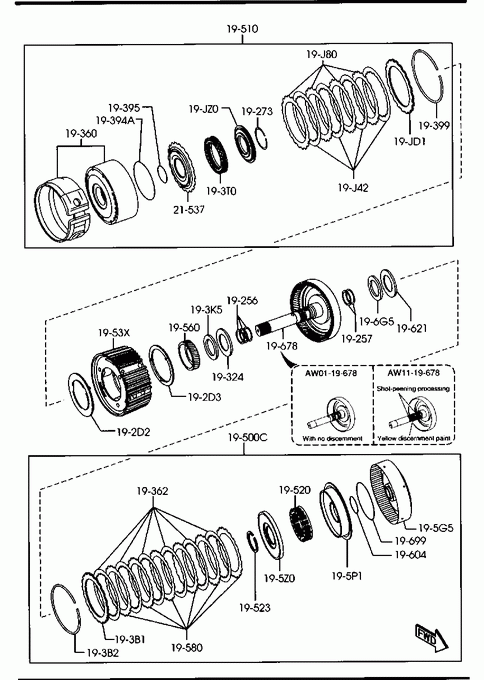

Automatic Transmission Clutches & Planetary Gears

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
AW0119256	3

» 19257

RING,SEAL

Part Number	Qty.	Specifications	Price
AW0119257	2

» 19273

RING,SNAP

Part Number	Qty.	Specifications	Price
AW0119159	1	T=1.5MM

» 192D2

WASHER,THRUST

Part Number	Qty.	Specifications	Price
AW10192D2	1

» 192D3

WASHER,THRUST

Part Number	Qty.	Specifications	Price
AW10192D3	1

» 19324

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
AW0119324	1

» 19360

BAND,BRAKE

Part Number	Qty.	Specifications	Price
AW0219360	1

» 19362

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
AW0119362	7	T=1.8MM

» 19394A

RING,'O'

Part Number	Qty.	Specifications	Price
AW0119394	1

» 19395

RING,'O'

Part Number	Qty.	Specifications	Price
AW0119395	1

» 19399

RING,SNAP

Part Number	Qty.	Specifications	Price
AW0119399	1	T=2.5MM

» 193B1

RING,SNAP

Part Number	Qty.	Specifications	Price
AW01193B1	1	T=2.9MM
AW01193B2	1	T=3.0MM
AW01193B3	1	T=3.1MM
AW01193B4	1	T=3.2MM
AW01193B5	1	T=3.3MM
AW01193B6	1	T=3.4MM
AW01193B7	1	T=3.5MM
AW01193B8	1	T=3.15MM
AW01193B9	1	T=3.25MM
AW01193C5	1	T=3.35MM
AW01193C6	1	T=2.8MM

» 193B2

RING,SNAP

Part Number	Qty.	Specifications	Price
AW0119137	1	T=1.6MM

» 193K5

BEARING,NEEDLE THRUST

Part Number	Qty.	Specifications	Price
AW01193K5	1

» 193T0

RETAINER & SPRING,BRAKE

Part Number	Qty.	Specifications	Price
AW02193T0	1

» 19500C

CLUTCH

Part Number	Qty.	Specifications	Price
AW1019500A	1

» 19510

CLUTCH,REAR

Part Number	Qty.	Specifications	Price
AW1019510A	1

» 19520

RETAINER,SPRING-CLU.ONE W

Part Number	Qty.	Specifications	Price
AW0219520	1

» 19523

RING,SNAP

Part Number	Qty.	Specifications	Price
AW0119523	1	T=1.5MM

» 1953X

GEAR,FRONT & REAR

Part Number	Qty.	Specifications	Price
AW101953X	1

» 19560

GEAR,SUN

Part Number	Qty.	Specifications	Price
AW0119H85	1

» 19580

FLANGE

Part Number	Qty.	Specifications	Price
AW0119580	7

» 195G5

DRUM,FORWARD NO.2

Part Number	Qty.	Specifications	Price
AW10195G5	1

» 195P1

PISTON,FORWARD CLUTCH

Part Number	Qty.	Specifications	Price
AW02195P1	1

» 195Z0

PLATE,SEAL FORWARD

Part Number	Qty.	Specifications	Price
AW02195Z0	1

» 19604

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
AW0119604	1

» 19621

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
AW0119304	1

» 19678

SHAFT,INPUT

Part Number	Qty.	Specifications	Price
AW0119678	1	WITH NO PAINT SELECTIVE USE
AW1119678	1	WITH YELLOW PAINT SELECTIVE USE

» 19699

RING,'O'

Part Number	Qty.	Specifications	Price
AW0119699	1

» 196G5

BEARING,NEEDLE ROLLER

Part Number	Qty.	Specifications	Price
AW02196G5	1

» 19J42

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
AW1019J42	4

» 19J80

PISTON,DRIVEN

Part Number	Qty.	Specifications	Price
AW0119J80	4	T=2.3MM

» 19JD1

RING,SNAP

Part Number	Qty.	Specifications	Price
AW0119JD1	1	T=2.8MM
AW0119JD2	1	T=2.9MM
AW0119JD3	1	T=3.0MM
AW0119JD4	1	T=3.1MM
AW0119JD5	1	T=3.2MM
AW0119JD6	1	T=3.3MM
AW0119JD7	1	T=3.4MM
AW0119JD8	1	T=3.5MM
AW0119JD9	1	T=2.85MM
AW0119JE1	1	T=2.95MM
AW0119JE2	1	T=3.05MM

» 19JZ0

BALANCER

Part Number	Qty.	Specifications	Price
AW0119JZ0	1

» 21537

PISTON

Part Number	Qty.	Specifications	Price
AW0221537	1
