Mazda CX-7 ER 2007-05 Mazda Manual Transmission Gears 01/03 02/03 03/03

Mazda parts catalog

Parts > Mazda CX-7 > 2007-05 > Gasoline-engine 4-cylinder Transmission > Manual Transmission Gears

Search by part number:

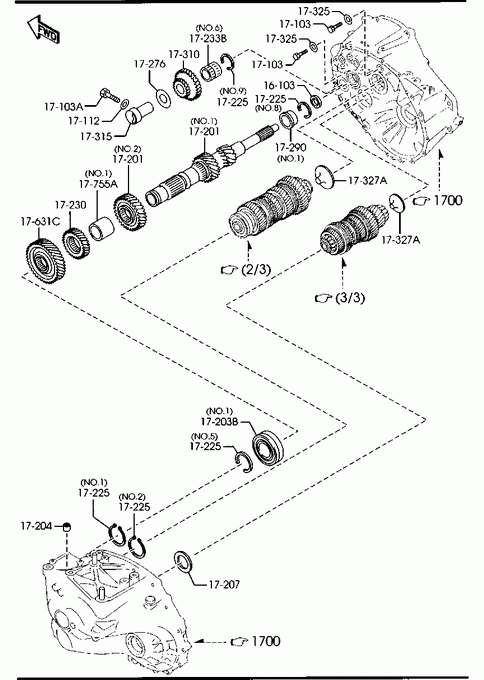

Manual Transmission Gears

SEAL,OIL-CLUTCH FRT COVER

Part Number	Qty.	Specifications	Price
A60116103	1		€ 6,46

» 17103

BOLT

Part Number	Qty.	Specifications	Price
A60217103	2

» 17103A

BOLT

Part Number	Qty.	Specifications	Price
A60417103	1

» 17112

GASKET

Part Number	Qty.	Specifications	Price
A60217117	1

» 17201

GEAR,MAIN DRIVE

Part Number	Qty.	Specifications	Price
A61017210	1	ILLUST. NO.2	€ 114,83
A61217201	1	ILLUST. NO.1

» 17203B

BEARING,BALL

Part Number	Qty.	Specifications	Price
A60117206	1	ILLUST. NO.1	€ 103,89
A60217206	1	ILLUST. NO.2	€ 97,12

» 17204

BEARING,BALL-MAIN SHAFT

Part Number	Qty.	Specifications	Price
A60117204	1

» 17207

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
A60117207	1	T=1.8MM
A60217207	1	T=1.85MM
A60317207	1	T=1.9MM
A60417207	1	T=1.95MM
A60517207	1	T=2.0MM
A60617207	1	T=2.05MM
A60717207	1	T=2.1MM
A60817207	1	T=2.15MM
A60917207	1	T=2.2MM
A61017207	1	T=2.25MM
A61117207	1	T=2.3MM
A61217207	1	T=2.35MM
A61317207	1	T=2.4MM
A61417207	1	T=2.45MM
A61517207	1	T=2.5MM
A61617207	1	T=2.55MM
A61717207	1	T=2.6MM
A61817207	1	T=2.65MM

» 17225

RING,SNAP

Part Number	Qty.	Specifications	Price
A60117225	1	ILLUST. NO.1	€ 12,16
A60217225	1	ILLUST. NO.2	€ 12,16
A60317225	1	ILLUST. NO.3	€ 5,97
A60417225	1	T=2.25MM ILLUST. NO.4
A60517225	1	T=2.3MM ILLUST. NO.4
A60617225	1	T=2.35MM ILLUST. NO.4
A60717225	1	T=2.4MM ILLUST. NO.4
A60817225	1	T=2.45MM ILLUST. NO.4
A60917225	1	T=2.5MM ILLUST. NO.4
A61017225	1	T=2.55MM ILLUST. NO.4
A61117225	1	T=2.6MM ILLUST. NO.4
A61217225	1	T=1.8MM ILLUST. NO.5	€ 5,97
A61417225	2	T=1.9MM ILLUST. NO.6
A61517225	2	T=1.95MM ILLUST. NO.6	€ 5,97
A61617225	2	T=2.0MM ILLUST. NO.6	€ 5,97
A61717225	2	T=2.05MM ILLUST. NO.6	€ 5,97
A61817225	2	T=2.1MM ILLUST. NO.6	€ 5,97
A61917225	2	T=2.15MM ILLUST. NO.6
A62017225	1	T=2.2MM ILLUST. NO.6
A62117225	1	T=2.25MM ILLUST. NO.6
A62217225	1	T=2.3MM ILLUST. NO.6
A62317225	1	T=2.35MM ILLUST. NO.6
A62417225	1	T=2.4MM ILLUST. NO.6
A62517225	1	T=2.45MM ILLUST. NO.6
A62617225	1	T=2.5MM ILLUST. NO.6
A62717225	2	T=2.25MM ILLUST. NO.7	€ 4,98
A62817225	2	T=2.3MM ILLUST. NO.7
A62917225	2	T=2.35MM ILLUST. NO.7
A63017225	2	T=2.4MM ILLUST. NO.7
A63117225	2	T=2.45MM ILLUST. NO.7	€ 5,97
A63217225	2	T=2.5MM ILLUST. NO.7	€ 5,97
A63317225	1	T=1.5MM ILLUST. NO.8	€ 7,00
A63417225	1	T=2.25MM ILLUST. NO.9
A63517225	1	T=2.30MM ILLUST. NO.9	€ 5,97
A63617225	1	T=2.35MM ILLUST. NO.9
A63717225	1	T=2.40MM ILLUST. NO.9	€ 5,97
A63817225	1	T=2.45MM ILLUST. NO.9
A63917225	1	T=2.50MM ILLUST. NO.9	€ 5,97
A64017225	1	T=2.55MM ILLUST. NO.9	€ 5,97
A64117225	1	T=2.60MM ILLUST. NO.9

» 17230

GEAR,3RD

Part Number	Qty.	Specifications	Price
A61017230	1		€ 70,74

» 17233B

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
A60117233	2	ILLUST. NO.1	€ 41,77
A60217233	1	ILLUST. NO.2	€ 44,42
A60317233	1	ILLUST. NO.3	€ 47,14
A60417233	2	ILLUST. NO.4	€ 43,06
A60517233	1	ILLUST. NO.5	€ 47,14
A60617233	1	ILLUST. NO.6

» 17276

WASHER,THRUST

Part Number	Qty.	Specifications	Price
A60117276	1

» 17290

BEARING,TAPER

Part Number	Qty.	Specifications	Price
A60117290	1	ILLUST. NO.1	€ 74,30
A60217290	1	ILLUST. NO.2	€ 118,02

» 17310

GEAR,REVERSE IDLE

Part Number	Qty.	Specifications	Price
A61217311	1

» 17315

SHAFT,REV. IDLE GEAR

Part Number	Qty.	Specifications	Price
A60117315	1

» 17325

COVER,BEARING

Part Number	Qty.	Specifications	Price
A60117325	2

» 17327A

FUNNEL

Part Number	Qty.	Specifications	Price
A60117327	2

» 17631C

GEAR,6TH

Part Number	Qty.	Specifications	Price
A61017631	1		€ 112,73

» 17755A

SPACER

Part Number	Qty.	Specifications	Price
A60117754	1	ILLUST. NO.1	€ 10,33
A60217754	1	ILLUST. NO.2
A60317754	2	ILLUST. NO.3	€ 2,94
A60417754	2	ILLUST. NO.4	€ 2,94
