Air Conditioner 01/02 (PIPE & CONDENSER) 02/02 (CLIP & BRACKET)

Air Conditioner |

Mazda parts catalog

Parts > Mazda B2600 > 1996-03 > Body Interior Trim > Air Conditioner

Search by part number:

Air Conditioner(gasoline)

01/02 (PIPE & CONDENSER)

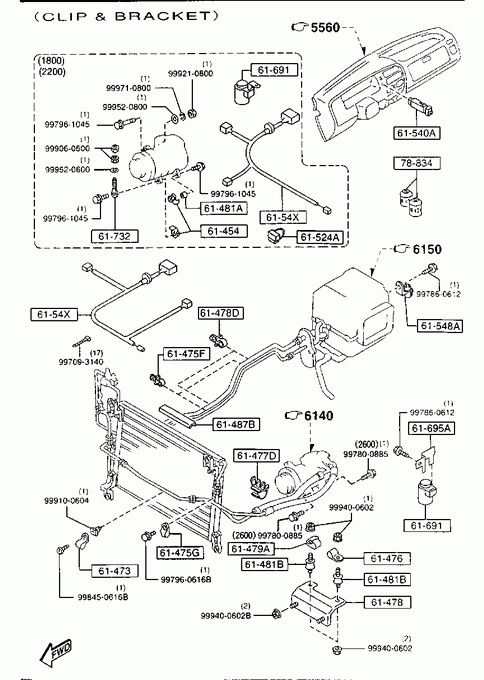

02/02 (CLIP & BRACKET)

NUT,COMPRESSOR

Part Number	Qty.	Specifications	Price
UB8361454	2	1800 2200

» 61473

CLIP,PIPE

Part Number	Qty.	Specifications	Price
UG5261473	1

» 61475F

CLIP

Part Number	Qty.	Specifications	Price
UB8261475	2		€ 2,09

» 61475G

CLIP

Part Number	Qty.	Specifications	Price
UB8361475	1

» 61476

CLIP

Part Number	Qty.	Specifications	Price
N00161476A	1

» 61477D

CLIP

Part Number	Qty.	Specifications	Price
UB8461475	1	(2200>W/O EGI) - 961101 *UF0 -108724

» 61478

BRACKET

Part Number	Qty.	Specifications	Price
U01161471	1

» 61478D

CLIP

Part Number	Qty.	Specifications	Price
UB8261476	2

» 61479A

CLIP

Part Number	Qty.	Specifications	Price
B11161479	1

» 61481A

SPACER

Part Number	Qty.	Specifications	Price
UB8261477	1	2200 1800

» 61481B

RUBBER,INSULATOR

Part Number	Qty.	Specifications	Price
FD0461481	2		€ 7,53

» 61487B

PROTECTOR

Part Number	Qty.	Specifications	Price
UB8261488	1

» 61524A

CONNECTOR,SHORT

Part Number	Qty.	Specifications	Price
856261524	1	1800 2200 - 961101 *UF0 -108724	€ 6,99

» 61540A

SWITCH,AIR CON.

Part Number	Qty.	Specifications	Price
BC1M61530A	1		€ 63,30

» 61548A

RELAY

Part Number	Qty.	Specifications	Price
UB8261548	1	(2200>W/O EGI)

» 6154X

HARNESS,COMPRESSOR-COOLER

Part Number	Qty.	Specifications	Price
UG526154XC	1	2600
UG796154XC	1	(2200>W/EGI)
UG876154XC	1	(2200>W/O EGI) 1800

» 61691

RELAY

Part Number	Qty.	Specifications	Price
FB0161691	1	(W/EGI>2600)	€ 25,13
UB8261549	1	W/O EGI	€ 31,27
UG5061691	1	(W/EGI>2200) 960601 - *UF0103639-
UG7961690	1	A (UG50-61-691) (W/EGI>2200) - 960601 *UF0 -103639

» 61695A

BRACKET,RELAY

Part Number	Qty.	Specifications	Price
UE5361695	1	2600 2500	€ 9,21

» 61732

BOLT

Part Number	Qty.	Specifications	Price
H20061732	1	2200 1800

» 78834

REFRIGERANT DRUM

Part Number	Qty.	Specifications	Price
LB4061R13	1	250G
W32361R13	1	300G

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998450616B	1		€ 1,62

» 90901

NUT

Part Number	Qty.	Specifications	Price
999060600	1		€ 0,57

» 90901

NUT

Part Number	Qty.	Specifications	Price
999210800	1		€ 2,03

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400602	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400602B	1		€ 1,28

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999520600	1		€ 0,51

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999520800	1		€ 0,49

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093140	1		€ 3,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997800885	1		€ 2,07

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616B	1		€ 0,48

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961045	1		€ 2,52

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100604	1		€ 1,89

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710800	1		€ 1,18

Air Conditioner(gasoline)
