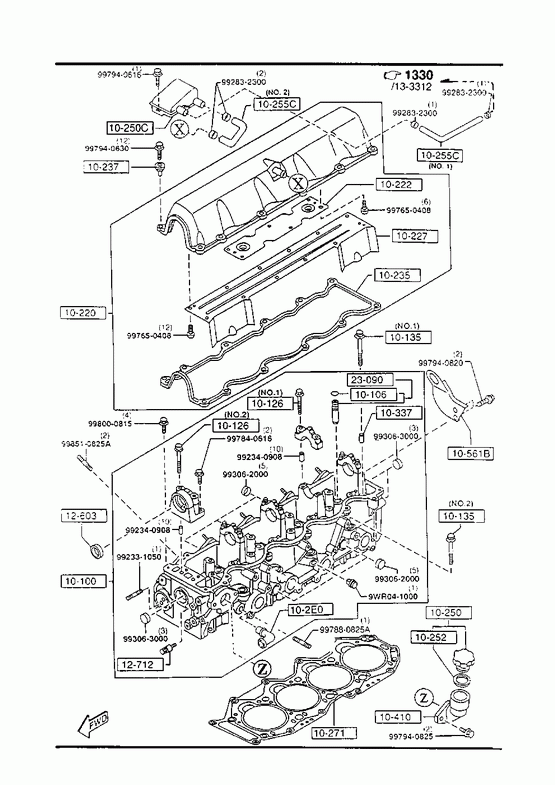

Cylinder Head & Cover(diesel)
-
» 10100 HEAD,CYLINDER Part Number Qty. Specifications Price WL3110100D 1 A (WL31-10-100E)
- 970201
UF*0** -112182€ 1202,64 WL3110100E 1 A (WL31-10-100F)
970201 - 971101
UF*0**112182-126033€ 1202,64 WL3110100F 1 A (WL31-10-100H)
971101 - 981218
UF*0**126033-146865€ 1202,64 WL3110100H 1 981218 -
UF*0**146865-€ 1226,69 » 10106 CLIP,VALVE GUIDE Part Number Qty. Specifications Price 024910106 12 € 0,40 » 10126 BOLT,CAMSHAFT CAP Part Number Qty. Specifications Price KL0210126 8 ILLUST. NO.1 € 2,49 WL0110127 2 ILLUST. NO.2 € 2,73 » 10135 BOLT,CYLINDER HEAD Part Number Qty. Specifications Price PN1110135A 10 AN (PN11-10-135B)
ILLUST. NO.1
- 970101
UF*0** -110742€ 5,98 PN1110135B 10 A (RF01-10-135A)
ILLUST. NO.1
970101 -
UF*0**110742-€ 6,22 WL0110135 8 ILLUST. NO.2 € 10,11 » 10220 COVER,CYLINDER HEAD Part Number Qty. Specifications Price WL0110220C 1 € 201,75 » 10222 PLATE,OIL BAFFLE Part Number Qty. Specifications Price WL0110222A 1 € 11,65 » 10227 PLATE,BAFFLE Part Number Qty. Specifications Price WL0110223 1 € 20,72 » 10235 GASKET,HEAD COVER Part Number Qty. Specifications Price WL0110235B 1 € 13,50 » 10237 WASHER,SEALING-HEAD COVER Part Number Qty. Specifications Price WL0110237 12 € 3,20 » 10250 CAP,OIL FILLER Part Number Qty. Specifications Price 045310250A 1 € 10,63 » 10250C PIPE,BREATHER Part Number Qty. Specifications Price WL3110490 1 € 118,18 » 10252 GASKET Part Number Qty. Specifications Price 032410252 1 € 2,33 » 10255C HOSE,BREATHER Part Number Qty. Specifications Price WL3110255A 1 ILLUST. NO.1 € 16,75 WL3210255 1 ILLUST. NO.2 » 10271 GASKET,CYLINDER HEAD Part Number Qty. Specifications Price WL0110271A 1 T=0.98MM-1.08MM
- 980201
UF*0** -130286€ 62,08 WL0110271B 1 T=0.99MM-1.07MM
980201 -
UF*0**130286-€ 62,08 » 102E0 PIPE,WATER-CYL. HEAD Part Number Qty. Specifications Price KJ0113171C 1 € 13,83 » 10337 PIPE,SEAL Part Number Qty. Specifications Price TF0110107 5 € 3,52 » 10410 PIPE,OIL FILLER Part Number Qty. Specifications Price WL0110267 1 € 26,58 » 10561B HANGER,ENGINE-REAR Part Number Qty. Specifications Price WL1110566A 1 € 14,57 » 12603 CAP,SEAL-OIL Part Number Qty. Specifications Price RF0312603A 1 € 6,17 » 12712 SET PIN,SPRING Part Number Qty. Specifications Price RF0312712A 1 € 6,15 » 23090 GUIDE,VALVE Part Number Qty. Specifications Price WLY110280 12 970201 -
UF*0**112182-€ 7,60 WLY210280 12 - 970201
UF*0** -112182€ 7,31 » 90857 STUD Part Number Qty. Specifications Price 997880825A 1 € 2,69 » 90857 STUD Part Number Qty. Specifications Price 998510825A 1 € 1,46 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997650408 1 € 0,58 » 99234 PIN,TUBULAR Part Number Qty. Specifications Price 992340908 1 € 2,06 » 99246 PIN,DOWEL Part Number Qty. Specifications Price 992331050 1 € 1,35 » 99281 CLAMP,HOSE Part Number Qty. Specifications Price 992832300 1 € 2,38 » 99305 PLUG Part Number Qty. Specifications Price 993053000 1 » 99306 CAP,SEALING Part Number Qty. Specifications Price 993062000 1 € 1,33 » 99306 CAP,SEALING Part Number Qty. Specifications Price 993063000 1 € 1,90 » 99503 PLUG,HEXAGON SOCKET Part Number Qty. Specifications Price 9WR041000 1 € 2,97 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997840616 1 € 1,50 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940616 1 € 1,28 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940630 1 € 1,18 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940820 1 € 1,24 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940825 1 € 1,57
